Specifications
Pneumatic small box packing machine PLCPneumatic small box packing machine PLC

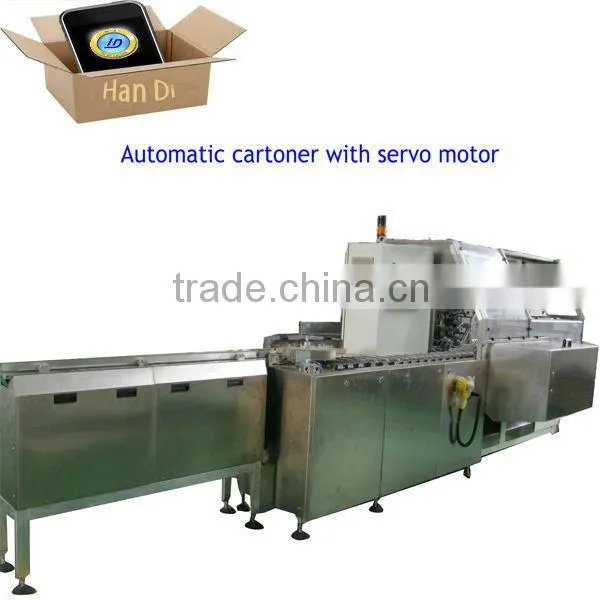

TH260 series high speed cartoning machine (servo motor& disc feeding) Automatic cartoner with servo motor
It is widely used in package field, such as pharmaceuticals, food, daily chemical and other industries, which can function independently and also can be joined to the whole packaging line.
It is mainly composed of the following parts:master driving section, four-section servo motor conveyor, disc feeding, carton-transferring unit, carton-suction unit, product-push unit, coding unit, carton-pressing unit, glue sprayer (carton flaps folding unit), discharge unit, electric control unit and pneumatic unit. Under coordinated work of the above parts, the product packing procedure is completed perfectly.
Specific operation principles are as follows:
Products flow onto the in-feeding conveyor from upstream machine, and were put to the transferring shoes by four-section servo motor conveyor.
When the disc feeding under the control of photoelectric switch detect that the products are ready,the carton-suction rod begins to suck carton,meanwhile carton-pull rod begins to pull the carton,and then the carton-folding rod unfold the carton,finally the carton is successfully put on the carton guide rail. The carton –suction device has a protection function -- no product entering, no carton suction .The product pusher unit boasts the protection function -- no pushing when there is product but no cartons.
The filled cartons will undergo flap-folding, coding, glue spraying and closing with the cooperation of the workbench closing unit. Later they will be tightened by the discharge conveyor and then transferred to the case packing platform.
Its visible speed is controlled by variable frequency and programmable control unit and the packing procedures are tracked by photo eyes. This machine boasts safety devices such as overloading protection, electricity leakage protection and failure alarm.
This user-friendly machine adopts world famous control elements with touch screen in both Chinese and English.
This compact equipment operates simply and reliably,boasting fast packaging speed,stable packaging quality,as well as smooth and beautiful packaging appearance.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
