Home > Packaging & Printing > Packing Machinery > Packing Line > Servo Motor Carton Packing Machine From China

Servo Motor Carton Packing Machine From China

Name: Servo Motor Carton Packing Machine From China
Brand: Han Di
SKU: 117871825

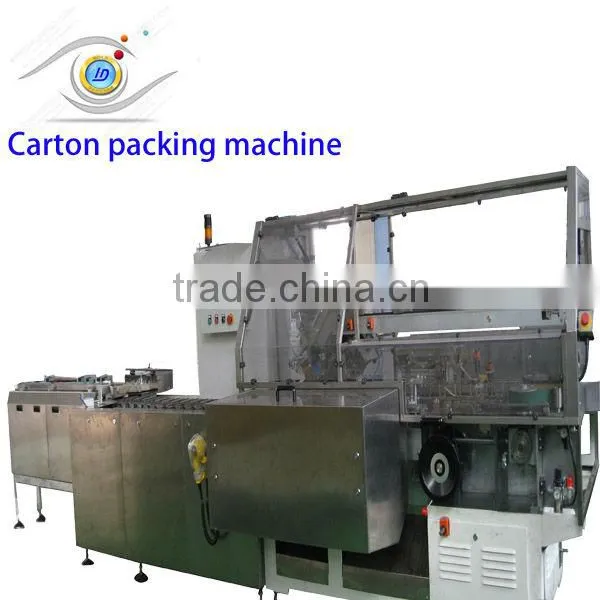

Servo Motor Carton Packing Machine From China thumbnail-1

Servo Motor Carton Packing Machine From China photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles

Packaging Type:

Other, vacuum packing

Contact Supplier Request Quote Chat Now

Nantong Han Di Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles

Packaging Type Other, vacuum packing

Packaging Material Wood

Automatic Grade Automatic

Driven Type Pneumatic

Voltage 380 V

Power 3-5 KW

Place of Origin Jiangsu, China

Brand Name Han Di

Model Number TH 260

Dimension(L*W*H) 4700*1495*1930(mm)

Weight About 3500kg

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Servo motor carton packing machine from China

Max speed	200 cartons/min(variable according to different sizes of various products)
Normal speed	160-200 cartons /min (variable according to different sizes of various products)
Model	TH260
Serial number
Manu. Date
Life time	10 Years
Dimension	Total dimension	L×W×H 4700×1495×1930 (mm)
Weight	Total	3500kg
Electrical	Power supply	Rated voltage	380 V
		Phase	3P+N+G
		Frequency	60Hz
		Control voltage	24V
	Power	Main speed reducer	2.2kW
		Glue sprayer	6kW
		Control cabinet	0.8kW
		Total current	10A
Vacuum loop	Vacuum degree	-0.08Mpa
Compressed air	Consumption	15L/min
	Pressure	0.6MPa

TH260 series high speed cartoning machine

High speed cartoning machine with disc feeding

TH260 series full-automatic cartoner is widely used in the package field, such as pharmaceuticals, food, daily chemical etc.. It can function independently, or can be joined to the whole packaging line.

It is mainly composed of the following parts: master driving unit, four-section infeed servo motor conveyor, disc feeding, carton-transferring unit, carton-suction unit, product-push unit, coding unit, carton-pressing unit, glue sprayer (carton flaps folding unit), discharge unit, electric control unit and pneumatic unit. Under coordinated work of the above parts, the product packing procedure is completed perfectly.

Specific operation principles are as follows:

Products flow onto the infeed conveyor from upstream machine, and were put to the transferring shoes by four-section servo motor infeed conveyor.

When the disc feeding under the control of photoelectrical switch detect that the products are ready,the carton-suction rod begins to suck carton,meanwhile carton-pull rod begins to pull the carton,and then the carton-unfolding rod unfolds the carton,finally the carton is successfully put on the carton guide rail. The carton –suction device has a protection function -- no product entering, no carton suction.The product pusher unit boasts the protection function of --no push when there is product but without cartons.

The filled cartons will undergo flap folding, coding, glue spraying and closing with the cooperation of workbench closing unit. Then they will be tightened by the discharge conveyor and finally transferred to the case packing platform.

This machine’s speed is controlled by variable frequency and programmable control unit. The visible packing speed and the packing procedures are tracked by photo eyes. This machine boasts safety devices such as overloading protection, electricity leakage protection, and failure alarm.

Thisuser-friendly machine adopts world famous control elements with touch screen in both Chinese and English.

This compact equipment operats simply and reliably,boasting fast packaging speed,stable packaging quality,as well as smooth and beautiful packaging appearance.
