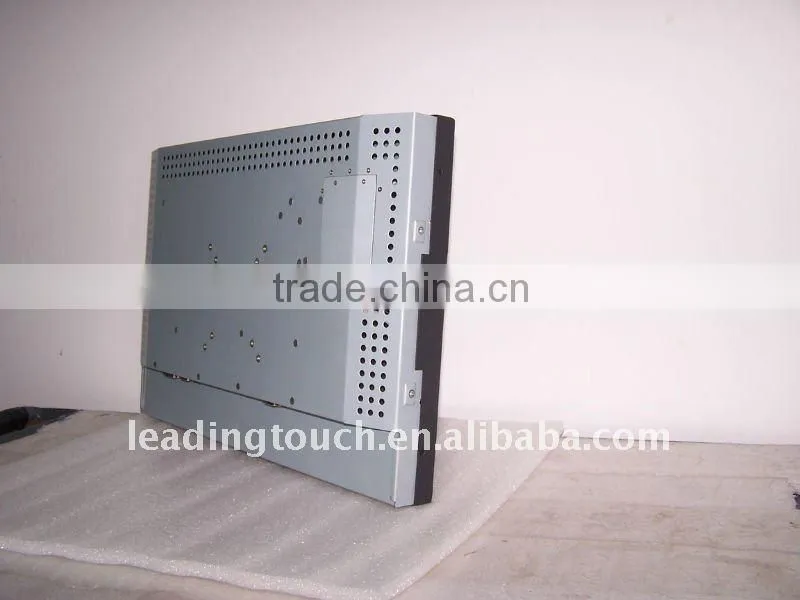

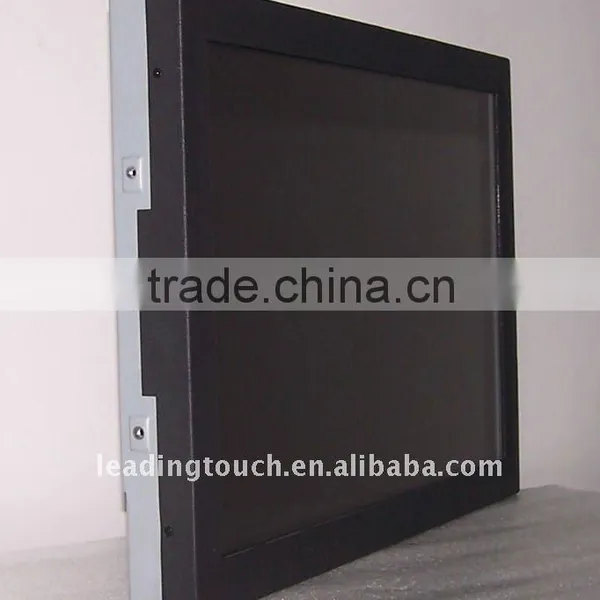

Help CenterLeadingtouch 19" 1Open Frame Surface Acoustic Wave SAW Touch Screen LCD Touch Monitor TM-1969
Related Products
-
LeadingTouch 19" 16:10 Touch Monitor for KiosksUS$ 200 - 400MOQ: 1 Unit -
Leadingtouch 22" Open Frame Touch Monitor TM-2239US$ 200 - 300MOQ: 1 Unit
-
Leadingtouch 22" Open Frame Touch Monitor for Kiosks TM-2258NegotiableMOQ: 1 Unit
-
Leadingtouch 24" Open Frame Saw Touch Monitor TM-2469US$ 350 - 450MOQ: 1 Unit
-
Leadingtouch 26" Multitouch Open Frame Infrared (IR) Touch Monitor TM-2658US$ 500 - 800MOQ: 1 Unit
Specifications
1, Surface Acoustic Wave SAW waterproof touch bezel2, Dual RS232 and USB combo touch
3, Agency Approval:Leadingtouch touchscreens, controllers, and cables have been approved for CE marking. Where appropriate, Touchmonitors are marked CE compliant, and are typically Class B. Systems incorporating leadingtouch touchscreens, controllers, and cables have been approved to FCC Class A compliance. Touchmonitors typically are FCC Class B verified RoHS
Model |
TM-1969 |
Description |
19″Widescreen TFT Rear Mount Touchmonitor |
Case/Bezel Color |
Black |
Display |
16:10 Ratio Active matrix TFT LCD |
Optimal(native) resolution |
1440x3(RGB) x 900 @60Hz |
Sychronization Range |
Horizontal:50 kHz; Vertical: 60Hz |
Useful screen area |
Horizontal:16.1"(409mm);Vertical: 10.05" (255 mm) |
Colors |
16.7 million |
Brightness |
LCD panel: 300 cd/m2 (typical) |
| |
With SAW touchscreen: 280 cd/m2 (typical) | |
Pixel Pitch |
0.297 x 0.297 mm |
Response Time |
5 msec (typical) |
Contrast ratio |
800:1 typical |
Viewing angle |
Horizontal (left/right): 160°(80° /80° ) |
Vertical (up/down): 160°(80° /80° ) | |
Backlight Lamp life |
50,000 Hrs to 1/2 brightness |
Input video format |
VGA or DVI optional |
Input video signal connector |
Mini D-Sub 15-Pin VGA type |
On Screen Display(OSD) |
Remote OSD with 1.2m cable |
Touch Technology |
Surface Acoustic Wave SAW Touch |
Touch Interface |
Combo 10ms232 and USB interface |
Touch Resistive Time |
10ms |
Mounting Options |
Rear Fixed, 75 mm & 100mm VESA mount |
Power supply |
External:100-240V AC, 50-60 Hz |
Power Consumption |
45.5W max |
Temperature Range |
Operating: 0°C to 50°C; Storage: -20°C to 60°C |
Humidity Range |
Operating: 5%-90%; Storage: 8%-90% |
Touchmonitor Dimension |
447.9 x293.9 x 46.4(mm) |
Shipping Carton Dimension |
515x 450 x 175(mm) |
Weight(approx.) |
Monitor: 6.5kg / shipping: 21kg |
Warranty |
Monitor: 3 years/’; LCD Panel: 1 year |
Agency Approvals |
FCC, CE, RoHS compliant |
