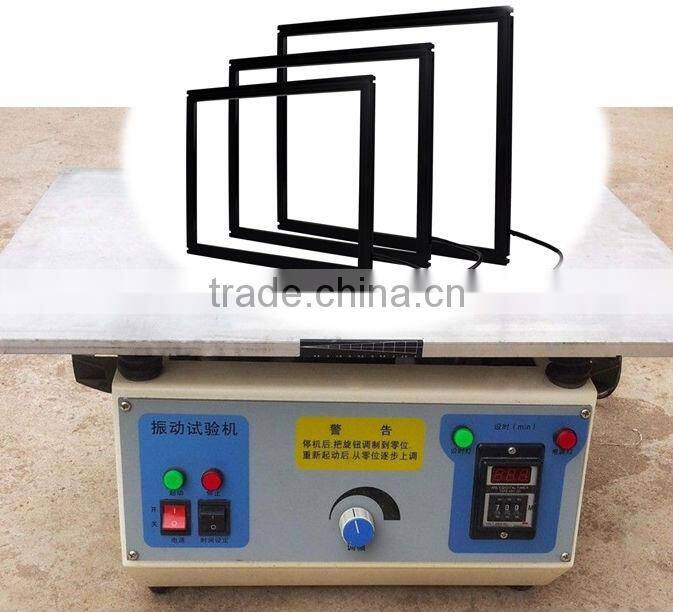

Multi-touch 15"-26" Touch Monitor Front Frame, IR Touch Bezel, ir Touch Screen Frame
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 19"
Type:
Infrared
Payment & Shipping
Payment Methods:
Port of Shipment:
BeiJing China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Leadingtouch 7"-65" Touch Frame for Open Frame Touch MonitorsUS$ 50 - 200MOQ: 1 Unit -
12.1 Multitouch ir Touch Bezel for Touch MonitorsNegotiableMOQ: 1 Piece
-
15" Multitouch ir Touch Bezel for Touch MonitorsNegotiableMOQ: 1 Piece
-
17" Multitouch ir Touch Panel Bezel for Touch MonitorsNegotiableMOQ: 1 Piece
-
LeadingTouch 12.1" SAW Touch Frame TB-1209NegotiableMOQ: 1 Piece
Products Status
Stock
Screen Size
Other, 19"
Type
Infrared
Interface Type
USB, Other, USB, RS232
Resolution
Other, 4096 x 4096
Brand Name
LeadingTouch
Model Number
TB-1938
Place of Origin
Beijing, China
Specifications
IR touch bezelplastic or metal frame
front frame of monitor
also supply other touch solution
|
Product Description

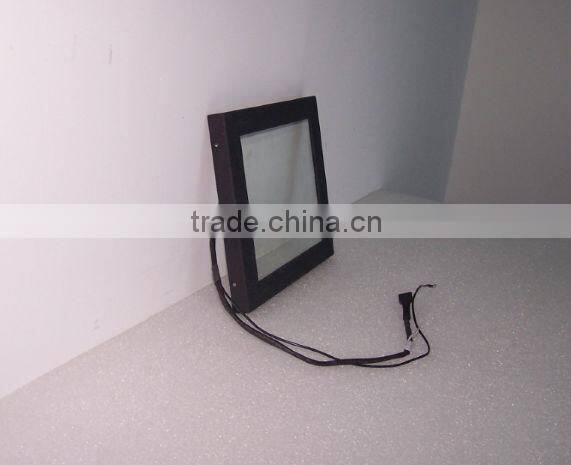

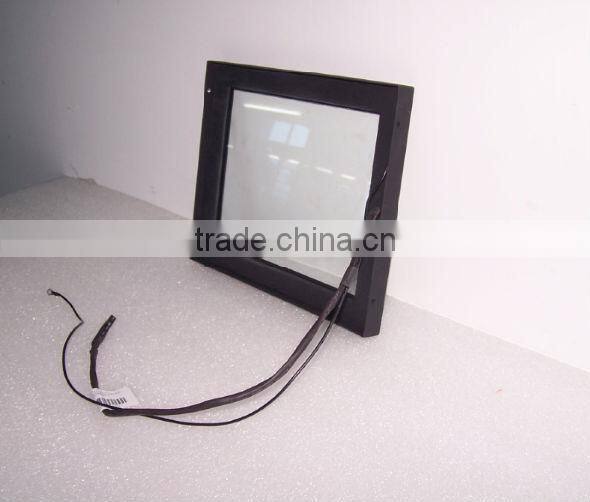

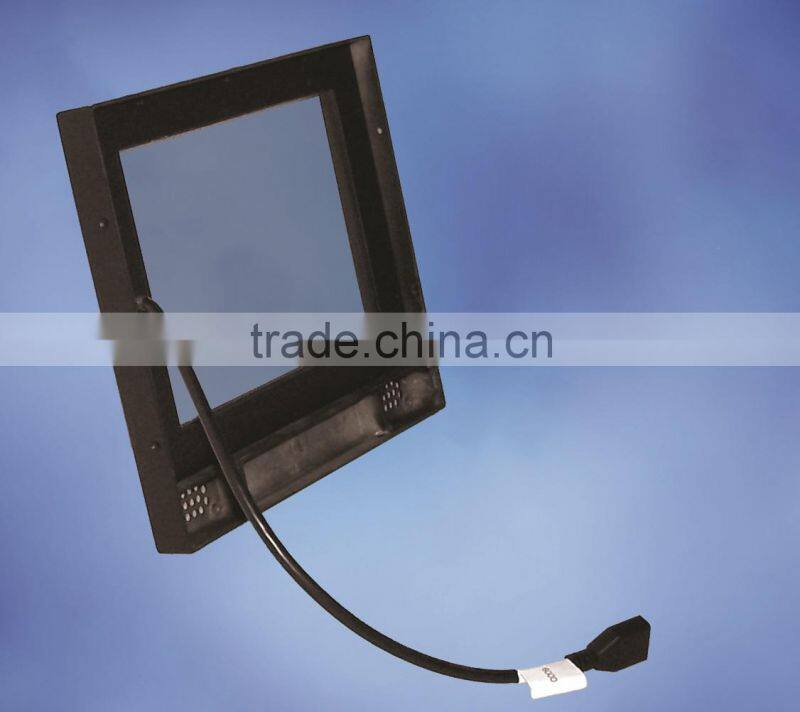

TouchBezel is Leadingtouch patent solution for easy integration to a touch display. Touchscreen is sealed inside top quality metal or plastic frame with customer assembly holes around, easy to assembly to the rear cover of customer’s display system by some screws. Size | |
| General Size | 15″ to 22″ |
| Custom Size | 8.4″ to 26″ |
| Fit in with | Panel display device |
| Performance | |
| Resolution(Interpolation) | 4096*4096 |
| Linearity Error | <±1% |
| Response Speed | <10ms |
| Mechanical | |
| Construction | Sensors are sealed inside frames |
| Frame Material | Metal / Plastic |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Touch Times | 7,000,000 |
| Touch Activation Force | <85g |
| Vandal-proof | No break by 1-pound steel ball dropping from 130 cm high |
| Waterproof | No defect by applying water on active area |
| Dustproof | With frames sealed by dustproof strips to prevent dust from accumulating on sensors |
| Surface Durability | Surface durability is that of glass, Mohs' hardness rating of 7 |
| Optical | |
| Light Transmission | 90%(Meet ASTM D1003) |
| Gloss | Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units |
| per ASTM D2457 using a 60-degree gloss meter | |
| Environmental | |
| Temperature | Operating Range: -20°C ~ 70°C |
| Storage Range: -40°C ~ 85°C | |
| Relative Humidity | Operating Range: 0%~90% RH (no dew falls) |
| Storage Range: 0% to 95% RH (no dew falls) | |
| Altitude | Up to 5,000m |
| Life Time | At least 10-years |
| Electrical | |
| Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
| Power Supply | USB or PS/2 interface |
| Interface | Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
| Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity | |
| Electrostatic Protection | 15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4) |
| Touchpoint Density | >100,000 touchpoints/in² (15,500 touchpoints/cm²) |
| Agency Approvals | CE, FCC, Rohs |
| Operating System | |
| Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS | |
| Reliability | |
| MTBF | Greater than 1,543,000 hours per MIL-HDBK-217-F2 |
| Thermal Cycling | Ambient (0.5 hr) to 65°C / 90%RH (0.5 hr), 12 thermal cycles, 2°C/Minute |
Packaging & Shipping
The touch bezel will be package into the carton or pallet
3 options of Carton
1, one carton is for 5pcs touch bezel
dimension: 54 x 45 x 18.5cm
2, one carton is for 10pcs touch bezel
dimension: 54 x 45 x 26cm
3, one carton is for 15pcs touch bezel
dimension: 54 x 45 x 35cm
or based on product details
