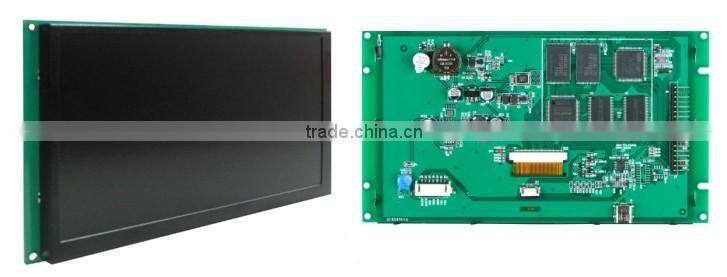

8 Inch 800x600 Tft Lcd Display Module Widely Used in Industry.

Specifications

1.TFT with Touch Controller & Serial Interface.
2.Lcd module with touch screen.
3.Lcd module with driver-kernel.

Used as Touch-controller & TFT display system.

Control by Any MCU via "Command Set".

(Low Cost HMI device)



Function: 1. Touch-Control  2. Display-Picture  3. Display-Text  4. Display-Graph  5. Read & Store Data.

 (Fit any industry design & Easy to use.)



Application Field:  Medical & Cosmetology Equipment, Electronic-Instrument, Industry Controller, Electric Power Industry, Engineering Machinery, Civilian Electronic Product and so on.



Model: STA080WT-01 (Advanced Type)

Physical Parameter	Model:	STA080WT-01
	Size (Inch):	8''
	Resolution:	800xRGBx600
	Pixel Spacing:	0.1905mmx0.0635mm (HxV)
	Color:	65536 colors (16 bit)
	Viewing Area:	162.0 mmx121.5 mm
	Display Dimension:	168.0 mmx126.5 mm
	Overall Dimension:	199.5 mmx149mmx20mm(N)/ 22mm(T)
	Net Weight:	435g(N)/ 550g(T)
	TFT Panel:	A+ Level Industry Panel
	Touch Screen:	Industry Level 4 wire resistance Or without touch screen is optional.
Backlight Parameter	Backlight Type:	LED
	Brightness:	500cd/m2 (Brightness can be adjustable in 100 levels.)
	Contrast:	500:1
	Backlight life:	50,000 hours
	Viewing Angle:	70°/70°/50°/70°(L/R/U/D)
	Working Temperature:	-30°c ~ +85°c
	Working Humidity:	60°c,90%
	Storage Temperature:	-30°c ~ +85°c
	Screen Mode:	Digital
Performance Parameter	CPU:	CortexM3 STM32F103  200MHz
	LCD Controller:	CPLD EPM240
	Refresh Rate:	60Hz
	Picture Switching Speed:	47 ms/picture (21 pictures/s)
	Flash Memory:	Standard 2GB,Extension 4GB
	Memory Amount for picture:	315 images

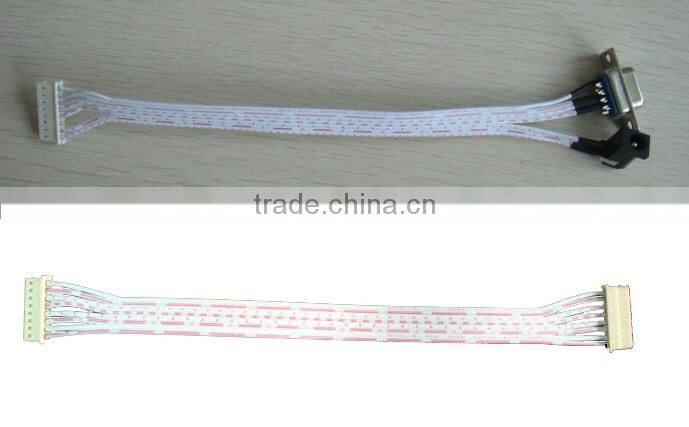

	Interface:	RS232 /TTL UART Interface (Extend to RS485 so on.)
	Pictures downloading:	MiniUSB2.0 (12Mbps)
	Voltage Range:	DC5V ~ 42V (typical value: 12V)
	Power:	4.0 W



Operation:

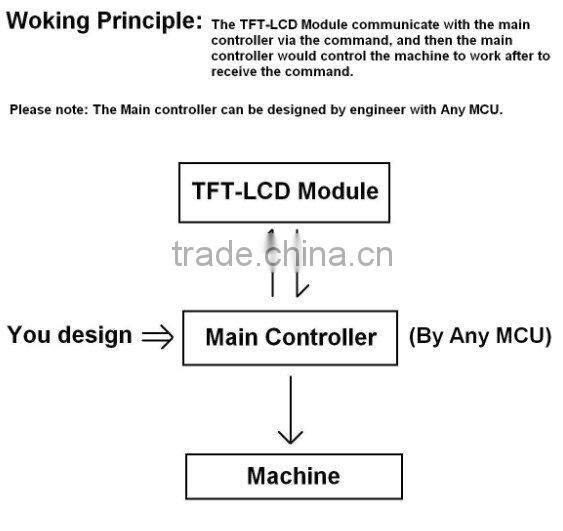

It’s very easy for any engineer to use it, there are only two steps you need to do.

1. Connect your equipment with our TFT-Module by RS232 or TTL level directly.

2. Write a control program for any MCU to work the TFT-Module via "Command Set". That's all.



    For example: Display picture: 0xAA 0x70 “picture code” 0xCC 0x33 0xC3 0x3C

                              Display Text: 0xAA 0x98 “text” 0xCC 0x33 0xC3 0x3C

                          (Please note that all commands are HEX number.)





Test Report:

MTBF:	4,250,000 H
Working Temperature:	-30°c ~ +85°c
Air Humidity:	60°c,90%
Continuous Vibration Testing:	10-55Hz,1.5mm,10G
Impact Acceleration Testing:	6ms,100G
ESD Testing:	10KV
Radiation Reliability Testing	44W



Quality & Manufacture:

We are the largest manufacturer in TFT-Module field in China, and have 9 years experience on development and manufacture.

The productivity is up to 90,000 pcs per month, Hold 70% market of China.



1. Pass the CE & ROHS & FCC certification, and ISO9001:2008 Quality Management System.



2. Only use the best electronic components which is produced by the would famous company, so the repair rate is only 0.2% per year.

For example:

     TFT Screen: SHARP, AUO,CHIMEI

     Touch panel: Fujitsu, AMT

     Flash Memory: Samsung

     IC: TI, CY, ISSI, Samsung, Linear

     Capacitance: Murata, TDK

     Inductance: Murata

     Connector: HRS, OMRON, Tyco



3. Enter the American Market & European Market for 3 years, and it's great popular in many industry field.



Delivery Term:

Within 2 weeks for all order.



Quality Guarantee and Warranty Period:

 The warranty period will last 5 years after delivery. If there is any technical or quality problem in warranty period, we guarantee the goods will be replaced by new product unconditionally.
