Specifications
1.TFT-LCD monitor with Serial Interface2. Simple system device that translates data between serial and parallel forms.
Used as Touch-controller & TFT display system.
Control by Any MCU via "Command Set".
(Low Cost HMI device)
Function: 1. Touch-Control 2. Display-Picture 3. Display-Text 4. Display-Graph 5. Read & Save Data.
(Meet any industry design & Easy to use.)
Application Field: Medical & Cosmetology Equipment, Electronic-Instrument, Industry Controller, Electric Power Industry, Engineering Machinery, Civilian Electronic Product and so on.
Model: STA050WT-01 (Industry Type)
Physical Parameter |
Model: |
STA050WT-01 |
Size (Inch): |
5'' |
|
Resolution: |
480xRGBx272 |
|
Pixel Spacing: |
0.1905mmx0.0635mm (HxV) |
|
Color: |
65536 colors (16 bit) |
|
Viewing Area: |
211.2mmx158.4mm |
|
Display Dimension: |
212.6 mmx159.8mm |
|
Overall Dimension: |
255mmx176.8mmx16.5mm(N)/18.5mm(T) |
|
Net Weight: |
765g(N)/805g(T) |
|
TFT Panel: |
A+ Level Industry Panel |
|
Touch Screen: |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
Backlight Parameter |
Backlight Type: |
LED |
Brightness: |
450cd/m2 (Brightness can be adjustable in 100 levels.) |
|
Contrast: |
500:1 |
|
Backlight life: |
30000 hours |
|
Viewing Angle: |
70°/70°/50°/70°(L/R/U/D) |
|
Working Temperature: |
-30°c ~ +85°c |
|
Working Humidity: |
60°c,90% |
|
Storage Temperature: |
-30°c ~ +85°c |
|
Screen Mode: |
Digital |
|
| ||
Performance Parameter |
CPU: |
CortexM3 STM32F103 200MHz |
LCD Controller: |
CPLD EPM240 |
|
Refresh Rate: |
60Hz |
|
Picture Switching Speed: |
46 ms/picture (22 pictures/s) |
|
Flash Memory: |
Standard 2GB,Extension 4GB |
|
Memory Amount for picture: |
312 images |
|
Interface: |
RS232 /TTL UART Interface (Extend to RS485 so on.) |
|
Pictures downloading: |
MiniUSB2.0 (12Mbps) |
|
Voltage Range: |
DC4.5V ~ 20V (Typical value: 12V) |
|
Power: |
1.2W |
|
Operation:
Easy to Use, there are only two steps you need to do.
1. Connect your equipment with our TFT-Module by RS232 or TTL level directly.
2. Write a control program for any MCU to work the TFT-Module via "Command Sets". That's all.
For example: Display picture: 0xAA 0x70 “picture code” 0xCC 0x33 0xC3 0x3C
Display Text: 0xAA 0x98 “text” 0xCC 0x33 0xC3 0x3C
(Please note that all commands are HEX number.)
Test Report:
| |
MTBF: |
4,250,000 H |
Working Temperature: |
-30°c ~ +85°c |
Air Humidity: |
60°c,90% |
Continuous Vibration Testing: |
10-55Hz,1.5mm,10G |
Impact Acceleration Testing: |
6ms,100G |
ESD Testing: |
10KV |
Radiation Reliability Testing |
44W |
Quality & Manufacture:
We are the largest manufacturer in TFT-Module field in China, and have 9 years experience on development and manufacture.
The productivity is up to 90,000 pcs per month, Hold 70% market of China.

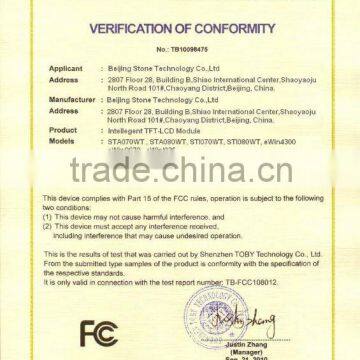

1. Pass the CE & ROHS & FCC certification, and ISO9001:2008 Quality Management System.
2. Only use the best electronic components which is produced by the would famous company, so the repair rate is only 0.2% per year.
For example:
TFT Screen: SHARP, AUO,CHIMEI
Touch panel: Fujitsu, AMT
Flash Memory: Samsung
IC: TI, CY, ISSI, Samsung, Linear
Capacitance: Murata, TDK
Inductance: Murata
Connector: HRS, OMRON, Tyco
3. Enter the American Market & European Market for 3 years, and it's great popular in many industry field.
Delivery Term:
Whin 2 weeks for all order.
Quality Guarantee and Warranty Period:
The warranty period will last 3 years after delivery. If there is any technical or quality problem in warranty period, we guarantee the goods will be replaced by new product unconditionally.
