INTEL D2700 ATOM 5COM dual 8 LVDS outdoor advertising ALL-IN-ONE pc industrial control
USD $1 - $2
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- ShenZhen
- Credit Card PayPal
You May Like
- Network Security PC Motherboard Intel Atom 4C4T C3558R CPU 6*RJ45 2*SFP Gbe 2*SFP+ 10G Bypass PCIe x8 Expansion Mainboard
- Intel 12th Gen Alder Lake Quad Core N95 3.4GHz DDR4 HDMI LVDS mini-ITX Motherboard for POS SYS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POS
- Mini-ITX Motherboard Intel Jasper Lake Quad Core N5095 CPU Dual DDR4 HDMI VGA RJ45 12VDC Mainboard
- China original Bo CPU PCA-6743 for India power system
- Onboard Intel Core i7-8565U 4.6GHz Computer Motherboard for Industrial Machine Vision Automation 4*Gbe LAN 6*COM
Product Details
Products Status: | Stock | Application: | Desktop | Model Number: | D2700 |
Place of Origin: | Guangdong, China |
Product Description
Specifications
INTEL D2700 ATOM 5COM dual 8 LVDS outdoor advertising ALL-IN-ONE pc industrial controlINTEL D2700 ATOM 5COM dual 8 LVDS outdoor advertising ALL-IN-ONE pc industrial control

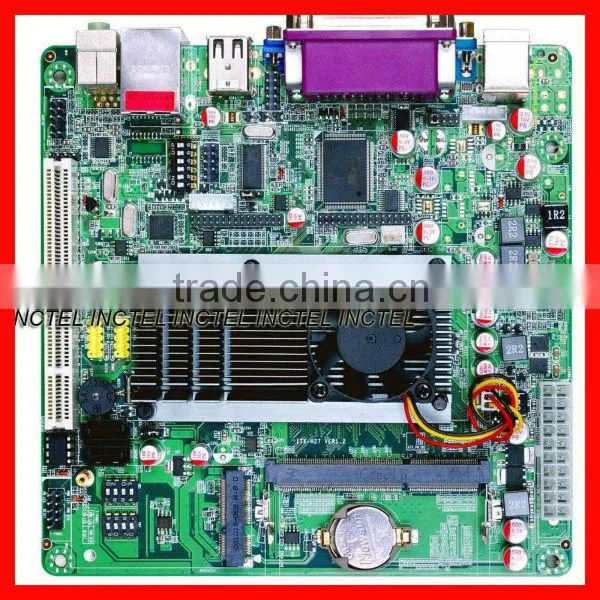

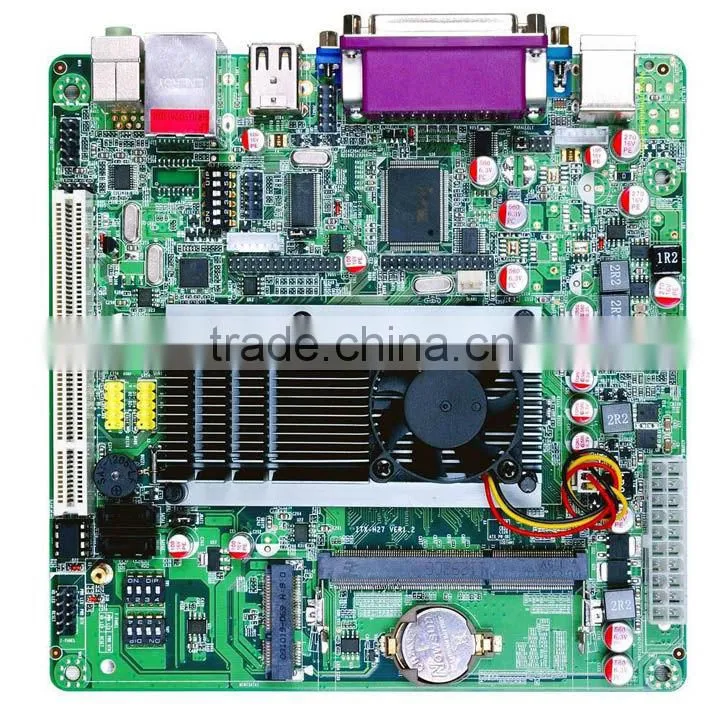

Motherboard features:
INTEL latest D2700 new generation ATOM Atom motherboard, CPU speeds up to 2.13G, performance ultra-D525 30 percent.
The motherboard ATX / DC optional support dual 824-bit LVDS, dual iso significant.
The motherboard integrated 5COM port support MINI-SSD Solid State Drive.
Support for dual-core Intel Atom D2700 processor (32nm, 2.13GHz, 1024MB secondary cache)
Support for single-core Intel Atom D2500 processor (32nm, 1.86GHz, 1024MB secondary cache)
Chipset Intel Atom D2500/D2700 + NM10 Express Chipset
Graphics built-in Intel GMA 3650 graphics (shared memory 128/224MB)
Memory 1 * 204-pin single-channel DDR3 1333/800/667 memory, maximum support 4GB
Expansion Slots 1 * PCI slot
Storage function 2 * Serial ATA2 3Gb / s controller (SATA2 interface default to MINISATA above support SSD drive)
When SW1, SW2 simultaneously pull the left supports SATA2 interface
When SW1, SW2 right pull support SSD hard disk interface
Realtek ALC662 6-channel audio features hi-fi audio
1 * RTL8105E Fast Ethernet network functions
Supports Wake on LAN
Onboard LVDS interface 1 * LVDS1 1 * 6 power connector (optional)
1 * LVDS 2 * 15 optional interface (internal support the single 24bit and dual-channel 24bit LVDS interface)
When using LVDS screen, according to the the LVDS screen resolution SW3 DIP switch to select its resolution
The SW3 DIP bit number: 4321
0000 800 * 600 single six 01,001,280 * 960 Single Six 10,001,440 * 900 double eight 11,001,600 * 1200 double eight
0001 1024 * 768 single six 01,011,280 * 1024 and eight 10,011,400 * 1050 double eight 11,011,920 * 1080 double eight
00101280 * 768 Single Six 01,101,366 * 768 and eight 10,101,024 * 600 Single Six 11,101,920 * 1200 double eight
00111280 * 800 Single Six 01,111,366 * 768 Single Six 10,111,680 * 1050 double eight 11,111,024 * 768 and eight

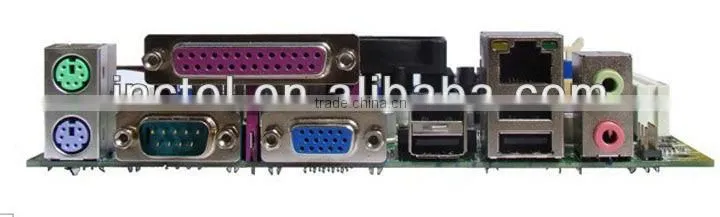

Back I / O connector 1 * 12V DC_JACK input (with ATX power optional)
1 * PS / 2 Mouse & 1 * Keyboard connector
1 * COM interface
1 * VGA interface
1 * Parallel Interface
2 * USB 2.0/1.1 interface (supports 4 USB devices)
1 * RJ-45 cable interface
1 * Audio I / O interface (microphone and line output)
Built-in I / O interface 2 * fan connectors;
1 * RS232 connector or 4 * RS232 connector (optional)
1 * VGA 2 * 5 interface
2 * USB 2.0 interface (supports 3 USB devices)
1 * CD input
* Audio connector (2 * 5 pumping 8)
BIOS AMI 16MB DPI Flash ROM
The system supports WIN7 32bit operating system
Product Size
Mini ITX Form Factor (17cmx17cm)
