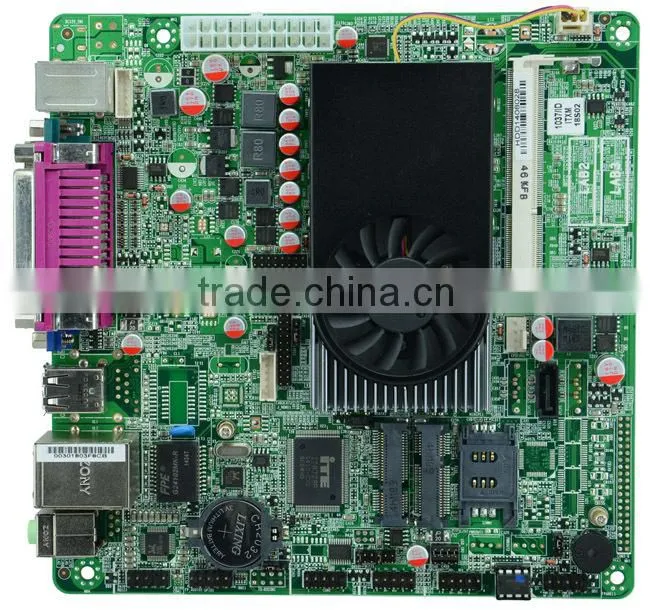

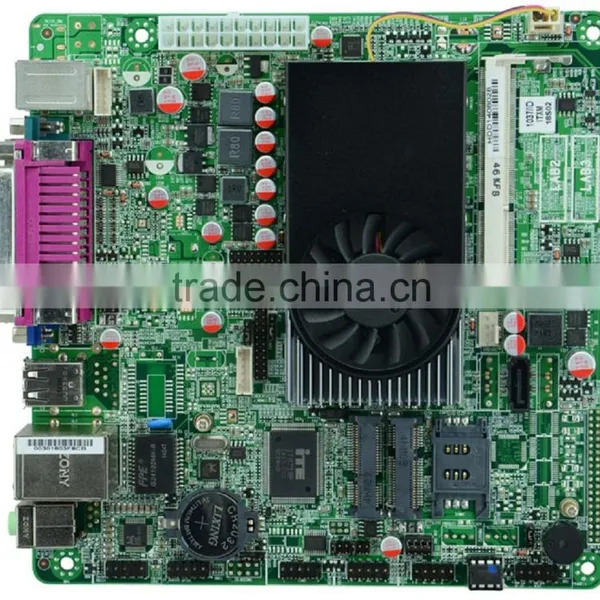

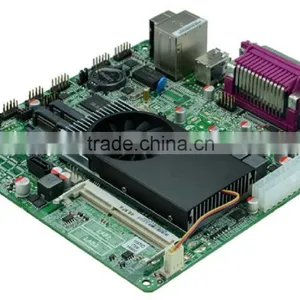

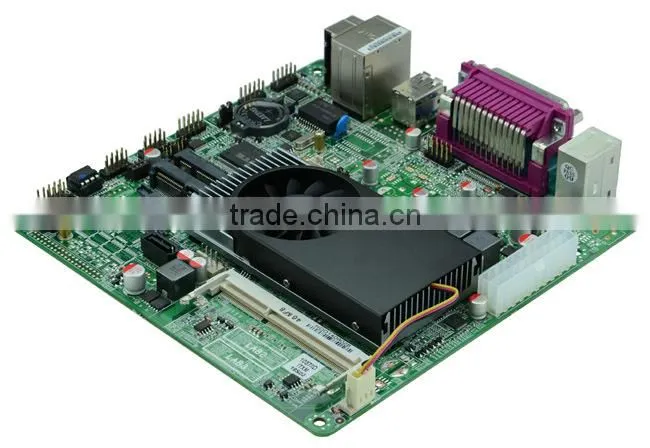

1. ITX-M18_A2 VER: 1.2A front view
Integrated Intel®1037U dual-core dual-threaded 1.8G / 22nm processor with Intel® NM70 Express chipset to support DDR3 generation notebook memory

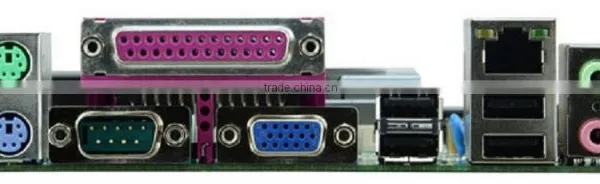

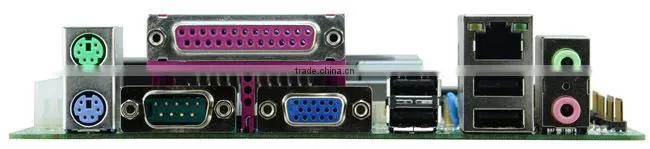

2. ITX-M18_A2 VER: 1.2A IO front view
Integrated Intel® HD Graphics graphics core supports VGA / HDMI / Dual 24BIT LVDS display output support 1080P HD playback

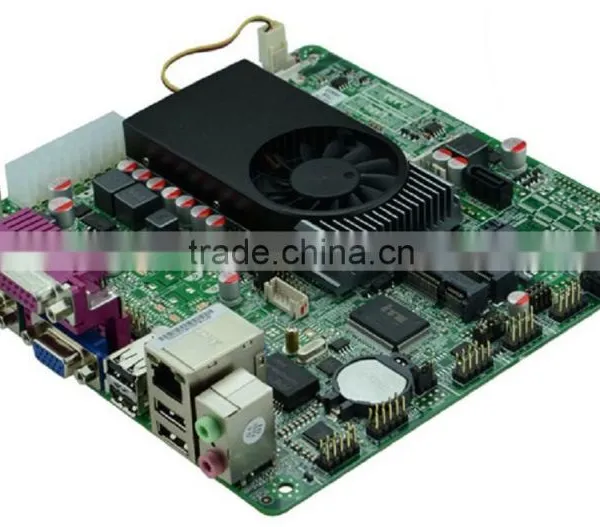

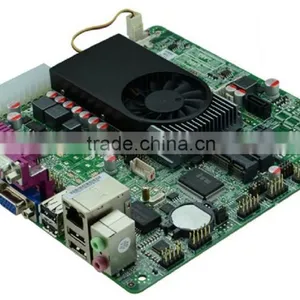

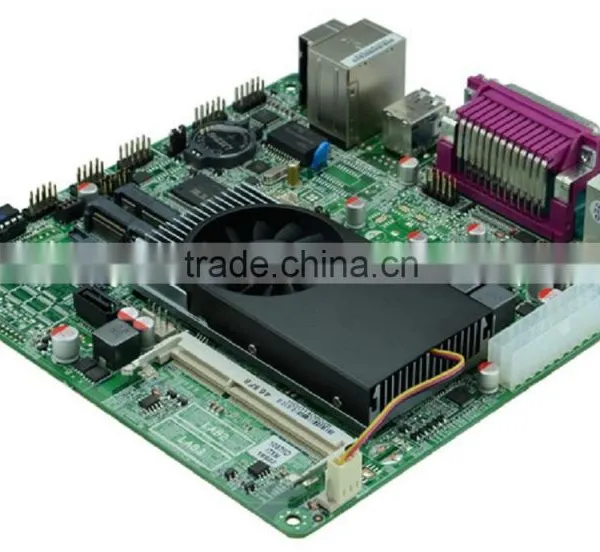

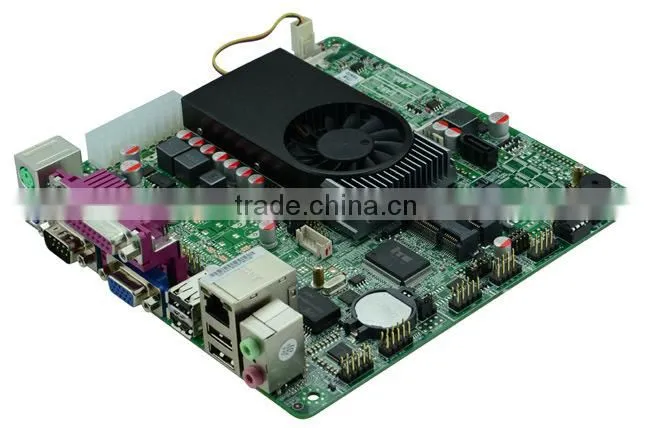

3. ITX-M18_A2 VER: 1.2A side view
Integrated 1 * RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function support WIFI / 3G module / SSD Solid State Drive / 8 USB / 2 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out motherboard ATX power supply
Product number
ITX-M18_A2 VER: 1.2A
CPU
Onboard Intel®1037U 1.80G dual-core dual-threaded processor TDP of 17W
Chipset
Using Intel® NM70 Express Chipset
RAM
Dual SODDRIII 1333/1066 memory slot supports up to 8GB
Display Function
Integrated Intel® HD Graphics graphics core
24BIT LVDS output provides dual-channel VGA HDMI
Support HDMI / VGA synchronous and asynchronous
Support LVDS / VGA synchronous and asynchronous
Supports LVDS / HDMI synchronous and asynchronous
Expansion slots
1 * Mini-PCIE slot (support WIFI / 3G module)
1 * MSATA slot (supports SSD / WIFI, SSD transfer speeds of up to 6Gbps)
Network features
1 * RTL8111E Gigabit Ethernet (PXE Support WOL function)
Memory function
1 * SATAII hard disk interface (transfer rate up to 3Gbps)
Audio features
Onboard Realtek ALC662 6-channel high definition audio support MIC Line-out
Backplane I / O Interface
1 * PS / 2 keyboard and mouse connectors
1 * DB9 RS232 serial port charging function first 9PIN
1 * LPT printer port
1 * DB15 VGA Interface
1 * RJ-45 network interface
4 * USB2.0 Interface
1 * Audio I / O interfaces (microphone and line output)
Built-in I / O Interface
1 * RS232 serial port
1 * LVDS Interface 2 * 15pin (supports dual channel 24BIT LVDS screen)
1 * HDMI Interface 2 * 8Pin
1 * VGA1 interface signal DB15 with 2 * 5pin
4 * USB2.0 Interface
1 * AUDIO Interface
1 * FP1 2 * 5pin (front panel function buttons and LEDs Interface)
1 * PS / 2 mouse and keyboard interfaces 1 * 6Pin
1 * SIM card connector
1 * ATX_24P
Fan Interface
1 * CPUFAN and SYSFAN 4pin
GPIO
It supports 4-way input and output GPIO
BIOS
AMI 32MB Flash ROM
Watchdog
Support for hardware reset function (256, 0 to 255 seconds)
Power supply type
ATX_24P supply
Operating temperature
-10 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 70 ℃
Working humidity
5% to 95% relative humidity, non-condensing
Size
170mm x 170mm
