Control Valves For Diverting And Mixing
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Other, Brass, Brass | Temperature of Media | High Temperature | |
| Media | Water | Port Size | Internal thread,DN15,20,25 | |
| Place of Origin | Zhejiang, China | Model Number | GVI21 | |
| Brand Name | WASSERMANN | Application | Other, Fan coil unit, heating and air conditioning system |
Product Description

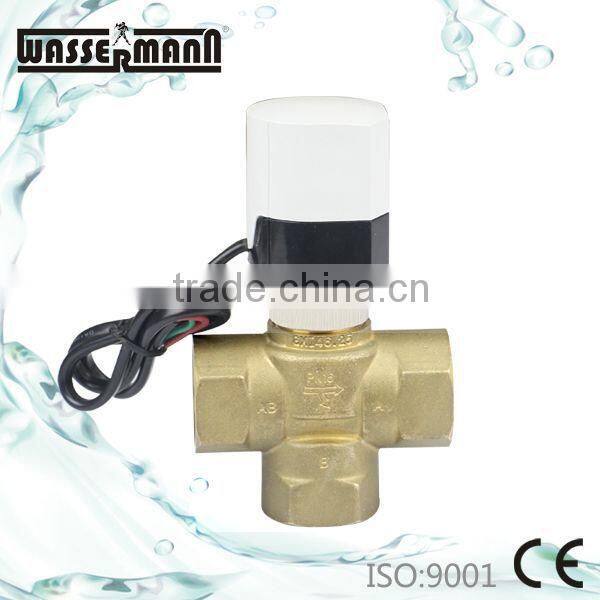

Control Valves For Diverting And Mixing
Model: GVI21,Internal Thread
Fan-coil control valves are used for controlling the flow of hot or cold water in heating and air conditioning systems. They are ON/OFF operated by electric actuators with max. stroke of 3 mm,such as electrothermic actuator. It can be used both as mixing and diverting valve.
The actuator is made for either 220V or 24V supply in normally closed
APPLICATIONS

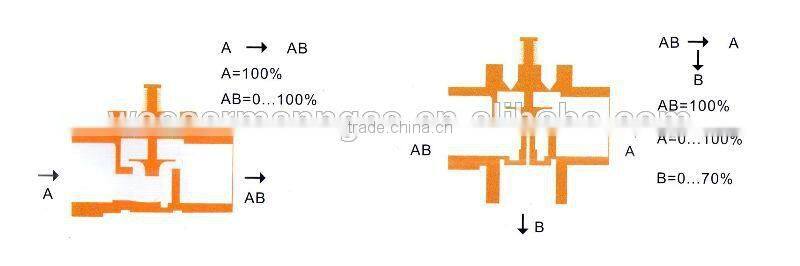

The valves are used for diverting/mixing, the heat transfer fluid to a heating or air conditioning system as required by the room thermostat (or timing thermostat).

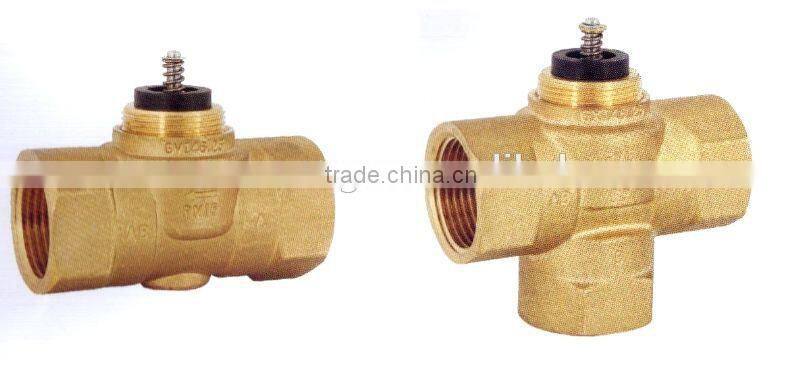

The 3-way fan-coil valves, thanks to the special configuration of the plug controlling the by-pass flow, can be used equally well as diverting or mixing valves (thus optimizing to the full the various plumbing requirements in assembly).
MEDIA
These valves can handle the following types of media:
- Fresh water / Potable water
- Closed systems
- Water with antifreeze additive (glycol ≤ 50% mixture)
TECHNICAL DATA
Voltage: 230V(220)V, 24VAC
Power consumption: 24W
Force: 120N
Stroke: 3mm
Travel time: 3-5 min
Max. fluid temperature 110°C
Valve interface: Cap nut M30x1.5mm
Internal threads BSP or NPT
Removable Manual Adjuster
Operating pressure: PN16
Valvel characteristic: Linear
MATERIALS
Body: forged brass
Stem: Stainless steel
Spring: Stainless steel
Plug Rubber: EPDM
