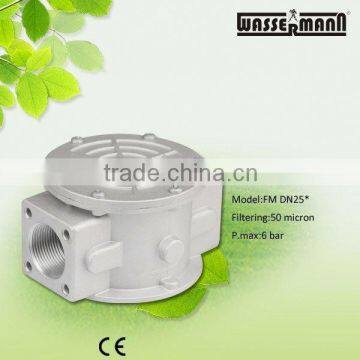

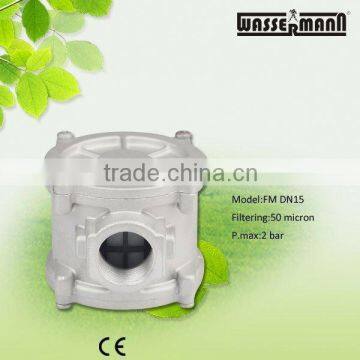

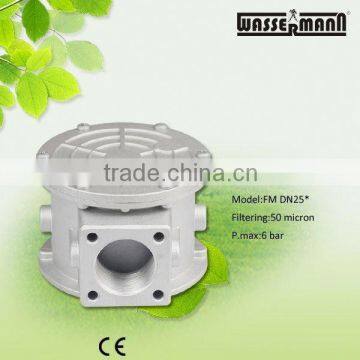

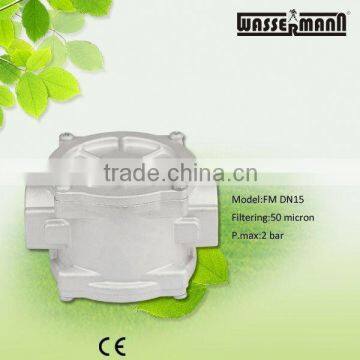

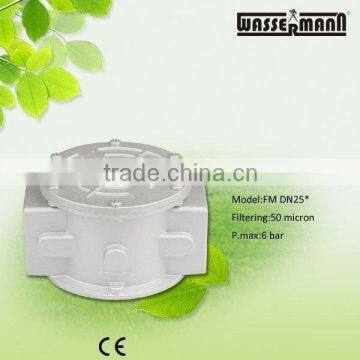

FM Natural gas filter element
Model : FM
It is a device that prevents the passage of a particles of dust or debris brought by the gas, protecting the regulation and safety
device. FM gas filters have a large filtering component made of synthetical washable material which is fully removable for complete
inspection and cleaning. Special O-Ring sealings, resistant to third gas family, make easy removal.The filters permits upstream
pressure measurement through an appropriate standard connection.
TECHNICAL DATA
• Use: not aggressive gases of the 3 families (dry gases)
• Threaded connections Rp: (DN 15 ÷ DN 50) according to EN 10226
• Max. working pressure: 2 bar or 6 bar (see product label)
• Environment temperature: -40 ÷ +70 °C
• Group: 2
• Filtration: 50 µm
MATERIALS
• Die-cast aluminium (UNI EN 1706)
• OT-58 brass (UNI EN 12164)
• 11S aluminium (UNI 9002-5)
• Galvanized and 430 F stainless steel(UNI EN 10088)
• NBR rubber (UNI 7702)
• Nylon 30% glass fibre(UNI EN ISO 11667)
• Viledon

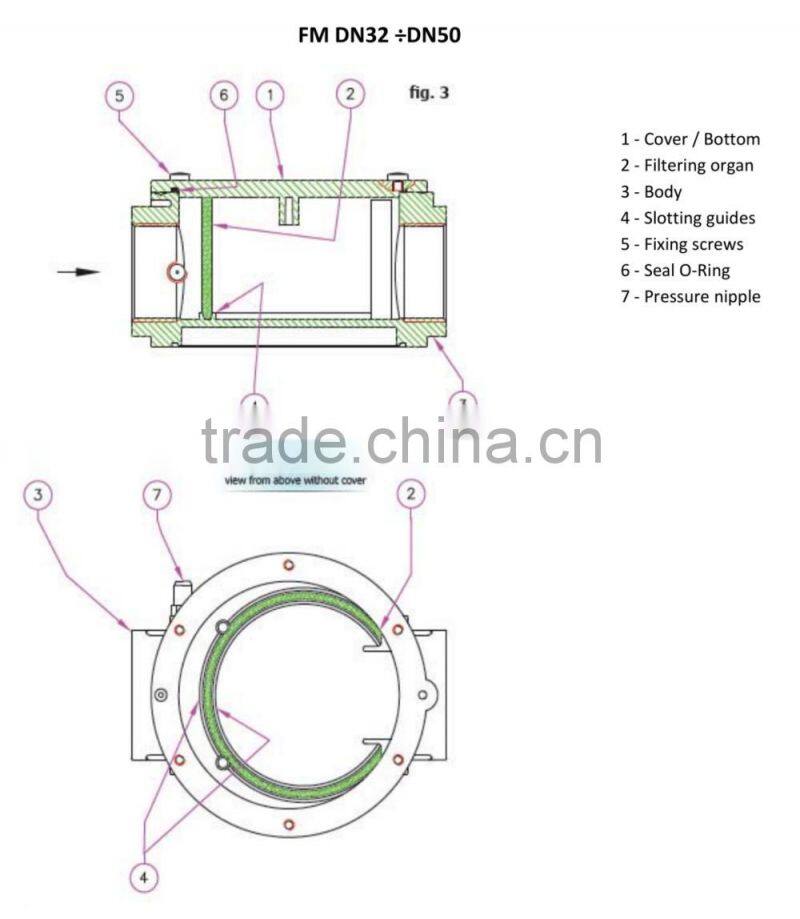

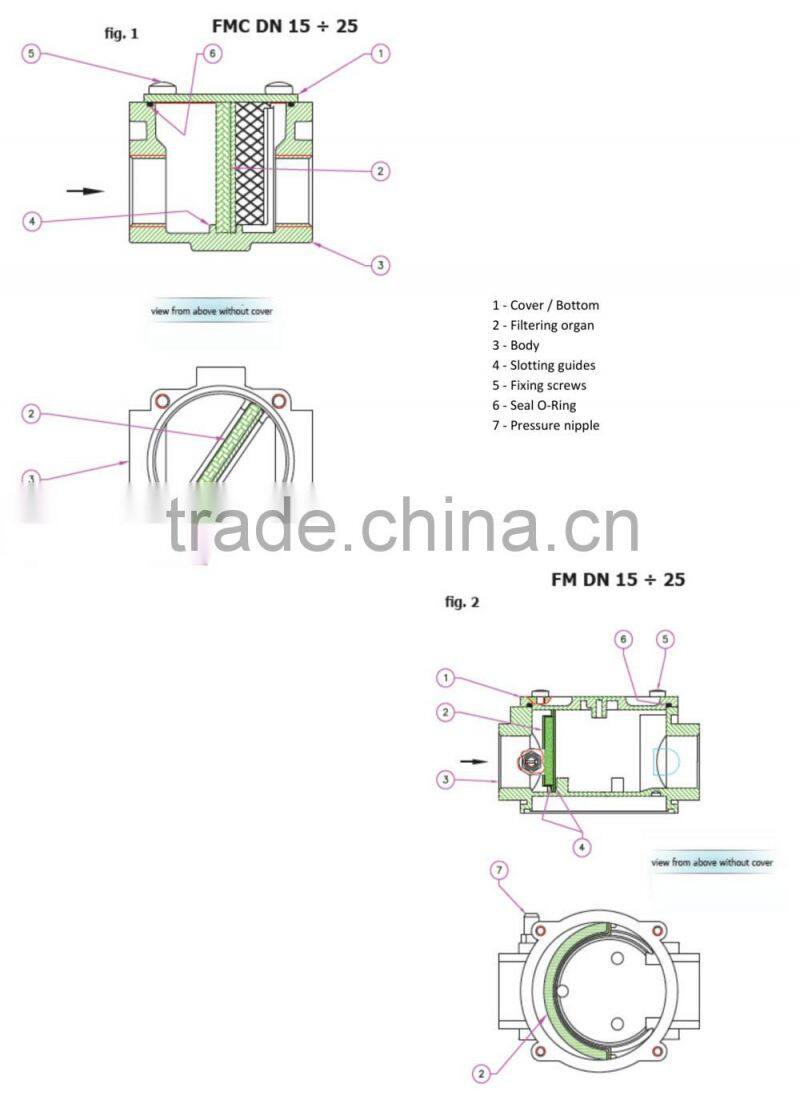

SPARE PART LIST
PRESSURE DROPS DIAGRAM
DIMENSIONS
EACH REGULATOR IS PACKED BY A SMALL WHITE BOX
INNER BOX SIZE : 125x100x155mm
30PCS ONE CARTON
MASTER CARTON SIZE : 520x388x320mm
N.W. : 21KG/CTN
G.W. : 22KG/CTN
THE LAST BY PALLETS
