Help CenterFMC Lpg Gas Cylinder Filter
Related Products

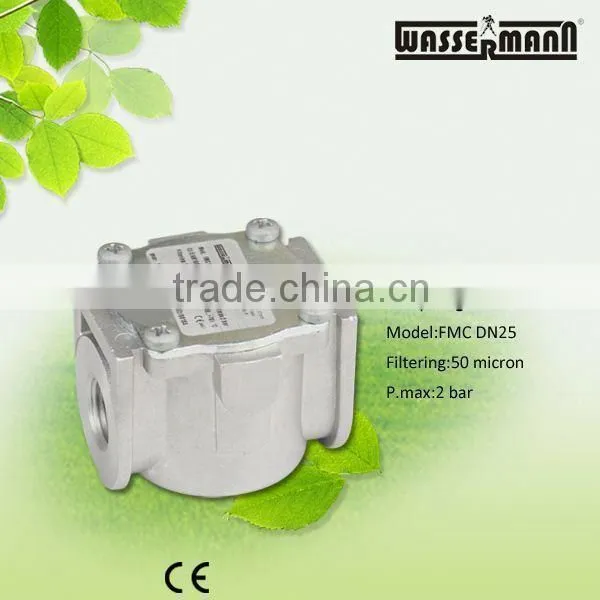

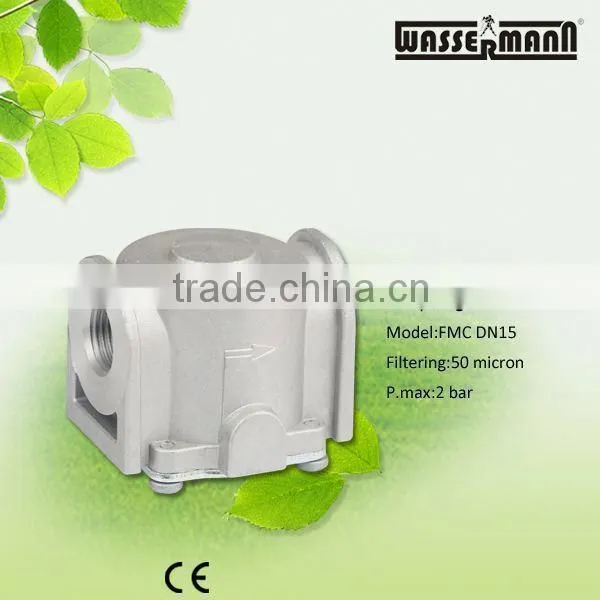

FMC Lpg Gas Cylinder filter
Model : FMC
Gas pressure closing regulator/filter regulator for small users.
EC certified according to EN 88-1
In conformity with the 2009/142/EC Directive (Gas Directive)
PRODUCT IMAGE
TECHNICAL DATA
• Use: not aggressive gases of the 3 families (dry gases)
• Threaded connections Rp: (DN 15 - DN 20 - DN 25) according to EN 10226
• Max. working pressure:
2bar (E version)
• Environment temperature: -15 ÷ +60 °C
• Class: A
• Group: 2
• Filtration: 50 μm (on request other filtration qualities)
• Filtration class: G 2 (according to EN 779)
MATERIALS
• Die-cast aluminium (UNI EN 1706)
• OT-58 brass (UNI EN 12164)
• 11S aluminium (UNI 9002-5)
• Nylon 30% glass fibre (UNI EN ISO 11667)
• NBR rubber (UNI 7702)
• Viledon

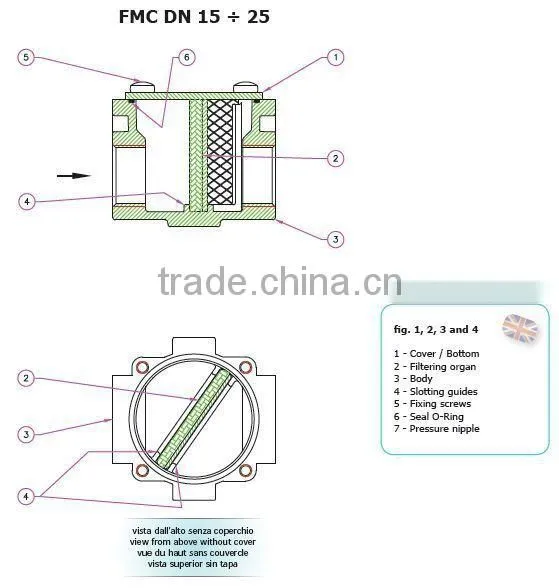

SPARE PART LIST

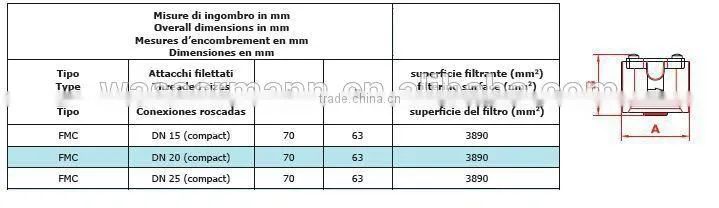

DIMENSIONS

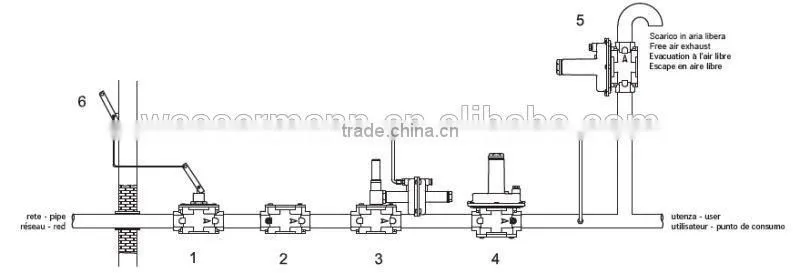

EXAMPLE OF INSTALLATION
EACH REGULATOR IS PACKED BY A SMALL WHITE BOX
INNER BOX SIZE : 125x100x155mm
30PCS ONE CARTON
MASTER CARTON SIZE : 520x388x320mm
N.W. : 21KG/CTN
G.W. : 22KG/CTN
THE LAST BY PALLETS
