Help CenterIndustrial Firewall Motherbaord Mini-itx D2550 Motherboard for 6 Lan Ports D25SL
Related Products
-
Intel Firewall Motherboard ITX-M2F Router Board D2550 Mini-itx Motherboard for 4 Lan 1U Firewall ApplianceNegotiableMOQ: 1 Piece -
D525 Firewall Mainboard 4 Gigabit PCIE Ethernet Ports Atom Motherboard With BYPASSNegotiableMOQ: 1 Piece
-
ITX-M5F Mini Itx Motherboard With 4 LAN Atom D525 Firewall MotherboardNegotiableMOQ: 1 Piece
-
ATOM D525 Dual-core 6 Gigabit Ethernet Board ROS MotherboardNegotiableMOQ: 1 Piece
-
ATOM D525 6 Gigabit Ethernet Network Security Firewall Motherboard Motherboard Motherboard With Flexible Routing BAPASSNegotiableMOQ: 1 Piece

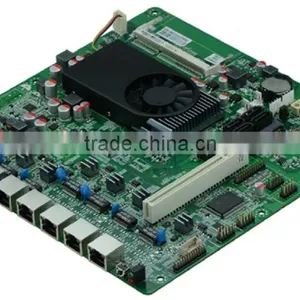

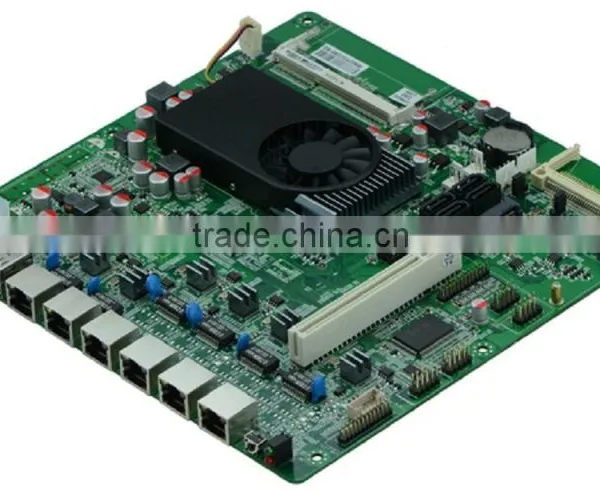

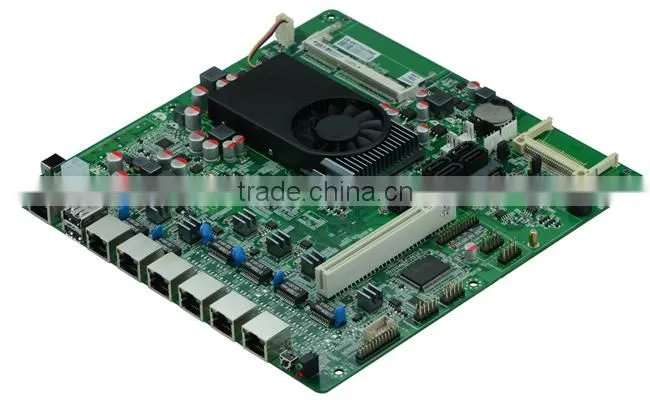

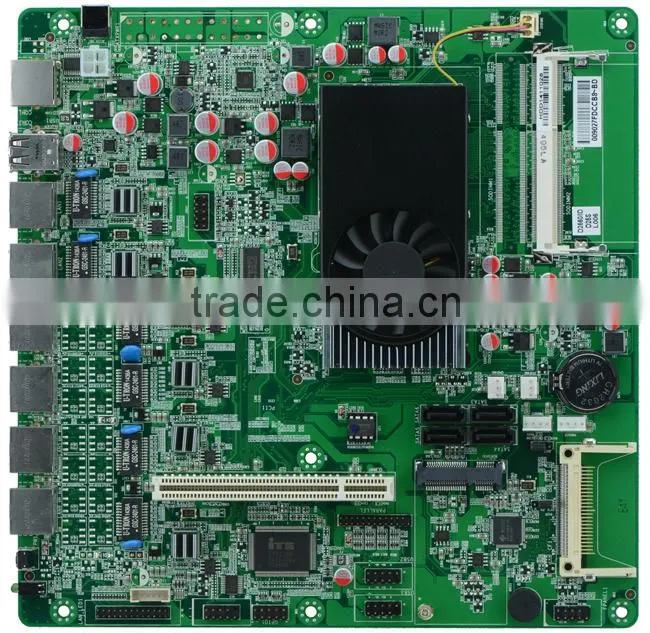

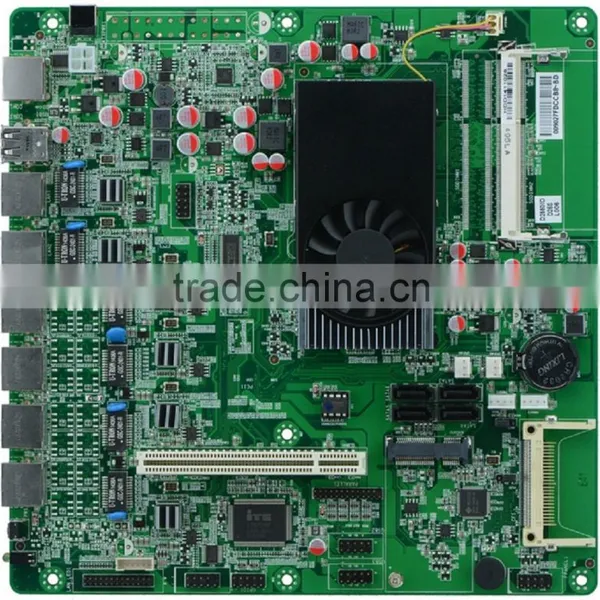

1. D25SL VER: 2.0 front view
Onboard Intel®Atom D2550 1.86GHZ dual core processor Intel® ICH10R Express Chipset supports DDR3 generation notebook memory
2. D25SL VER: 2.0 IO front view
Integrated graphics card supports VGA display Intel® GMA3600

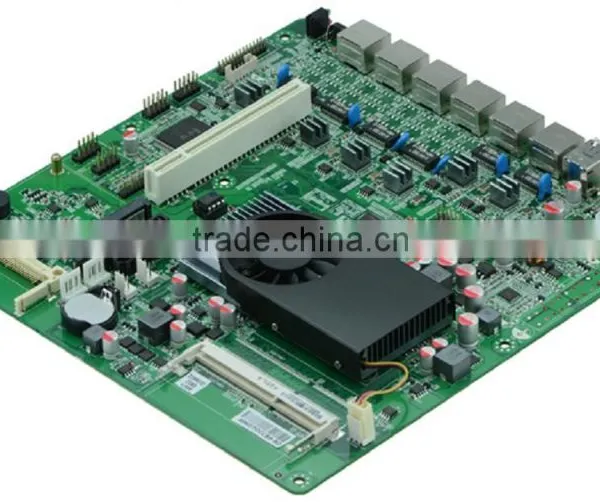

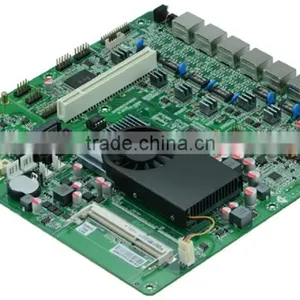

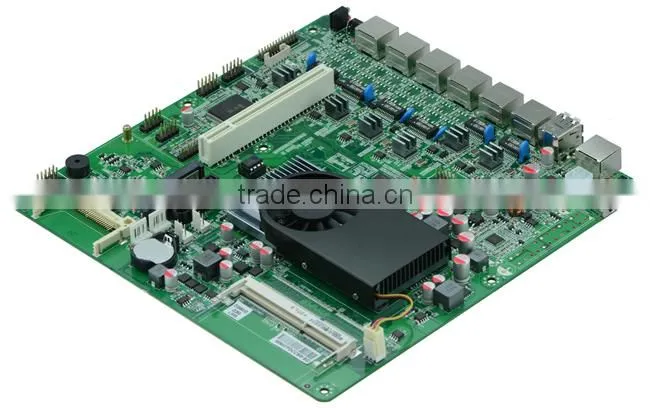

3. D25SL VER: 2.0 side view
Integrated Intel 6 * 82583V Gigabit LAN chip supports Wake on LAN / PXE function supports USB WIFI / SSD solid state drive / 6 USB / 2 COM ports
Has 4 * SATA / 1 * CF slot / 1 * PCI slot supports LPT print board DC12V power supply
Model NO. |
D25SL VER:2.0 |
CPU |
Intel® Atom D2550 dual-core Processor(1.86GHz) |
Chipset |
Intel® ICH10R Chipset |
Memory |
1* SO DDR3 800/1066MHz, Max. up to 4GB |
Graphics |
Intel® GMA3600 Graphics,support VGA display output |
Expansion Slots |
1* MSATA, support SSD/USB WIFI |
|
1* PCI |
LAN |
6* Intel® 82583V 10/100/1000Mbps Ethernet |
Support Wake-on-LAN and PXE function |
|
Storage |
4* SATAⅡ 3Gb/s |
|
1* CF card |
Rear I/O |
1* COM(CISCO standard interface) |
|
2* USB 2.0 |
|
6* RJ-45 LAN |
|
1* POWER |
|
1* LED1(POWERLED/HDDLED) |
|
1* 12V DC_JACK input |
Internal I/O |
1* JVGA 2*5pin |
|
1* LAN_LED 2*13pin |
|
1* LPT |
|
4* USB 2.0 |
|
1* RS232 |
|
1* FP1 (2*5pin Front panel buttons and LED connected) |
|
1* PS/2 |
|
1* ATX_12V (Can be used as input and output 12V power connector) |
|
2* PWROUT (Hard drive power connector) |
Fan interface |
1* CPUFAN 2* SYSFAN(3pin) |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
AMI 16MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC12V Single power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
220mm x 220mm |
