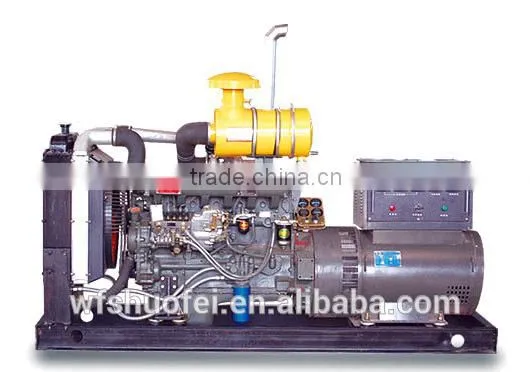

Help Center100kw General Generator Set
Related Products
-
120KW Diesel Generators IndustrialUS$ 5,060 - 5,290MOQ: 1 Set -
Diesel 150kw Geneator AlternatorUS$ 6,330 - 6,790MOQ: 1 Set
-
30kw Diesel Generator 1500 RpmUS$ 1,840 - 2,350MOQ: 1 Set
-
Diesel 150kw Generator 1800 RpmUS$ 6,330 - 6,790MOQ: 1 Set
-
4 Stroke 500KW Generator 625kva DieselUS$ 22,080 - 34,615MOQ: 1 Set
Specifications
general generator set1. Factory direct price
2. Engine model: R6105AZLD
3. Water cooled
4. Certificate: ISO9001:2008
| DETAILED PARAMETERS | ||
| Generator | Genset Model | LX-100KW |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8lagging | |
| Rated Voltage(V) | 400/230 | |
| Rated Power (KW/KVA) | 100/125 | |
| Rated Current(A) | 180 | |
| Phase/Wire | 3Ph, 4Wr | |
| Weight (kg) | 1500 | |
| Diesel Engine | Model | R6105AZLD |
| Type | Water-cooled, inline, 2-stroke, direct injection,1500 rpm | |
| Rated Power (kw) | 100 | |
| Intake Type | Turbocharged intercooled | |
| No. of Cylinder | 6.L | |
| Bore×Stroke (mm) | 105X130 | |
| Compression Ratio | 16:1 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤111 | |
| Exhaust Temperature (℃) | ≤600 | |
| Starting Model | DC 24V electric starter | |
| Specific fuel consumption(g/KW.h) | ≤224.2 | |
| Exhaust back pressure (kpa) | 3 | |
| Alternator | Model | TZH-100 |
| Rated Power (KW/KVA) | 100/125 | |
| Type | Three-phase synchronous | |
| Adjustable voltage amplitude | ±5% | |
| Speed regulation mode | Auto or Manual | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
1). Manufacturer or Trading Company

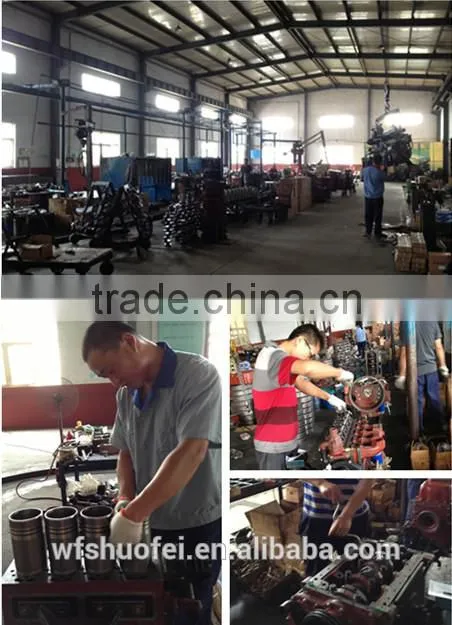

Our factory is a generator manufacturer for 11 years, and specializing in the production of diesel generators from 15KW to 1000KW
2). MOQ.
1set
3). Spare Parts
a. Free spare parts with the order shipped
b. Within 10 working days after payment send by express.
4). Shipment
We can help customer to arrange shipment.
5). Delivery Time
One container 20~30days
6). Payment Terms
30% deposit T/T, 70% T/T before shipment or L/C at sight
7). Generator Options
Diesel Generators : 15kw to 1000kw
8). Generator Logo
a. We have our own logo LX
b. We can make customers own logo in the generator for free.
9). Package and Loading qty
a. Nude Package or Wooden Package
b. Loading qty : as the container's size
