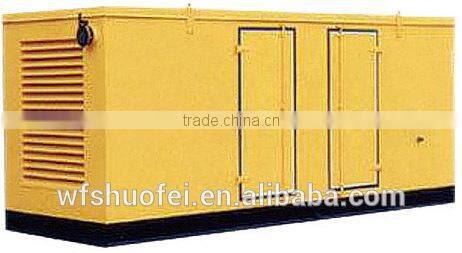

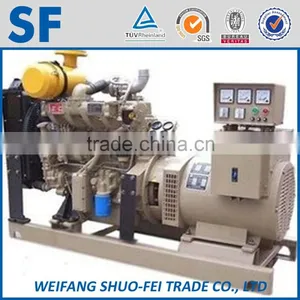

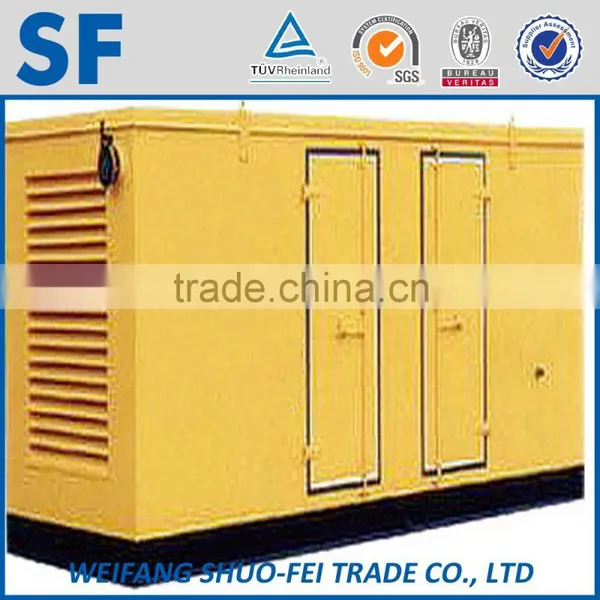

4 Stroke 500KW Generator 625kva Diesel

US$ 22,080 - 34,615 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

TZH-500

Weifang Shuo-Fei Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name LX

Model Number TZH-500

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50HZ

Rated Power 500KW

Rated Voltage 400/230V

Rated Current 900A

Specifications

generator 625kva diesel
1. Factory direct price
2. Engine model: 12V135BZLD-2
3. Water cooled
4. Certificate: ISO9001:2008

Product Description

DETAILED PARAMETERS
Generator	Genset Model	LX-500KW
	Rated Frequency	50HZ
	Power Factor	0.8lagging
	Rated Voltage(V)	400/230
	Rated Power (KW/KVA)	500/625
	Rated Current(A)	900
	Phase/Wire	3Ph, 4Wr
	Weight (kg)	4250
Diesel Engine	Model	12V135BZLD-2
	Type	Water-cooled, inline, 4-stroke, direct injection,1500 rpm
	Rated Power (kw)	505
	Intake Type	Natural aspirated
	No. of Cylinder	12.L
	Bore×Stroke (mm)	135X155
	Compression Ratio	16.5:1
	Mechanical Governor Rated	≤5%
	Electronical Governor Rated	≤1%
	Noise Level (dBA)	≤73
	Exhaust Temperature (℃)	≤600
	Starting Model	DC12V electric starter
	Specific fuel consumption(g/KW.h)	≤219
	Exhaust back pressure (kpa)	3
Alternator	Model	STC-500
	Rated Power (KW/KVA)	500/625
	Type	Three-phase synchronous
	Adjustable voltage amplitude	±5%
	Speed ragulation mode	Auto or Manual
	Excitation Type	Brushless
	Insulation Class	H
