WZFQ-A Paper Slitter China Good Quality Manufacture

WZFQ-A Paper Slitter China Good Quality Manufacture photo-1

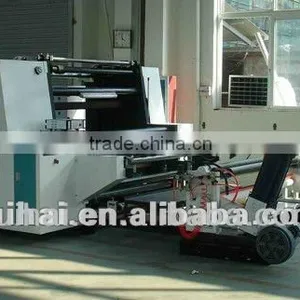

WZFQ-A Paper Slitter China Good Quality Manufacture photo-2

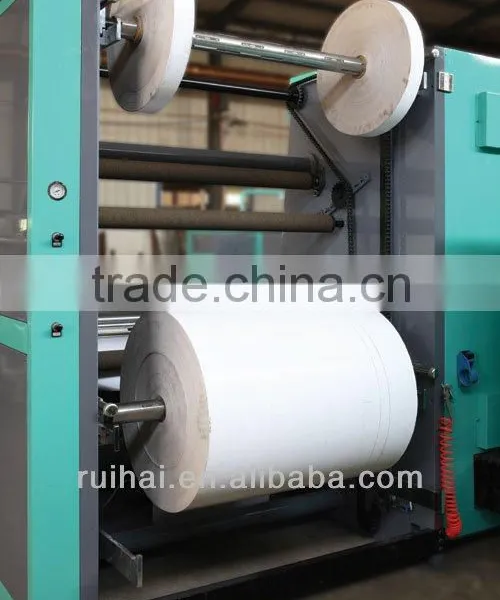

WZFQ-A Paper Slitter China Good Quality Manufacture photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slitting Rewinder
Computerized Yes
Place of Origin Zhejiang, China
Brand Name RUIHAI
Model Number WZFQ-A
Voltage 380v

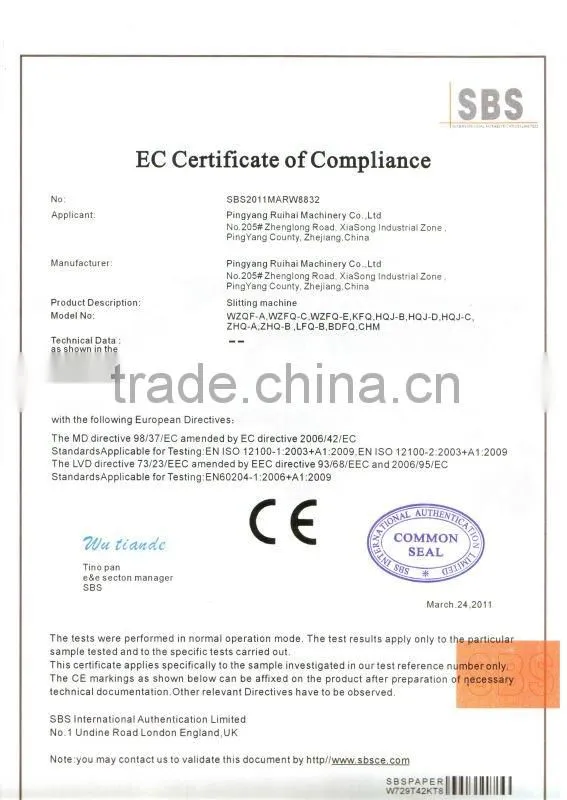

Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Performance and Characteristics


This  high speed  paper slitter is used for slitting and rewinding various large rolling materials such as paper, (50g/~300g/ capacitance paper, bill paper), double-face adhesive tape, coated paper, aluminum foil, PVC, plastic material, etc.

1)This paper slitter use three motors synchronous for controlling, automatic taper tension, central surface reeling. Frequency converter timing for main motor, keeping speed up and stable operation. 2)paper slitter has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.

3)paper slitter adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit. (or liquid press style subtense system)

4)paper slitter equipped with automatic waste film blowing device. Automatic material loading by pneumatic, matched with inflatable shaft (3"or 6") or pneumatic non-shaft device



Machine Data



Model

WZFQ- 1100A

WZFQ- 1300A

WZFQ- 1600A

Max. Width of unwinding

1100mm

1300mm
1600mm

Max. Diameter of unwinding

Φ1400mm

Φ1400mm

Φ1400mm

Min. Width of slitting

30mm

30mm
30mm

Max. Diameter of rewinding

Φ800mm

Φ800mm
Φ800mm

Speed

10-160m/min

10-160m/min
10-160m/min

Total power

12kw

12.8kw

16kw

Suitable power supply

380V/50hz

380V/50hz

380V/50hz

Weight (approx. )

3000kg

3200kg

3800kg

Overall dimension(LxWxH)

3000x2000x1600(mm)

3000x2400x1600(mm)

3000x2700x1600(mm)


Design and specifications are subject to change without notice.

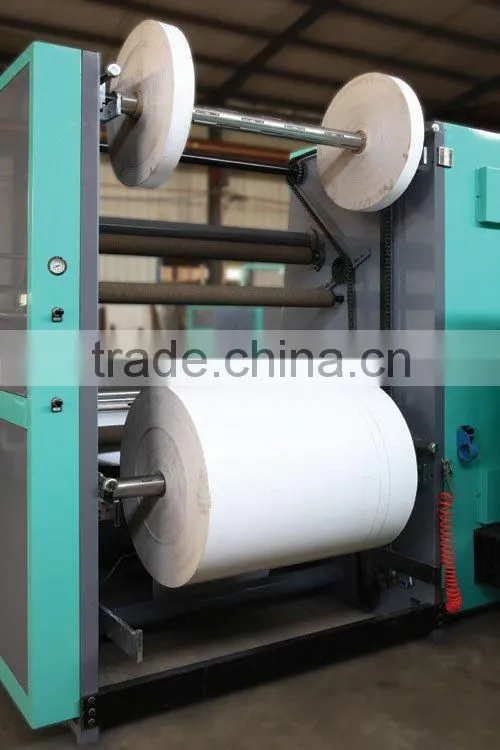

Back viewing of the paper slitter:

WZFQ-A paper slitter China good quality manufactureWZFQ-A paper slitter China good quality manufacture

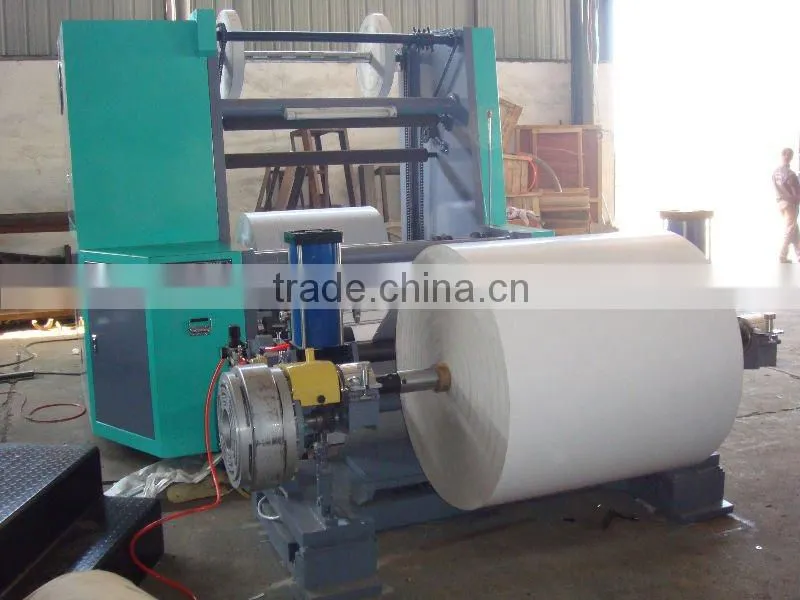

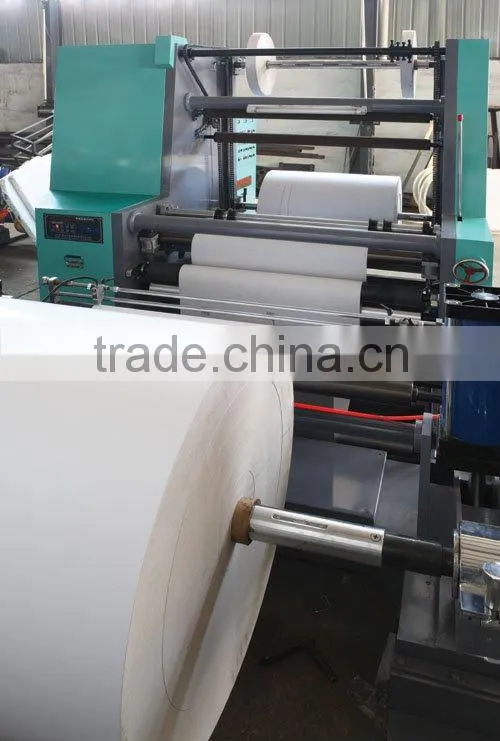

Front viewing of the paper slitter:

WZFQ-A paper slitter China good quality manufacture

WZFQ-A paper slitter China good quality manufactureWZFQ-A paper slitter China good quality manufacture
