Comments:
We are the final manufacture of this kind of A4 sheeting machine in China
Performance and Characteristics
This A4 paper sheeting machine ( A4 paper sheeter )is suitable for cutting big rolling packaging materials such as paper,paper-plastic,multicolor laminated material,etc.
1. It adopts PLC touch screen control, servo motorfor controlling constant-length cutting.
2.it with slitting knives to slitting then cut to have different sizes of paper like a4,a3,a2,a1 or any other sizes .width and length can be both adjustabl
2. It adopts pneumatic,photoelectric sensor for controlling transminssion system,with photo,electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
3. This machine has the functions of the frequency converter timing device,auto-matic counting,stop working by alarm magnetic powder tension control,can be cutted vertically,adopt blower to get rid of waste.
| Model | HQJ-1100D(1 or 2 or 4 roll) | HQJ-1400D(1or2 or 4roll) |
|
Max.width of cutting |
1100mm | 1400mm |
|
Max diameter of material |
Φ1400mm | Φ1400mm |
|
Min.width of cutting |
50mm | 50mm |
|
Length of cutting |
20-400mm | 20-400mm |
|
Speed |
10-140times/min | 10-140times/min |
|
Precision |
±0.2mm | ±0.2mm |
|
Total Power |
9.5kw | 11kw |
|
Weight |
3500kg | 4000kg |
|
Overall dimension(LXWXH) |
8600x1500x2000mm | 8600x1800x2000mm |

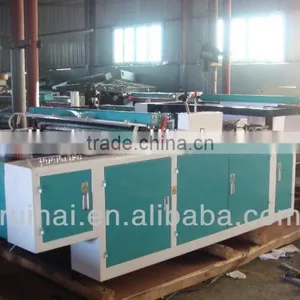

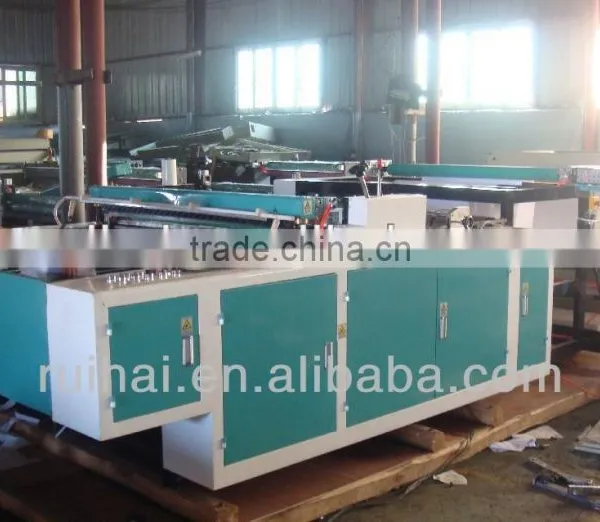

The Machine with 1 paper roll:
The Machine with 2 paper roll:
Unwinding stand:

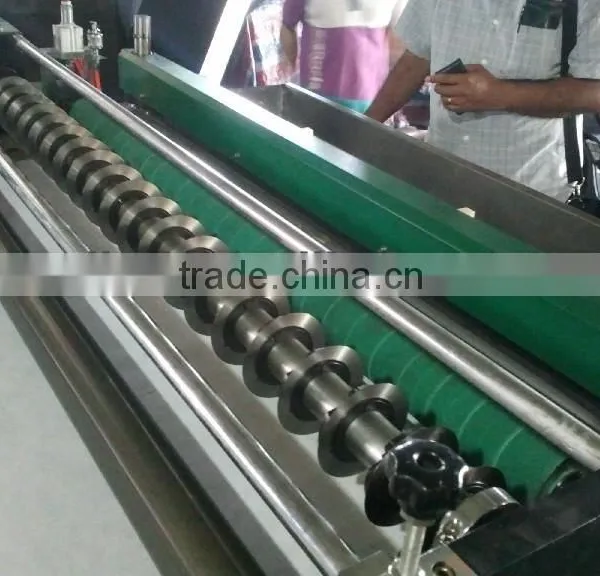

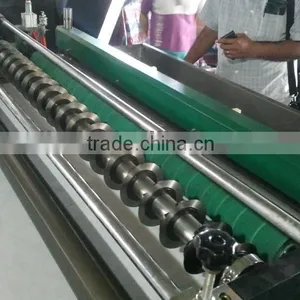

Cutting parts:
Back side:
Engineer testing the machine in good working condition before shippment
Packing in strong wooden cases for export and Loading in the container
CE Certified Ruihai Machinery Company Brand as the final manufacture
If need more details or vedio of the machine please be free to contact with us
Contact : Mr Avan Skype:avanmachine Whatsapp(wechat):86-15605770925
