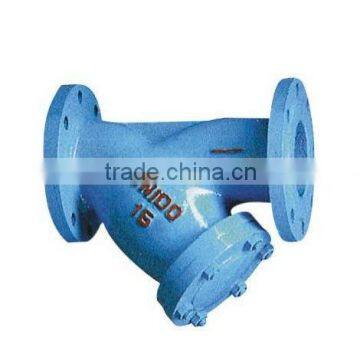

flange connection stainless steel Y basket filter

FOB Price

USD $1 - $50 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Qingdao Shanghai Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Return Filter
Structure	Cartridge	Place of Origin	Henan, China
Brand Name	D.K	Model Number	FIR,all models
Weight	150KG	Dimension(LWH)	15125mm,6001250mm
Certification	ISO9000	Warranty	1year
After-sales Service Provided	Overseas service center available

Product Description

Y basket filter

Material:stainless steel, carbon steel

property:Housing material : carbon steel , stainless steel

Nominal diameter : DN15-DN600 mm

Filter screen material : stainless steel

Sealing material : NBR , pllytef (according to working medium )

Working temperature : no more than 90 centigrade

Connection type : flange Y basket filter

Normal pressure : 1.6-10MPa

Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

Introduction:Y type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end .

effect:Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .

feature:easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .

Technical parameters Y basket filter

Housing material : carbon steel , stainless steel
Nominal diameter : DN15-DN600 mm
Filter screen material : stainless steel
Sealing material : NBR , pllytef (according to working medium )
Working temperature : no more than 90 centigrade
Connection type : flange
Normal pressure : 1.6-10MPa
Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

Model and size Y basket filter

Model	Size (mm)					Valid filter area m2
Model	DN	In	L	H	H1	Valid filter area m2
FIR-15×*	15	1/2	125	70	150	0.00185
FIR-20×*	20	3/4	145	70	150	0.00281
FIR-25×*	25	1	160	80	160	0.00343
FIR-32×*	32	1 1/4	180	90	180	0.00486
FIR-40×*	40	1 1/2	200	100	240	0.00767
FIR-50×*	50	2	220	130	250	0.01161
FIR-65×*	65	2 1/2	260	165	350	0.02111
FIR-80×*	80	3	280	195	390	0.03029
FIR-100×*	100	4	320	230	450	0.04063
FIR-125×*	125	5	320	230	490	0.05523
FIR-150×*	150	6	380	335	580	0.07709
FIR-200×*	200	8	495	420	690	0.11967
FIR-250×*	250	10	595	500	800	0.19155
FIR-300×*	300	12	640	580	950	0.26738
FIR-350×*	350	14	750	650	1100	0.30926
FIR-400×*	400	16	800	700	1360	0.40946
FIR-450×*	450	18	850	800	1500	0.55638
FIR-500×*	500	20	900	875	1650	0.65385
FIR-550×*	550	22	1000	940	1780	0.76956
FIR-600×*	600	24	1250	1050	1900	0.87528

Y basket filter

...
