DN100 Stainless Steel y Type Valve
- Tianjin Shanghai Qingdao
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Other, Y type filter | |
| Pressure | High Pressure | Power | Hydraulic | |
| Material | Other, Stainless Steel, carbon steel stainless steel | Temperature of Media | High Temperature | |
| Media | Water | Port Size | As request | |
| Place of Origin | Henan, China | Model Number | y type valve | |
| Brand Name | D.King |
Product Description
DN100 stainless steel y type valve---discription
1.Material: stainless steel, carbon steel;
2.effect: Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use;
3.Introduction: Y type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end;
4.feature: easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination;
ing principle: After the liquid through the housing into the basket cartridge ,solid partricles will be blocked within the basket cartridge , and the clean fluid trough the basket cartridge outoff the filter.
DN100 stainless steel y type valve---Technical parameters
1.Housing material : carbon steel , stainless steel;
2.Nominal diameter : DN15-DN600 mm;
3.Filter screen material : stainless steel;
4.Sealing material : NBR , pllytef (according to working medium );
5.Working temperature : no more than 90 centigrade;
6.Connection type : flange;
7.Normal pressure : 1.6-10MPa;
8.Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh);
perty:Housing material : carbon steel , stainless steel.
DN100 stainless steel y type valve---Advantage
1.all our products size and design are customizing available;
2.About twenty years filtration products manufacturing and 3 years exportation experience and have exported to all over the world;
3.Various kinds of filters and filtration equipment available, such as air filter, water filter, oil filter, carbon filter, acid filter, oil purifier, filter bag, bag filter, filter cartridge , filter equipments etc;
4.we’re proud to say that our products are manufactured to a very high standard right here in CHINA;
5.We can provide sample for quality testing and return sample cost when customer place the order;
6.Delivery can be in as little as 10 days;
7.7×24 hour email and phone call service before and after sale;
8.Written in stone promise that 100% money back guarantee in 60 days;
9.This strainer is indispensable to the pipeline accessories, installed in the pipeline to filter out the solid impurities, ensure the flow line equipment system normal operation.

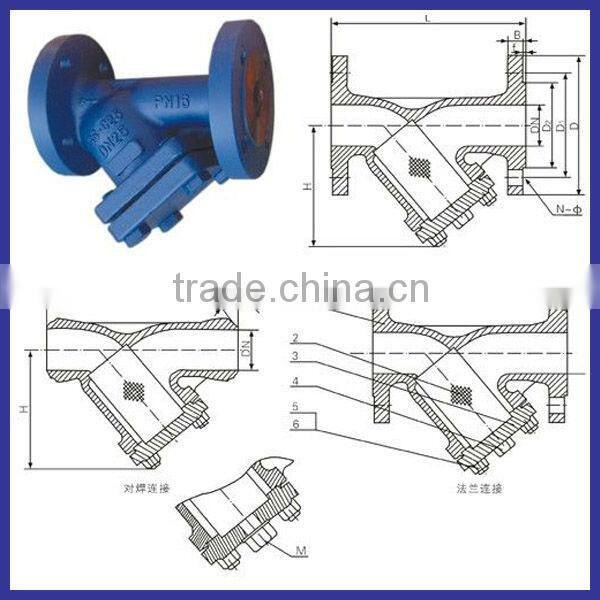

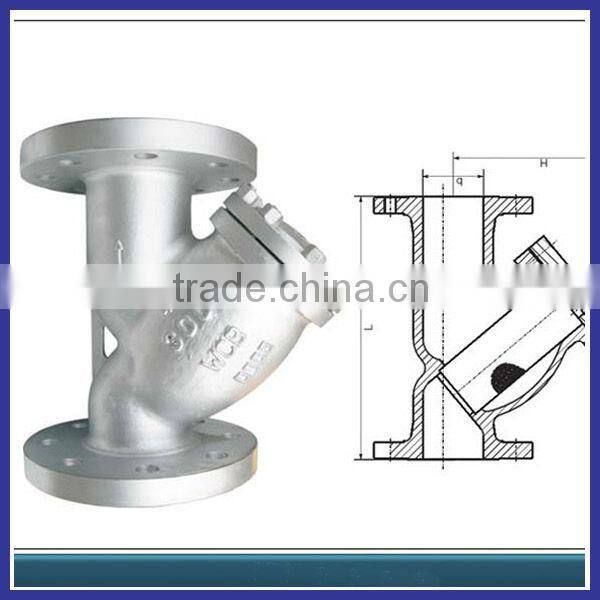

DN100 stainless steel y type valve---Model and size
Model | Size (mm) | Valid filter area m2 | ||||
DN | In | L | H | H1 | ||
FTR-15×* | 15 | 1/2 | 125 | 70 | 150 | 0.00185 |
FTR-20×* | 20 | 3/4 | 145 | 70 | 150 | 0.00281 |
FTR-25×* | 25 | 1 | 160 | 80 | 160 | 0.00343 |
FTR-32×* | 32 | 1 1/4 | 180 | 90 | 180 | 0.00486 |
FTR-40×* | 40 | 1 1/2 | 200 | 100 | 240 | 0.00767 |
FTR-50×* | 50 | 2 | 220 | 130 | 250 | 0.01161 |
FTR-65×* | 65 | 2 1/2 | 260 | 165 | 350 | 0.02111 |
FTR-80×* | 80 | 3 | 280 | 195 | 390 | 0.03029 |
FTR-100×* | 100 | 4 | 320 | 230 | 450 | 0.04063 |
FTR-125×* | 125 | 5 | 320 | 230 | 490 | 0.05523 |
FTR-150×* | 150 | 6 | 380 | 335 | 580 | 0.07709 |
FTR-200×* | 200 | 8 | 495 | 420 | 690 | 0.11967 |
FTR-250×* | 250 | 10 | 595 | 500 | 800 | 0.19155 |
FTR-300×* | 300 | 12 | 640 | 580 | 950 | 0.26738 |
FTR-350×* | 350 | 14 | 750 | 650 | 1100 | 0.30926 |
FTR-400×* | 400 | 16 | 800 | 700 | 1360 | 0.40946 |
FTR-450×* | 450 | 18 | 850 | 800 | 1500 | 0.55638 |
FTR-500×* | 500 | 20 | 900 | 875 | 1650 | 0.65385 |
FTR-550×* | 550 | 22 | 1000 | 940 | 1780 | 0.76956 |
FTR-600×* | 600 | 24 | 1250 | 1050 | 1900 | 0.87528 |

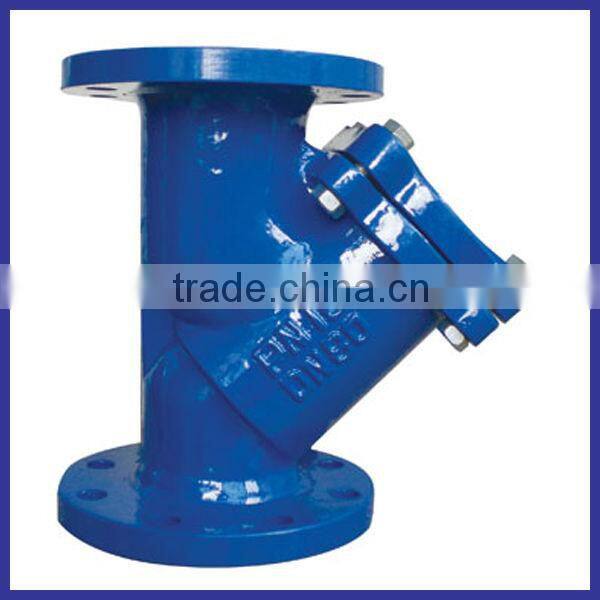

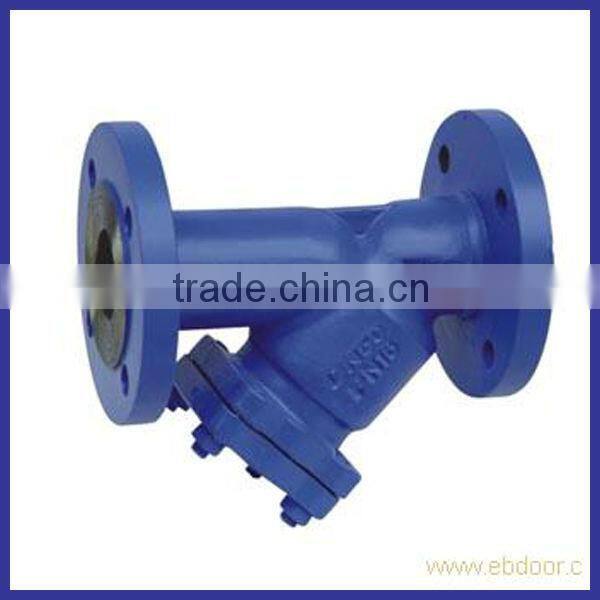

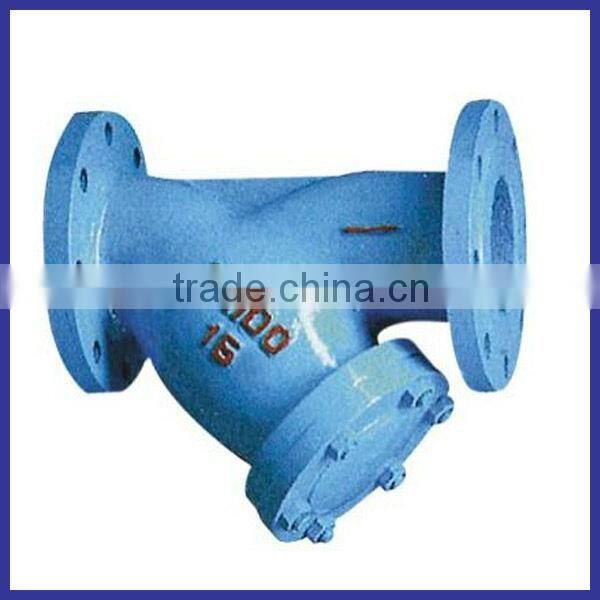

DN100 stainless steel y type valve---picture

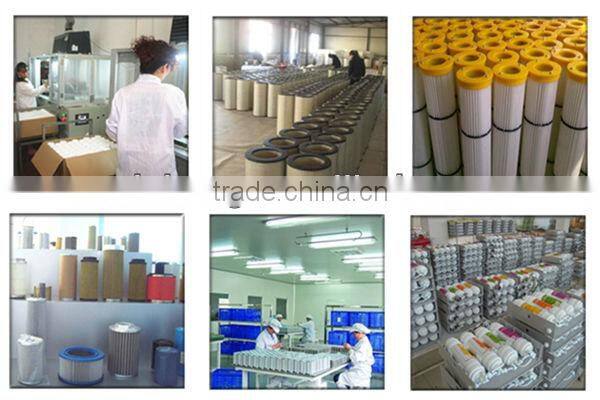

DN100 stainless steel y type valve---Our company
| Xinxiang Dakang industry Co., LTD was founded in 1987.it is a filters, filter professional manufacturers. |
| Our company is an ISO9001:2008 certified enterprise for filter and filter eqiupment. |
| Our company has accumulated abundant experience in producing filter, filter element and related equipments. |
| We have trained a professional team with professional techniques and qualifications. |
| With the target of international market, our products of filters cover colliery industry, power industry, metallurgy industry and special type vehicle and ship |
Contact me
If you are interested in this product , pls sent the following questions to us , we will calculate the
best to you with the specifications :
nnection size;
ing medium;
3.flow capacity;
ing pressure;
5.micron rating;
6.material.
...
