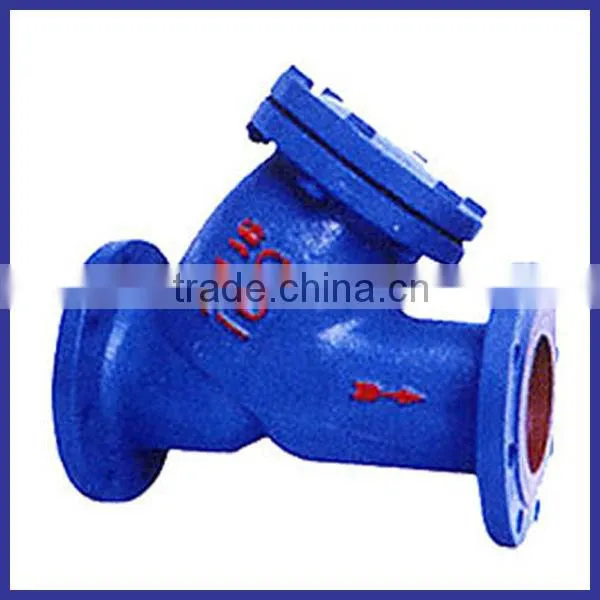

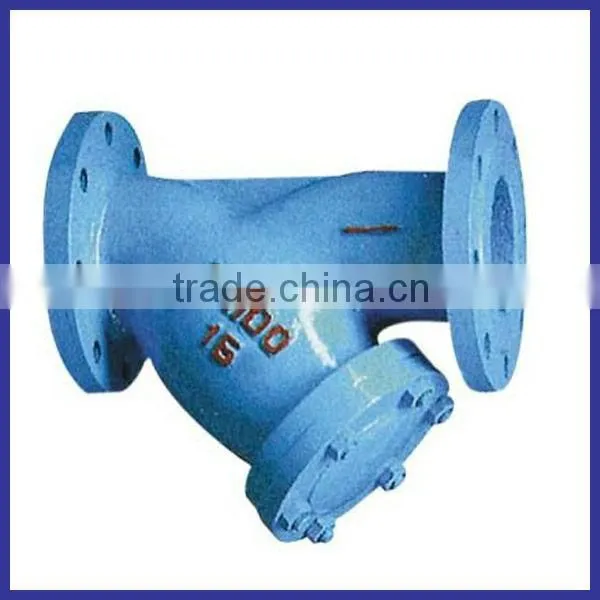

2013 best seller Y type water strainer 3 factory
Material:stainless steel, carbon steel
2013 best seller Y type water strainer 3 factory
property:Housing material : carbon steel , stainless steel
Nominal diameter : DN15-DN600 mm
Filter screen material : stainless steel
Sealing material : NBR , pllytef (according to working medium )
Working temperature : no more than 90 centigrade
Connection type : flange
Normal pressure : 1.6-10MPa
Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)
2013 best seller Y type water strainer 3 factory
Introduction:Y type filter is belong to pipeline rude filter series .Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end .
effect:Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use .
feature:easy made, advanced structure, easy install and washing, big accept dirt, small resistance, easy drain contamination.
2013 best seller Y type water strainer 3 factory
Technical parameters
- Housing material : carbon steel , stainless steel
- Nominal diameter : DN15-DN600 mm
- Filter screen material : stainless steel
- Sealing material : NBR , pllytef (according to working medium )
- Working temperature : no more than 90 centigrade
- Connection type : flange
- Normal pressure : 1.6-10MPa
- Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)
2013 best seller Y type water strainer 3 factory

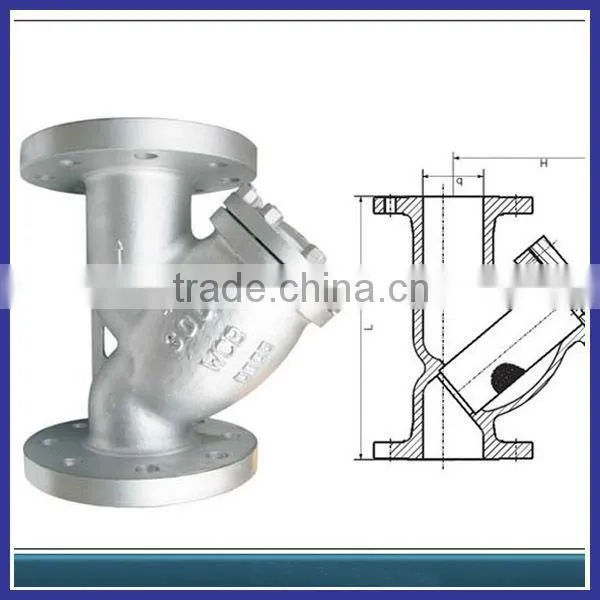

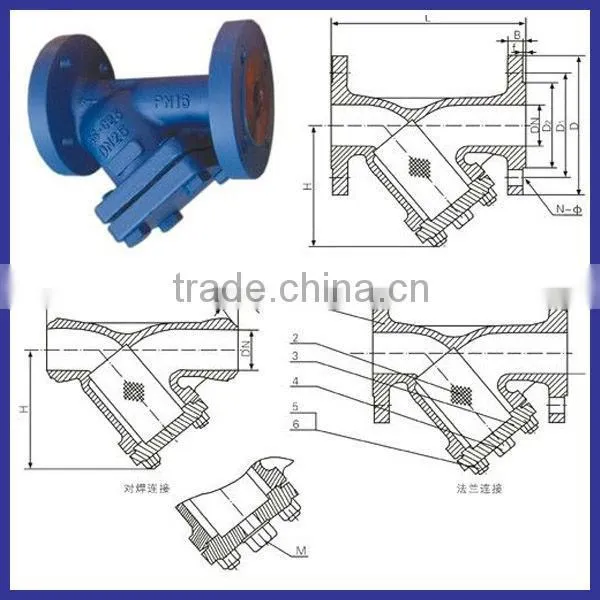

Model and size
Model |
Size (mm) |
Valid filter area m2 |
||||
DN |
In |
L |
H |
H1 |
||
FIR-15×* |
15 |
1/2 |
125 |
70 |
150 |
0.00185 |
FIR-20×* |
20 |
3/4 |
145 |
70 |
150 |
0.00281 |
FIR-25×* |
25 |
1 |
160 |
80 |
160 |
0.00343 |
FIR-32×* |
32 |
1 1/4 |
180 |
90 |
180 |
0.00486 |
FIR-40×* |
40 |
1 1/2 |
200 |
100 |
240 |
0.00767 |
FIR-50×* |
50 |
2 |
220 |
130 |
250 |
0.01161 |
FIR-65×* |
65 |
2 1/2 |
260 |
165 |
350 |
0.02111 |
FIR-80×* |
80 |
3 |
280 |
195 |
390 |
0.03029 |
FIR-100×* |
100 |
4 |
320 |
230 |
450 |
0.04063 |
FIR-125×* |
125 |
5 |
320 |
230 |
490 |
0.05523 |
FIR-150×* |
150 |
6 |
380 |
335 |
580 |
0.07709 |
FIR-200×* |
200 |
8 |
495 |
420 |
690 |
0.11967 |
FIR-250×* |
250 |
10 |
595 |
500 |
800 |
0.19155 |
FIR-300×* |
300 |
12 |
640 |
580 |
950 |
0.26738 |
FIR-350×* |
350 |
14 |
750 |
650 |
1100 |
0.30926 |
FIR-400×* |
400 |
16 |
800 |
700 |
1360 |
0.40946 |
FIR-450×* |
450 |
18 |
850 |
800 |
1500 |
0.55638 |
FIR-500×* |
500 |
20 |
900 |
875 |
1650 |
0.65385 |
FIR-550×* |
550 |
22 |
1000 |
940 |
1780 |
0.76956 |
FIR-600×* |
600 |
24 |
1250 |
1050 |
1900 |
0.87528 |
2013 best seller Y type water strainer 3 factory
About us
Xinxiang D.King Industry Co., Ltd. mainly produce complete range of filters, filter elements, filter machines and hydraulic accessories for fluid power industry.
It's located in "China filtration city Xinxiang". D.King has superior R & D team, professional technical team, experienced overseas sales team and perfect after-sales service system.
If you are interested in this product , pls sent the following questions to us , we will calculate the best to you with the specifications :
- size : OD , height
- material
- micron rating
- quantity
...
