Help CenterSS Simplex Basket Filter
Related Products

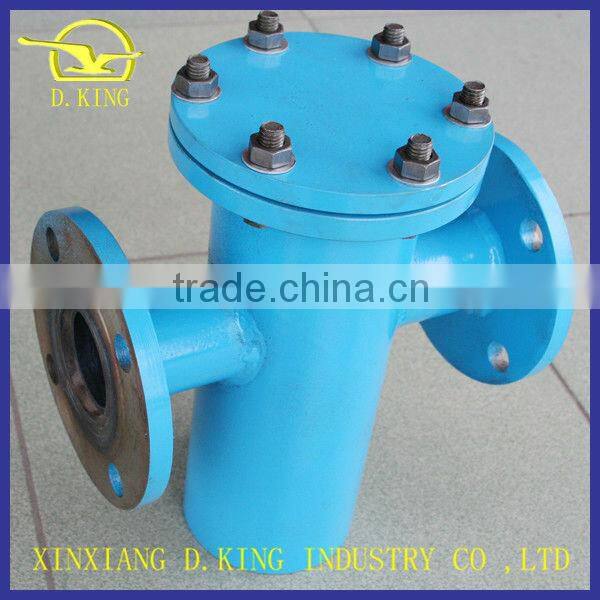

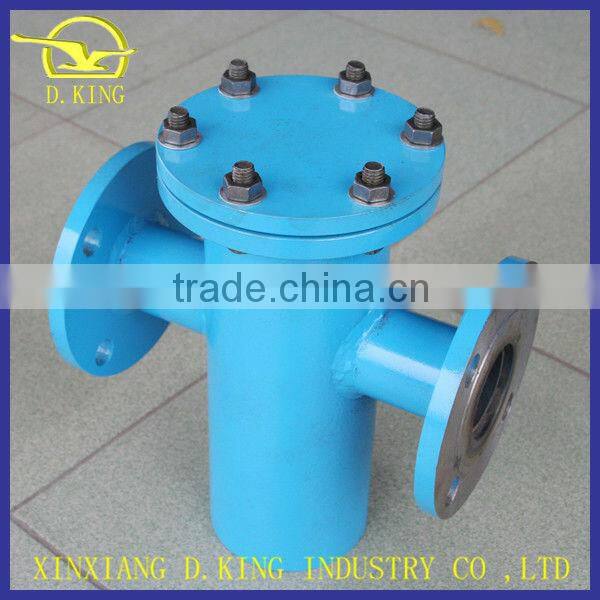

simplex basket filter
Material:stainless steel, carbon filter
effect:T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system
feature:easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .
simplex basket filter Technical parameters
- Housing material : carbon steel , stainless steel
- Nominal diameter : DN40-DN400 mm
- Filter screen material : stainless steel
- Sealing material : NBR , pllytef (according to working medium )
- Working temperature : no more than 90 centigrade
- Connection type : flange
- Normal pressure : 1.6MPa
-
Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)
simplex basket filter Application:
Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon .
Chemical production of corrosive materials .eg : caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid .
Low temperature materials in the refrigeration . eg : liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid .
Light food , pharmaceutical production , health requirements of the material . eg : beer , drink , dairy products , medicine appliance .
Model and size
simplex basket filter
Model |
Size(mm) |
Valid filter area m2 |
||||
DN |
In |
L |
H |
H1 |
||
FTT-40×* |
40 |
1 1/2 |
256 |
149 |
306 |
0.0029 |
FTT-50×* |
50 |
2 |
256 |
149 |
306 |
0.0039 |
FTT-65×* |
65 |
2 1/2 |
292 |
170 |
348 |
0.0053 |
FTT-80×* |
80 |
3 |
312 |
182 |
384 |
0.0079 |
FTT-100×* |
100 |
4 |
362 |
210 |
473 |
0.0133 |
FTT-125×* |
125 |
5 |
420 |
235 |
529 |
0.0204 |
FTT-150×* |
150 |
6 |
460 |
260 |
581 |
0.0273 |
FTT-200×* |
200 |
8 |
560 |
320 |
694 |
0.0462 |
FTT-250×* |
250 |
10 |
670 |
380 |
821 |
0.0699 |
FTT-300×* |
300 |
12 |
780 |
430 |
949 |
0.1001 |
FTT-350×* |
350 |
16 |
830 |
450 |
1023 |
0.1205 |
FTT-400×* |
400 |
20 |
910 |
530 |
1166 |
0.1585 |
...
