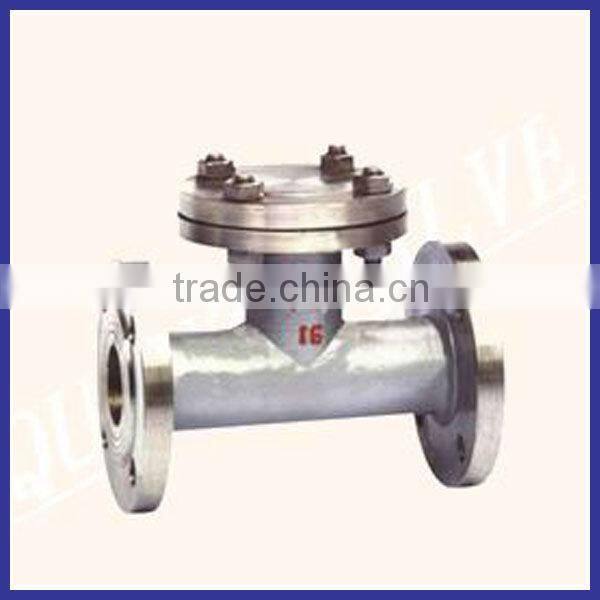

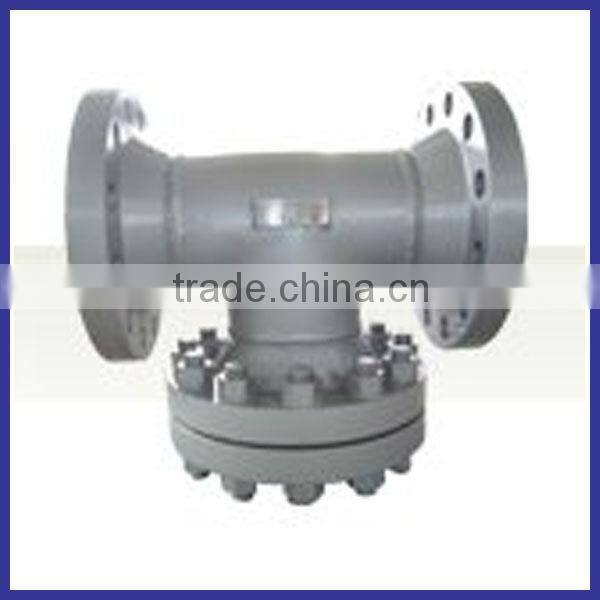

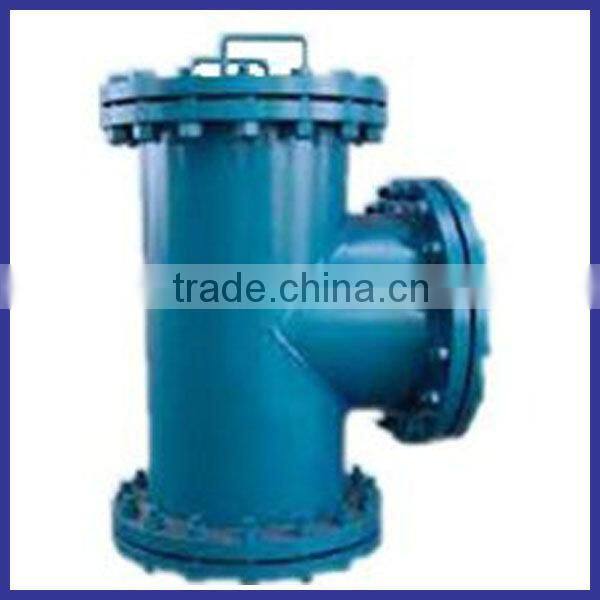

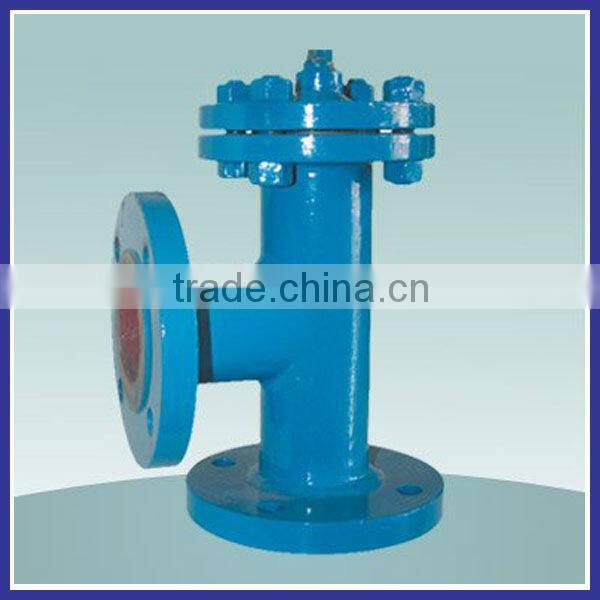

High Quality mp Cartridge Filter

T cartridge filter

Material:stainless steel, carbon filter

effect:T type filter is belong to pipeline rude filter series . Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use . T type filter is a kind of indispensable filtering device which is transport medium pipeline system

feature:easy made , advanced structure , easy install and washing , big accept dirt , small resistance , easy drain contamination .                  T cartridge filter

Technical parameters

1. Housing material : carbon steel , stainless steel
2. Nominal diameter : DN40-DN400 mm
3. Filter screen material : stainless steel
4. Sealing material : NBR , pllytef (according to working medium )
5. Working temperature : no more than 90 centigrade
6. Connection type : flange
7. Normal pressure : 1.6MPa                           T cartridge filter
8. Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

Application:

Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon .

Chemical production of corrosive materials .eg : caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid .

Low temperature materials in the refrigeration . eg : liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid .

Light food , pharmaceutical production , health requirements of the material . eg : beer , drink , dairy products , medicine appliance .                           T cartridge filter

Model and size

                                                                                                           T cartridge filter

...
