Specifications
water treatment dupble set water filter for industry1.big quantity accept dirt
2.structure strict reasonable
3.DN:15-90m
water treatment dupble set water filter for industry
Features:
Switching valves(1 piece)
pressure gauges (2pcs)
Differential pressure transducer(1 piece)
Housing and filter element(2pcs)
Balanced valve (1 piece)
gasket and O-ring(2sizes ,2pcs)

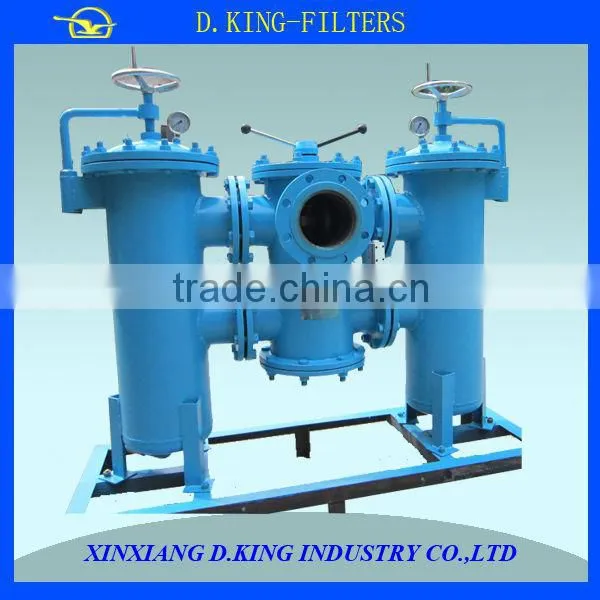

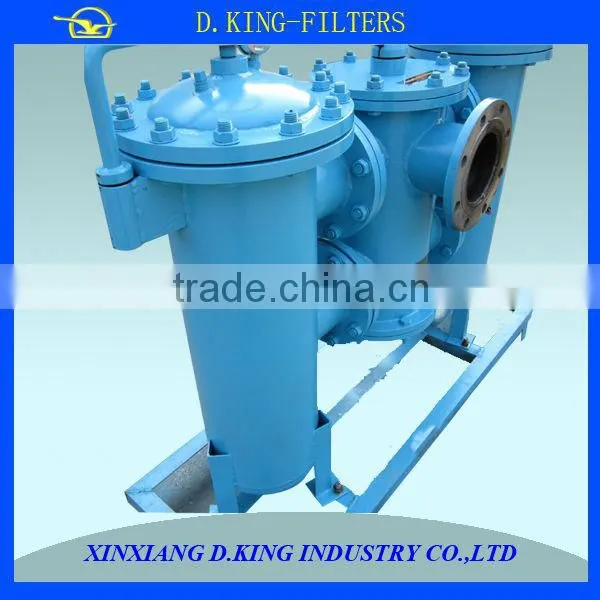

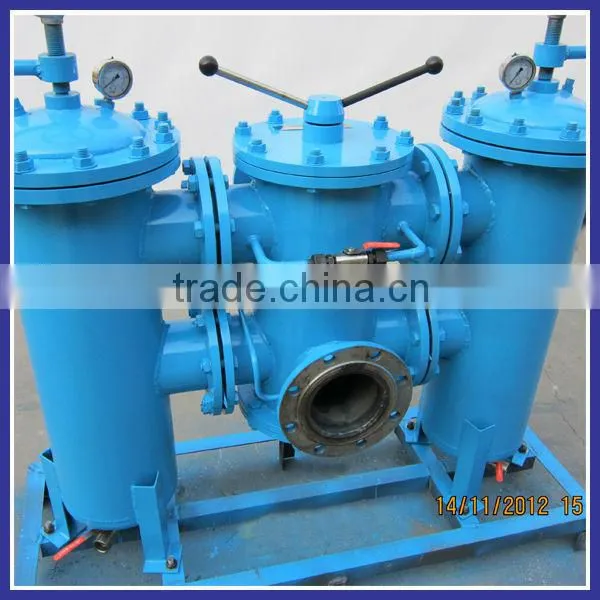

1.Introduction
Duplex return filter?SYLQ-R series is made of two monocular and a change valve . matting HYDAC1300 series unite type filter element . The structure of filter simpleness , convenient to use , and with balanced valve and differential pressure send message receptor , in order to reach ensure system security .
There is only one filter to operation in normally work . You can not stop the system then open the pressure balance valve and roll reversing vales .switch to another filter to work , when the filter pressure loss exceed(more than 0.35 MPa ) and then clean or replace the filter element .
2.Specification
This filter is widely used in metallurgical machinery , mining machinery , heavy-duty machinery etc hydraulic system.
| Model | DN(mm) |
Flow capacity(L/min) |
Micron rating(um) |
Nominal pressure(MPa) |
Pressure loss(MPa) |
Mating filter element model |
|
Initial |
Max |
||||||
SYLQ-BL65 |
65 |
400 |
20 |
1.6 |
No more than 0.1 |
0.35 |
BLLX-171265 |
SYLQ-BL80 |
80 |
600 |
BLLX-171464 |
||||
SYLQ-BL100 |
100 |
1000 |
BLLX-231464 |
||||
SYLQ-BL125 |
125 |
2500 |
BLLX-355464 |
||||
SYLQ-BL150 |
150 |
2500 |
BLLX-355464 |
||||
SYLQ-BL200 |
200 |
4000 |
BLLX-355760 |
||||
|
|
||
|

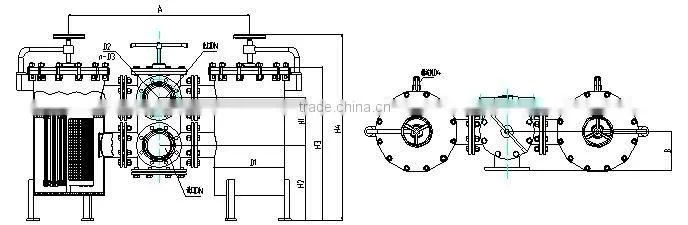

Structure:
|
|
|
Workign princpile: There is only one filter to operation in normally work . You can not stop the system then open the pressure balance valve and roll reversing vales .switch to another filter to work , when the filter pressure loss exceed(more than 0.35 MPa ) |
Xinxiang D.King Industry Co., LTD was founded in 1987. It is a filter professional manufacturer.
1. With ISO9001:2008 certification
2. Accumulated abundant experience in producing filter
3. Export to more than 30 countries
4. Annual turn over up to 20,000,000US dallars
5. With professional technical team
6. OEM service is accepted
1. Good quality raw materials
2. Good sewing jobs by experienced workers
3. Strict quality control implemented right from raw materials to ready-made products
4. Experienced technical and engineering team, scientific technical process
5. Competitive price
6. Excellent services from before sales then export and after-sale
1. Rigorous quality supervision system.
2. Manufacture with 27 years experience.
3. Professional design and production team.
4. With ISO9001:2008 certification.
5. OEM accepted.
6. Short delivery time.
7. Support small order.
8. Quality meeting international standard.
|
|
Xinxiang D.King Industry Co. Ltd | |
| Xiaozhuzhuang Industry Zone, Xinxiang, Henan, China | ||
| Tel: 86-373-3391119 | Fax:86-373-3391116 | |
| TM: cn1001771053 | Skype:stefan.bao | |
