Home > Industrial Equipment & Components > Filtration Equipment & Parts > Industrial Water Filter > Twin Filter Assembly in Line Oil Strainer

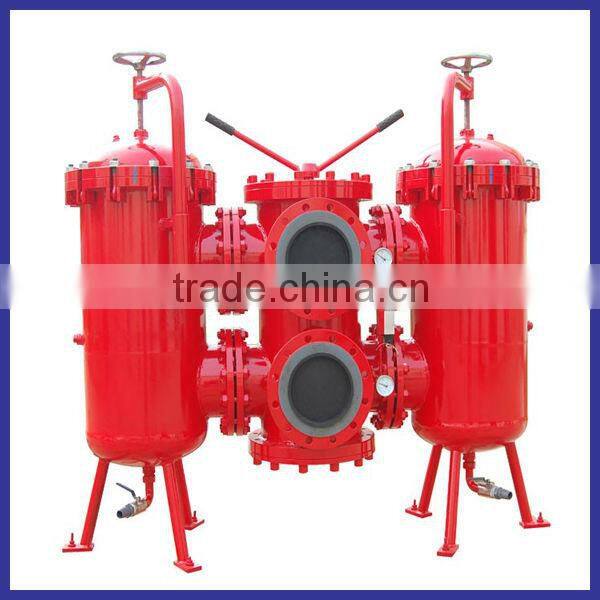

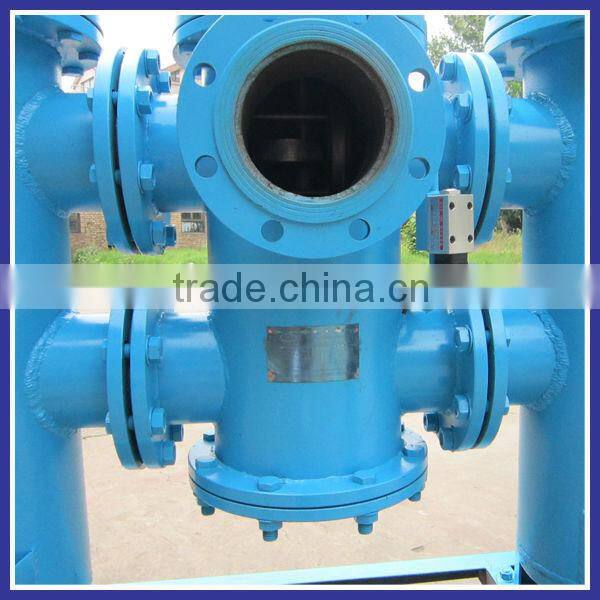

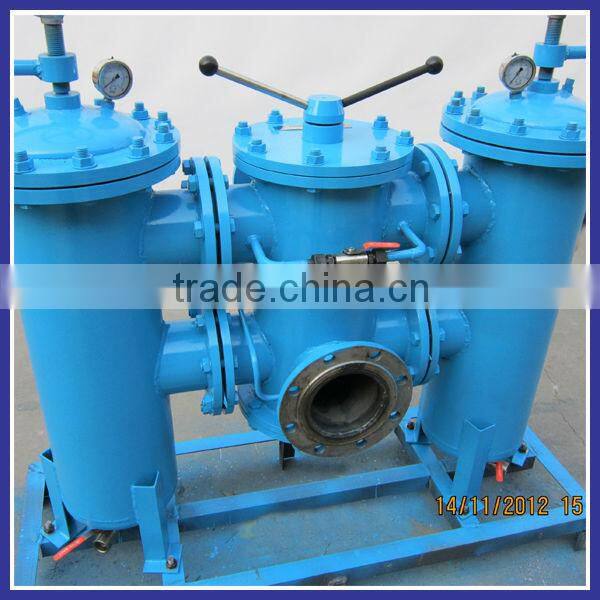

Twin Filter Assembly in Line Oil Strainer

Name: Twin Filter Assembly in Line Oil Strainer
Brand: D.King
SKU: 117781345
Availability: InStock

Twin Filter Assembly in Line Oil Strainer thumbnail-1

Twin Filter Assembly in Line Oil Strainer photo-1

US$ 50 - 200 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

D.King

Model Number:

SRFA

Contact Supplier Request Quote Chat Now

Xinxiang D.king Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name D.King

Model Number SRFA

After-sales Service Provided Engineers available to service machinery overseas

Specifications

twin filter assembly
1.big quantity accept dirt
2.structure strict reasonable
3.DN:15-90mm

D.King brand,to creat excellent quality !!!

Introduction of twin filter assembly

Induction: Duplex oil return filter SYLQ-BL series is made of two monocular and a change valve . mating BLLX series unite type filter element . The structure of filter simpleness , convenient to use , and with balanced valve and differential pressure send message receptor , in order to reach ensure system security .

working principle: There is only one filter to operation in normally work . You can not stop the system then open the pressure balance valve and roll reversing vales .switch to another filter to work , when the filter pressure loss exceed(more than 0.35 MPa ) and then clean or replace the filter element .

Applition: This filter is widely used in metallurgical machinery , mining machinery , heavy-duty machinery etc hydraulic system.

Structure and Technical data

Structure:

1.Switching valves(1 piece)

ure gauges (2pcs)

3.Differential pressure transducer(1 piece)

4.Housing and filter element(2pcs)

5.Balanced valve (1 piece)

6.gasket and O-ring(2sizes ,2pcs)

7.asbestos pad(2pcs)

8.flat gasket,bolts and nuts(16sets)

Technical data:

Model	DN(mm)	Flow rate(L/min)	Micron rating (um)	Pressure (MPa)	Pressure loss(MPa)		By-pass setting(MPa)	Indicator power	Weight (Kg)	Model of element	Quantities of elements
					Initial	Max
SYLQ-R100	100	1300	1 3 5 10 20 30	1.6	0.1	0.35	0.4	24V/48W 220V/50W	610	?1300R*BN/HC	1*2
SYLQ-R125	125	2600							820		2*2
SYLQ-R150	150	2600							850		3*2
SYLQ-R200	200	3900							915		5*2
SYLQ-R250	250	6500							960		6*2
SYLQ-R250	250	7800							990		7*2

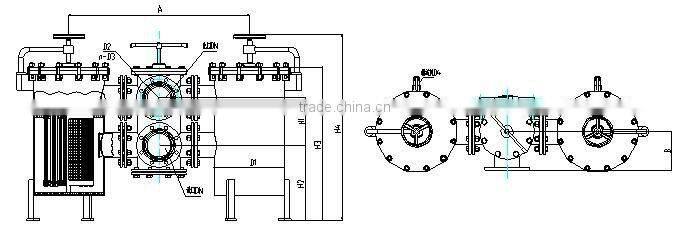

Install and overall size:

Model	Size
Model	DN	D1	D2	n-D3	D4	H1	H2	H3	H4	A	B
SYLQ-R100*	100	219	180	8-18	G1	240	410	1100	1250	760	220
SYLQ-R125*	125	400	210	8-18	G1	300	470	1200	1400	990	250
SYLQ-R150*	150	400	240	8-22	G1	300	470	1200	1400	990	250
SYLQ-R200	200	400	292	12-22	G1	360	500	1250	1450	1100	300
SYLQ-R250	250	500	355	12-26	G1	420	550	1330	1530	1250	350

Company Advantage

Xinxiang D. King industry Co., LTD, formerly of aviation industry 2 groups subordinate enterprise achieving economic entity, was founded in 1987, filters, filter professional manufacturers. Set product development, design, production and experiment, through ISO9001:2000 international quality management system certification. Strong technical force, advanced processing equipment, using three-dimensional auxiliary design system for the product design and optimization, ensure products in the shortest time, to provide customers with the best quality products.

Our company mainly produces various series of filters and filter element , while engaged in import and export work. The localization of filter Product covers petrochemical, chemical, electric power, metallurgy, textile, environmental protection, machinery, such as water, life, oil, melt, coating, pulp, paint filtration purification industries.

?? Quality first, customers, is our aim. We are willing to cooperate with domestic and overseas clients, to provide you with the best quality products and the best service!
