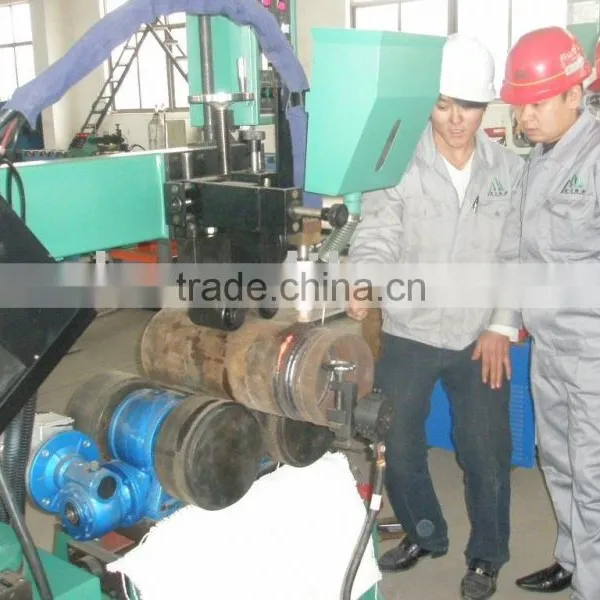

Piping Prefabrication Automatic Welding Machine (SAW)
Model: PPAWM-24B1/B3
Performance features
On-line Performance: Excellent (Designed completely as per the one line equipment of the production line)
Application: extremely broad (pipe and cover welding of various structures of DN≥150 in various industries).
Welding Efficieny: Excellent (250~350 inch/day, which is 4 times higher than the manual welding)
Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)
Surface finishing: good (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: Good (driven by frictional force, however, it is required to set essential balance weight to offset large bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the driving).
Price: a bit higher than the Piping All-position Automatic Welding Machine (FCAW/GMAW).
Technical parameters
Pipe diameter applicable: DN50~600(φ60~610)
Pipe wall thickness applicable: 360MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,etc.
Welding line applicable: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).
Driving System: driven by three-row stainless steel roller and worm- worm wheel (B1) or driven by two-row rubber roller and reducer (B3)
Clamping system: the electric clamping arm is adjustable and 180 degree rotational ability; it clamps manually with screw double wheels. A chain tensioner might be equipped if necessary.
Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline.
Counterweight System: no Counterweight
Speed-regulation Mode: VF stepless speed control system
Adjustment Mode: manual cross regulator
Control system: a product of our patented technology, nonPLC control.
Welding mode: thin double wire SAW.
Welding Power: our OEM products which are famous in China (or as per customers demands)
