Specifications

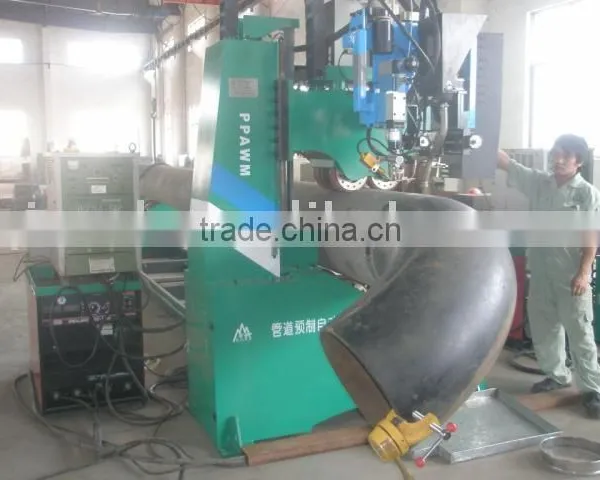

PASS CE CERTIFICATEAUTOMATIC WELDING MACHINE FOR PIPE FABRICATED
DIA:DN200-800,WALL THK:18-80
CAPACITY:300"/DAY
PLC CONTROL
Performance features
On-line Performance: Good (Designed as per the one line equipment of the production line)
Application: broad (pipe and cover welding of various structures of DN≥400 and DN≤800 in various industries).
Welding Efficieny: Excellent (100~150 inch/day, which is 4 times higher than the manual welding)
Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)
Surface finishing: good (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: good (driven with friction; the necessary balance weight shall be provided for the pipe with DN≥600 and which the wall thickness is ≥40 to balance the serious eccentricity resulted from bending).
Price: a bit higher than the Piping Allposition Automatic Welding Machine (SGW).
Technical parameters
Pipe diameter applicable: DN200~800(φ219~810)
Pipe wall thickness applicable: 18~80MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Welding line applicable: various welding lines of tubesections such as tubetube, tube elbow, tubeflange, flangeflange and flangeelbow, etc (a fake pipe transition connection shall be applied if necessary).
Driving system: Two rows of metal+ rubber compound idler wheel driven by motor.
Clamping system: clamping with double chain clamping mechanism
Bracket System:Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline.
Counterweight System: Nil
Speedregulation Mode:VF stepless speed control system
Control system: a product of our patented technology.
Welding mode: thick and single double wire SAW.
Welding Power: our OEM products which are famous in China (or as per customers demands)
