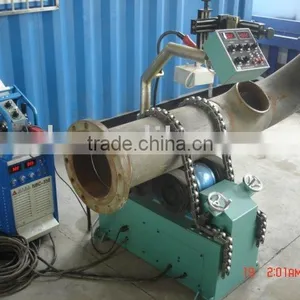

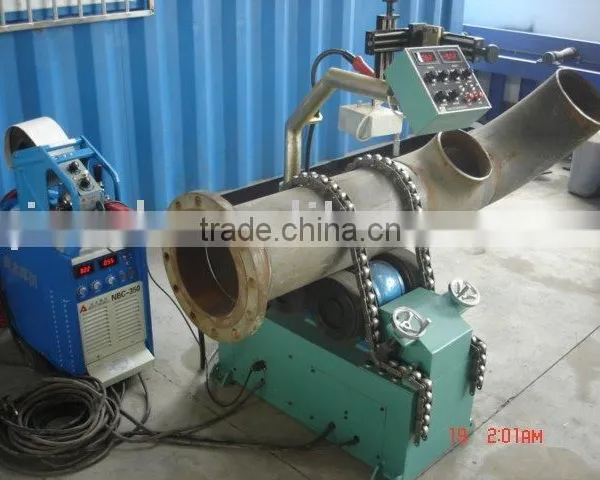

Help CenterPortable Piping Automatic Welding Machine (FCAW/GMAW)
Related Products
-
Slip~on Flange Automatic Welding Machine (FCAW/GMAW)US$ 250,000 - 500,000MOQ: 1 Set -
Piping Prefabrication Automatic Welding Machine (SAW)NegotiableMOQ: 1 Set
-
PIPE WELDING MACHINE;AUTOMATIC PIPE WELDING MACHINENegotiableMOQ: 1 Set
-
AUTOMATIC WELDING MACHINE FOR PIPE FABRICATION; AUTOMATIC WELDING MACHINE (4 WELD HEADS)NegotiableMOQ: 1 Set
-
AUTOMATIC PIPE WELDING MACHINE;PIPE WELDING MACHINE FOR PIPE FABRICATION; FLANGE AUTOMATIC WELDING MACHINENegotiableMOQ: 1 Set
Specifications
Welding Capacity: Excellent (200~300 inch/day, which is 3 times higher than the manual welding)Performance features
On-line Performance: Nil (it is designed for working completely).
Application: broad (pipe welding of various structures of DN≥300 in various industries).
Welding Capacity: Excellent (200~300inch/day, which is 3 times higher than the manual welding)
Operability: Good (applicable and easy to operate even if you are a new user)
Surface Forming: Excellent (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: good (driven with friction)
rice: Much cheaper than the Piping Allposition Automatic Welding Machine (FCAW/GMAW).
Mobility: it is light and extremely portable.
Technical parameters
Pipe diameter applicable: DN50~300
Pipe wall thickness applicable: 3~20MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,etc.
Welding line applicable: various welding lines of tubesections such as tubetube, tubeelbow, tubeflange, flangeflange and flangeelbow, etc (a fake pipe transition connection shall be applied if necessary).
Driving System: driven by threerow stainless steel worm and worm wheel (A1/A2) or driven by tworow rubber roller reducer (A3/A4)
Clamping system: clamping with double chain manual screw
Bracket system: Nil (unless the customer requires it)
Counterweight System: no Counterweight
Speedregulation Mode:VF stepless speed control system
Adjustment Mode: manual cross regulator
Oscillating system: a product of our patented technology, oscillator driven by the common motor; nondefined oscillating width adjusting (for A1/A3)/ step motor driving oscillator (for A2/A4).
Control system: a product of our patented technology, nonPLC control (for A1/A3) /PLC control (A2/A4).
Welding Mode: CO2 gas shielded arc welding
Welding Power: our OEM products which are famous in China (or as per customers demands)
