Brush type automatic self cleaning water filters

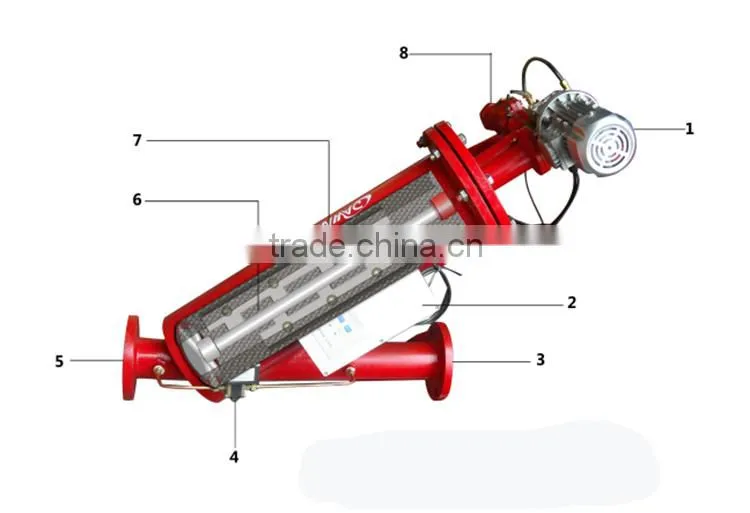

Product structure
1. electric motor 2. control box 3. outlet 4. pressure differential controller
5. inlet 6. screen 7. cleaning brush 8. automatic drain valve
Principle descriptions
As water flows into the filter cylinder from the inlet, impurities will be left on the inner wall of the cylinder while the purified water flows out. When the impurities accumulated to a certain number, or the pressure difference of the selfcleaning filter reaches a preset number, or the washing time arrived, the filter will start the selfcleaning processes, including two steps: First, open the automatic drain valve of the filter. Then, electronic motors drive the cleaning brushes which are inside the filter’s screen, so the impurities will be intercepted by the screen and discharged from the sewage valve. The whole working system is controlled by a smart control box equipped with the device, ensuring to automatically clean the filter without stopping water supply. The system has several control modes: pressure difference, time, manual and PLC control.
With the advantages of high filtration precision, short backwashing time, low water consumption and low pressure loss, automatic selfcleaning filters of DLD series are able to realize the following functions without stopping water supply: automatic cleaning and drainage, equipped with three operation functions, namely pressure difference, time and manual, to ensure you a stable and quality water supply.
Technical parameters
A single maximum flow capacity up to 1260 m3 / h
Filtration precision: from 4000 microns to 20 microns
Filter screen options: drilled hole (4000-800 microns), wedge (1000-50 microns),or braided composite (800-20 microns)
Minimum working pressure no less than 0.1 Mpa (electronic ball valve for sewage discharging)
No less than 0.18 Mpa (electromagnetic diaphragm valve for sewage discharging)
The highest working pressure: no more than1.6 MPa (customized for special use)
Working temperature 95 ℃ or less
Flow-in water turbidity no higher than 60 mg/L (110 mg/L in a short time, pretreatment is required for
long time of high turbidity.)
Power supply: 380 V / 50 Hz
Control voltage: AC24V
Cleaning method: brush type
Adjustable washing time: 10-200 seconds
Control mode: pressure difference, time, manual and PLC
Tips for your choosing products
When you are choosing self-cleaning filters, please consider the following parameters:
1, Processing flow capacity
2,Chemical properties of the filter medium
3, Suspended solids concentration of filter medium
4, Required filtering precision
5, Pipeline pressure

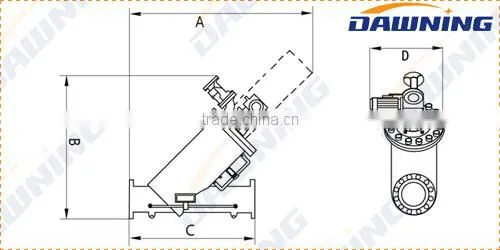

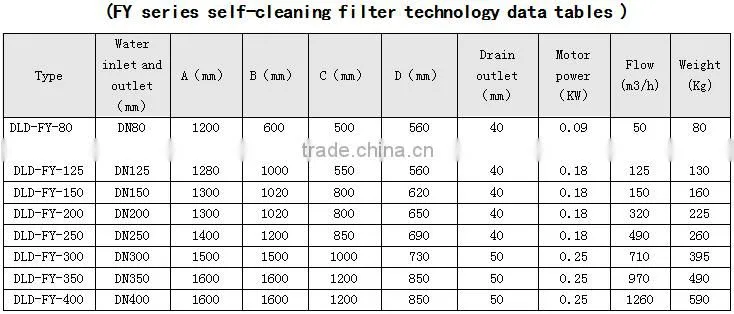

The size chart
Application range
Industry filtration:
It is suitable for industry circulating water filtration, such as cooling or heating system, sewage treatment, sprinkler head protection, workshop and municipal water recycling, filtration before the R.O. system, papermaking, chemical industry, Babbitt disinfection system, vacuum pump system, air compressor system, continuous casting system, other water treatment applications and so on.
Irrigation filtration:
Filtration: groundwater, municipal water; rivers, lakes and sea waters. Applications for orchards, nurseries, greenhouses, golf courses, parks and so on.
1. Dawning Environmental Protection Technology Co., LTD. was founded in 2002 with a registered capital of 10 million, which is an emerging technology company specialized in environmental water treatment. The main products include water filter,water descaling antiscale and water heating equipmenets etc series.
2.Our products have been already widely applied in the industrial and civil construction, steel, electric power, petrochemical,metallurgical, pharmaceutical, paper making, cars, hotels, municipal and other major industries.
3. Our factory covers an area of 13000 square which is domestic largest water filter production base.
4. We have a few professional engineers with over ten years' experience in water filtration technology.
