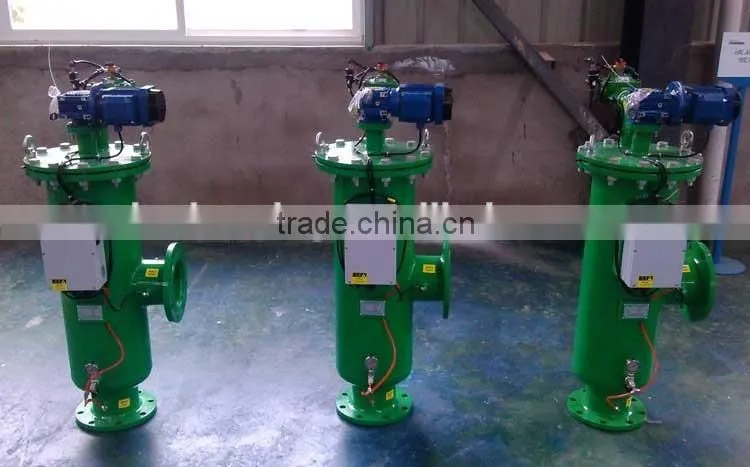

Self cleaning iron filter for continuous castling wastewater recycling
- 2600 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Self cleaning filter | Medium Material: | Other, Stainless steel mesh |
Place of Origin: | Hunan, China | Brand Name: | CDFS | Model Number: | DLD-FL-80 |
Voltage: | 380V/50hz | Power(W): | 0.18kw | Dimension(L*W*H): | 500*500*1000mm |
Weight: | 80KG | Certification: | ISO 9001:2008 | Warranty: | One Year |
After-sales Service Provided: | No overseas service provided |
Product Description
Self cleaning iron filter for continuous castling wastewater recycling
Product structure
Principle descriptions
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.
When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.
Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.
DLD series automatic have much advantages:wide filtration range,short flushing time,low water consumption,low pressure loss etc.
Technical parameters
Single filter flow(max) | 4000m3/h |
Filtration range | 20-4000 micron |
Working pressure | 0.18-1.6Mpa |
Adjustable flushing time | 10-200 seconds |
Power supply | 380 v / 50 Hz , AC24V |
Control modes | Pressure difference/time/manual/PLC |
Shell material | Carbon steel/304 stainless steel/316L |
Screen material | 304 stainless steel/316L |
Product selecting
When you are choosing automatic screen filters, please consider the following parameters:
1. Flow capacity( Pipe diameter)
2. Filtration range
3. Shell materai
4. Pipeline pressure
5. Chemical properties of the filter medium
6. Suspended solids(SS) concentration of filter medium
Filtration range table
Micron(μm) | 10 | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 150 | 200 | 400 | 800 | 1500 | 3000 |
mesh | 1500 | 650 | 550 | 400 | 300 | 200 | 150 | 120 | 100 | 80 | 40 | 20 | 10 | 5 |
The size chart
FL series self-cleaning filter specification data table
Models | Inlet /Outlet pipe diameter (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Drainage outlet (mm) | Motor power (KW) |
Flow (m3/h) | Weight (Kg) |
DLD-FL-50 | 50 | 217 | 500 | 630 | 500 | 450 | 25 | 0.09 | 19 | 50 |
DLD-FL-65 | 65 | 217 | 500 | 630 | 500 | 450 | 25 | 0.09 | 30 | 70 |
DLD-FL-80 | 80 | 237 | 500 | 630 | 580 | 480 | 40 | 0.18 | 50 | 80 |
DLD-FL-100 | 100 | 247 | 500 | 630 | 580 | 480 | 40 | 0.18 | 80 | 105 |
DLD-FL-125 | 125 | 247 | 500 | 630 | 580 | 480 | 50 | 0.18 | 125 | 130 |
DLD-FL-150 | 150 | 257 | 620 | 730 | 610 | 480 | 50 | 0.18 | 150 | 180 |
DLD-FL-200 | 200 | 309 | 800 | 830 | 630 | 510 | 50 | 0.25 | 320 | 235 |
DLD-FL-250 | 250 | 309 | 800 | 830 | 630 | 510 | 50 | 0.37 | 490 | 280 |
DLD-FL-300 | 300 | 385 | 1050 | 1130 | 670 | 670 | 50 | 0.37 | 710 | 420 |
DLD-FL-350 | 350 | 385 | 1050 | 1130 | 670 | 670 | 50 | 0.37 | 970 | 537 |
DLD-FL-400 | 400 | 475 | 1150 | 1280 | 780 | 780 | 50 | 0.37 | 1260 | 620 |
DLD-FL-450 | 450 | 654 | 2450 | 1372 | 1180 | 1190 | 50 | 0.37 | 1600 | 685 |
DLD-FL-500 | 500 | 706 | 2900 | 1508 | 1255 | 1285 | 65 | 0.55 | 1970 | 738 |
DLD-FL-600 | 600 | 840 | 3450 | 1828 | 1298 | 1320 | 65 | 0.55 | 2500 | 860 |
DLD-FL-700 | 700 | 1008 | 3960 | 2160 | 1460 | 1680 | 65 | 0.75 | 3500 | 1400 |
Loss of pressure table
Installation and connection
please keep the drain valve’s outlet direction horizontal position or down position to ensure the sewage is discharged completely.
Installing form A
Installing form B
More filters in parallel are required as follow.

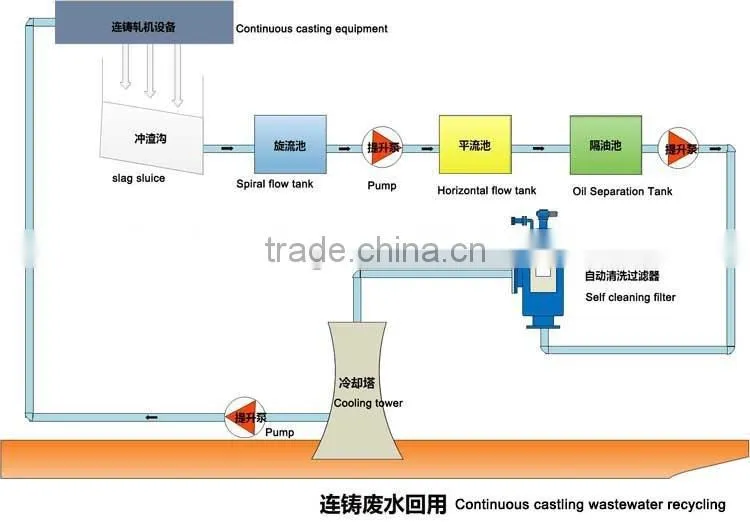

Application pictures
Please see this for more 100 micron water filter
1.OEM/ODM is availlable.
2.Service for you at any time with a excellent sales tem.
1. Dawning Environmental Protection Technology Co., LTD. was founded in 2002 with a registered capital of 10 million, which is a emerging technology company specialized in environmental water treatment. The main products include water filter,water descaling antiscale and water heating equipmenets etc series.
2.Our products have been already widely applied in the industrial and civil construction, steel, electric power, petrochemical,metallurgical, pharmaceutical, paper making, cars, hotels, municipal and other major industries.
3. Our factory covers an area of 13000 square which is domestic largest water filter production base.
3. We have a few professional engineers with over ten years experience in water filtration technology.
Q: Where is your factory?
A:Changsha city,Hunan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent.
Q: How about the delivery time?
A: Usually 7-15 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawing,electric drawing and others.
Q:Can you send me a sample?
A: Yes.But it is not for free.
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
Q:How can I contact you?
A:You could contact me by email or Trademanager or others.
If you have any question, please don't hesitate to contact us.
