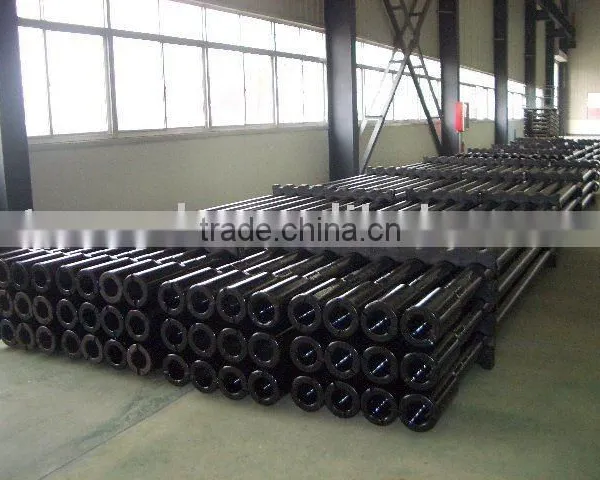

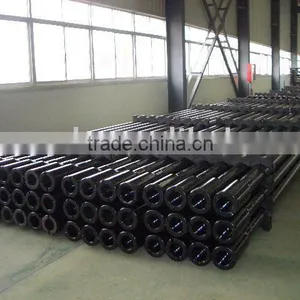

Help CenterOil Drill Pipe
Related Products
Specifications
1)OD:2 3/8'--5 1/2'2)Grade:E75,X95,G105,S135
3)Upset:IU,EU,IEU
4)Hardbanding:TK34,TK34P
5)Coating:ARNCO100XT

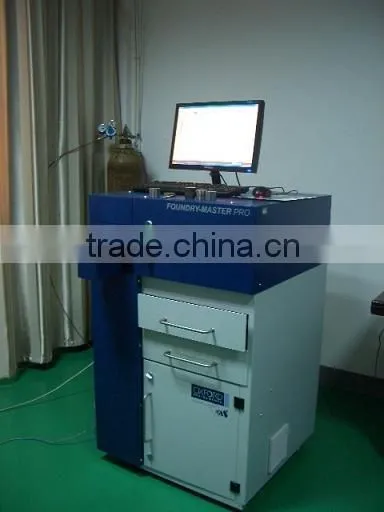

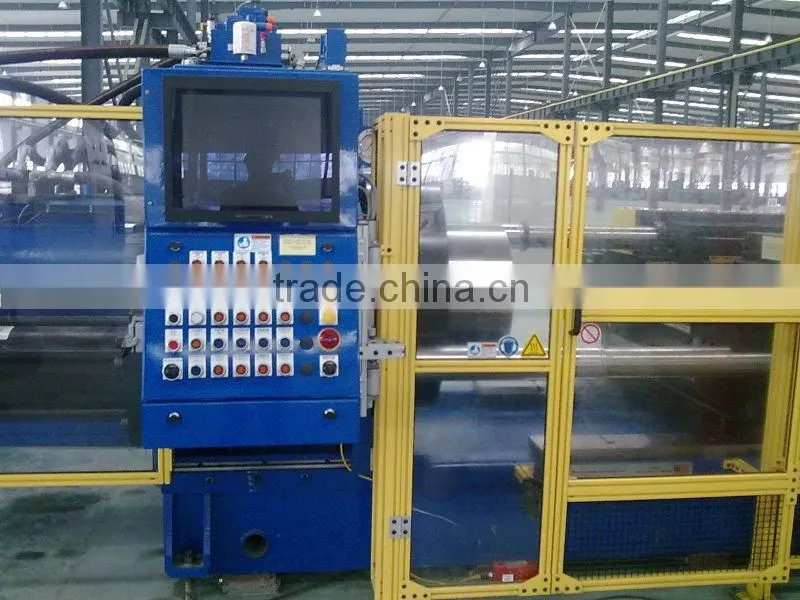

We are equipped with facilities of top quality in the world, such as hydraulic upset forging machine, walking beam quenching furnace,, hot and cold straighten device, friction welding machine, middle frequency heat treatment, numerical control lathe and compete set of ultrasonic inspection and magnetic particle inspection. The whole process includes hot upset forging, heat treatment, hot straightening, could straightening, ultrasonic inspection on pipe body and pipe end, magnetic particle inspection, friction welding, seam inspection. We strictly carry out API spec Q1 quality control system and API Spec 5DP production standard. We have a complete set of inspection process, inspection for raw material, magnetic particle inspection to pipe end, ultrasonic inspection on pipe body, inspection on weld seam linearity testing and visual inspection

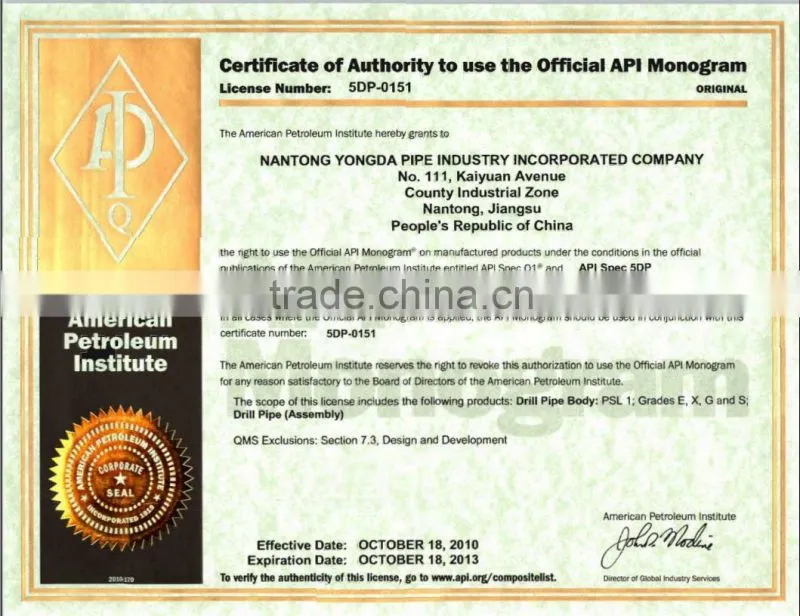

1) Certificate: API 5DP-0002,API Q1-0964, ISO 9001,ISO 14001,OHSAS 18001
2) OD:2 3/8” TO 5 1/2” of label 1 or 60.32mm to 139.7mm
3) Wall thickness:6.45 to 12.7mm
4) Grade:E75,X95,G105,S135
5) Length:R1:6.1-7.01mm, R2:8.84-9.75mm, R3:12.19-13.72mm
Specification
Normal
Account Weight
Grade
Thickness
upset of the end
in
mm
Weight(lb/ft)
lb/ft
kg/m
in.
mm
2 3/8
60.3
6.65
6.26
9.32
E,X,G,S
0.28
7.11
EU
2 7/8
73
10.4
9.72
14.48
E,X,G,S
0.362
9.19
EU,IU
3 1/2
88.9
9.5
8.81
13.12
E
0.254
6.45
EU,IU
3 1/2
88.9
13.3
12.31
19.34
E,X,G,S
0.368
9.35
EU,IU
3 1/2
88.9
15.5
14.63
21.79
E
0.449
11.4
EU,IU
3 1/2
88.9
15.5
14.63
21.79
X,G,S
0.449
11.4
EU,IEU
4
101.6
14
12.93
19.26
E,X,G,S
0.33
8.38
EU,IU
4 1/2
114.3
13.75
12.24
18.23
E
0.271
6.88
EU,IU
4 1/2
114.3
16.6
14.98
22.31
E,X,G,S
0.337
8.56
EU,IEU
4 1/2
114.3
20
18.69
27.84
E,X,G,S
0.43
10.92
EU,IEU
5
127
16.25
14.87
22.15
X,G,S
0.296
7.52
IU
5
127
19.5
17.93
26.71
E
0.362
9.19
IEU
5
127
19.5
17.93
26.71
X,G,S
0.362
9.19
EU.IEU
5
127
25.6
24.03
35.79
E
0.5
12.7
IEU
5
127
25.6
24.03
35.79
X,G,S
0.5
12.7
EU.IEU
5 1/2
139.7
21.9
19.81
29.51
E,X,G,S
0.361
9.17
IEU
5 1/2
139.7
24.7
22.54
33.57
E,X,G,S
0.415
10.54
IEU
