Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine

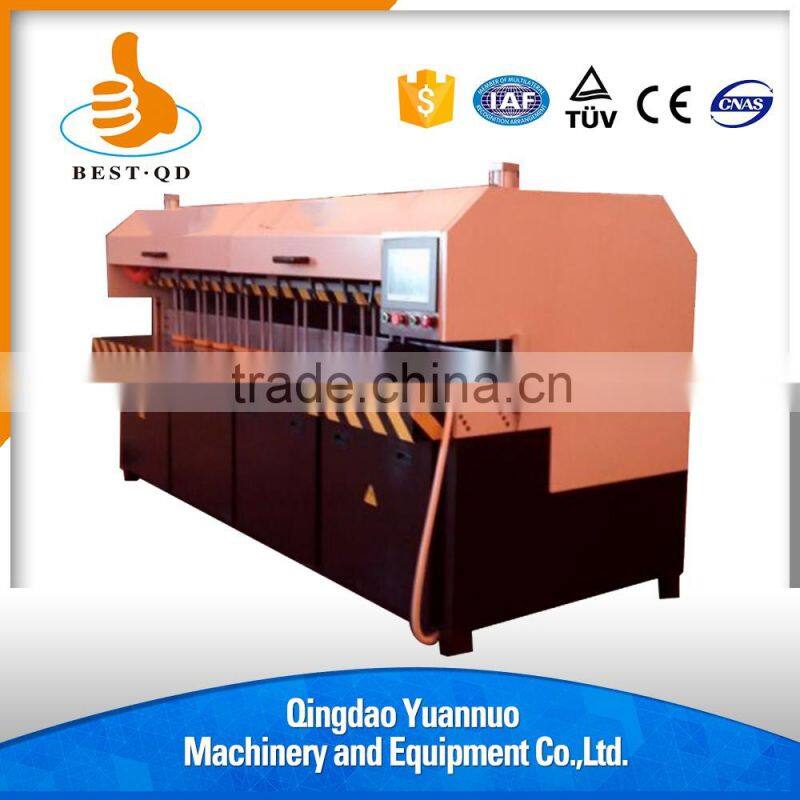

Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine photo-1
Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine photo-2
Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine photo-3
Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine photo-4
Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine photo-5
Top Selling Products In Angle Adjustment Acrylic Edge PLC Automatic Unlimited Polishing Machine photo-6
US$ 16,500 - 16,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Sheet
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Dalian Shanghai Guangzhou according to buyer's requirement
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Plastic Sheet
Place of Origin Shandong, China
Brand Name BEST
Model Number BT-2200DP-S
Voltage AC380V+/-10% (special voltage can be customized)
Power(W) less than 5.5kw
Dimension(L*W*H) 3300*1420*1750mm,8.20CBM
Weight 2500kgs
Certification CE, ISO
Warranty 2 years dating from buyer receiving the machine
After-sales Service Provided Engineers available to service machinery overseas

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine

Description

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine

Advantage

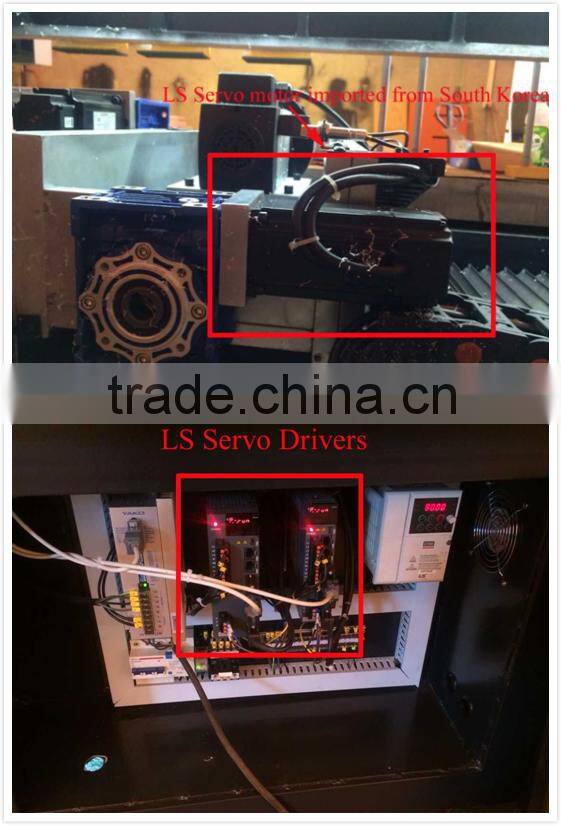

It is equipped with LS brand Servo System and LS PLC control system with color LED touch screen imported from South Korea, all orders can be fulfilled on the touch-screen automatically, including angle adjustment in range of 0-60 degree automatically. So working efficiency is much higher and setting is more accurate.



  Click here to watch working video

The specification of  BT-2200DP-S

Item No.

BT-2200DP-S

Working Are (Work piece Length * Thickness)

2200*120mm (since the 2 ends of worktable are open, material length is no limitation.)

Working Width

No limitation

Complete Machine Power

≤5.5KW

Spindle Rotating Speed

6000-9000RPM adjustable

Cutting Speed

0-1000mm/min adjustable

Cutting Mode

Spindle feeding

Polish Angle

0-60°adjustable

Cutting Depth

0-1mm (adjustable)

Power Supply

AC380V+/-10%, 50/60Hz, 3 phase 4 lines

Dust Extractor Mouth Diameter

100mm

Compressor Air

≥0.60Mpa

Package Dimension (L*W*H)

3400*1420*1750mm,8.45CBM

Machine N.W.

2400kg

G.W. With Package

2500kg

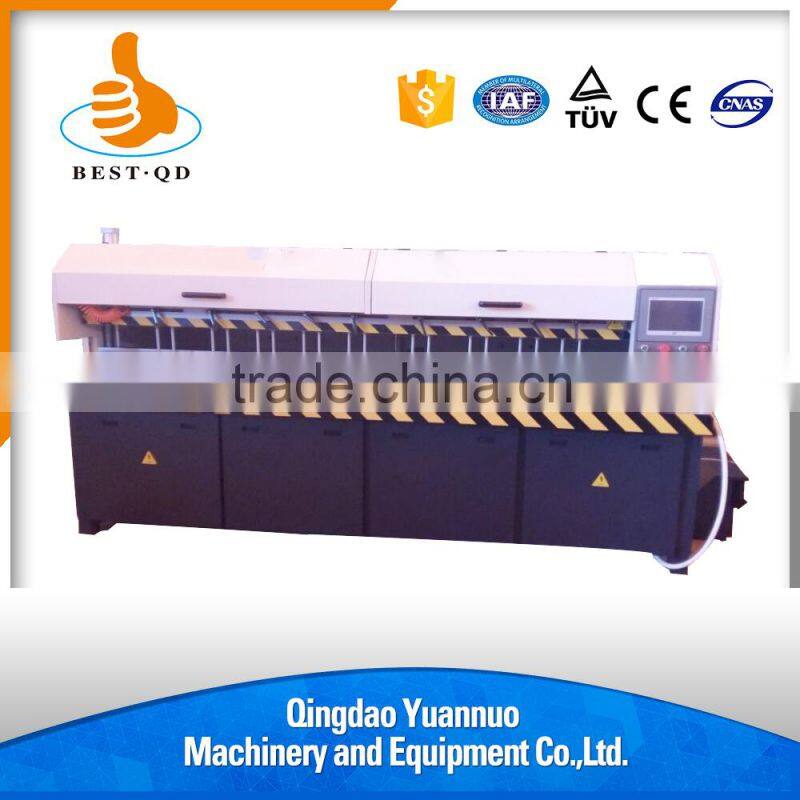

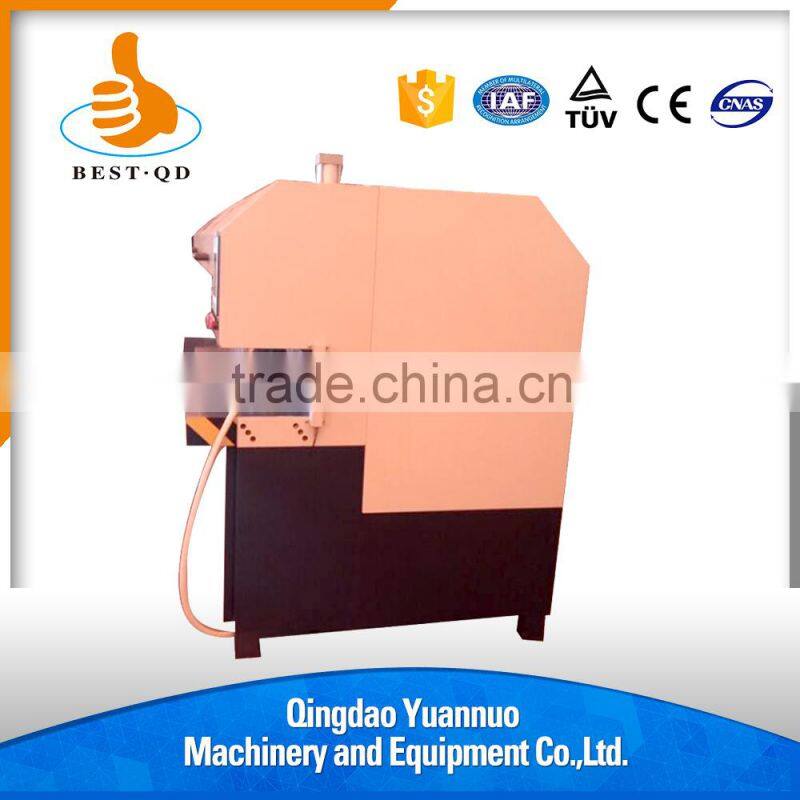

Product show

Features

1.We have Cutters Adjustment Device to help you change and adjust cutters easily.

2. It is horizontal type, comparing with vertical type, its working efficiency is much higher, working precision is more accurate. Furthermore, the 2 ends of the machine are open, no length limitation.

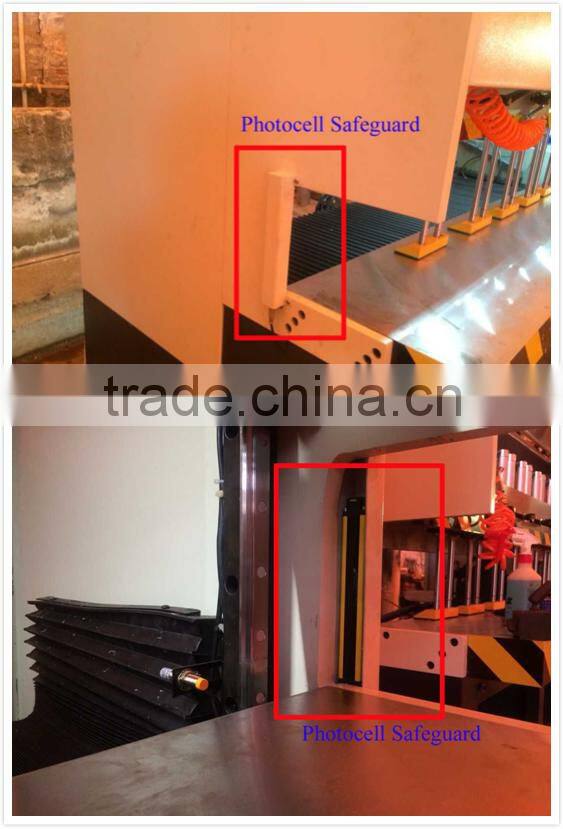

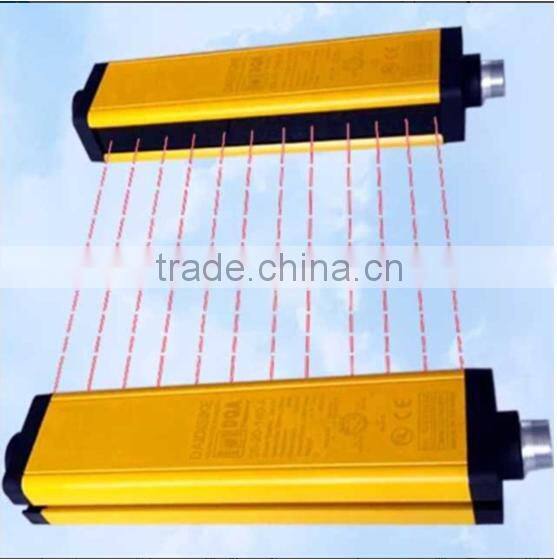

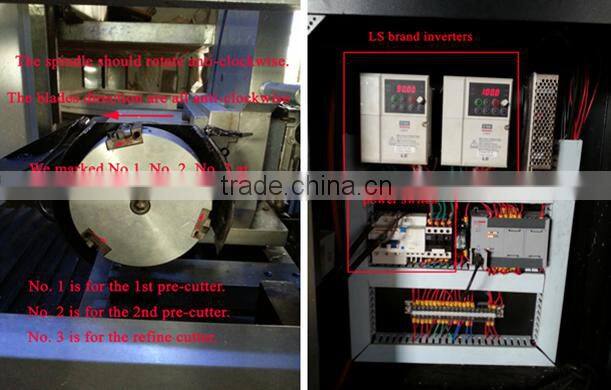

Product details

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine

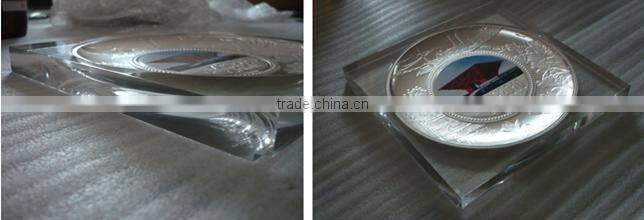

Product samples

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine

Top Selling Products In Alibaba angle adjustment acrylic edge PLC automatic unlimited polishing machine
