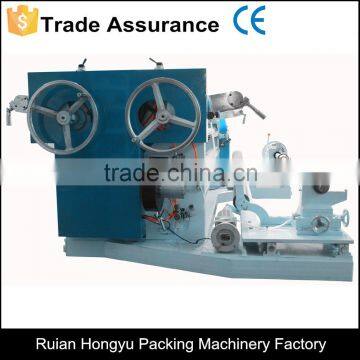

High Speed Automatic Plastic Film Slitting And Rewinding Machine

High Speed Automatic Plastic Film Slitting And Rewinding Machine thumbnail-1
High Speed Automatic Plastic Film Slitting And Rewinding Machine thumbnail-2
High Speed Automatic Plastic Film Slitting And Rewinding Machine thumbnail-3
High Speed Automatic Plastic Film Slitting And Rewinding Machine thumbnail-4
High Speed Automatic Plastic Film Slitting And Rewinding Machine thumbnail-5
High Speed Automatic Plastic Film Slitting And Rewinding Machine photo-1
High Speed Automatic Plastic Film Slitting And Rewinding Machine photo-2
High Speed Automatic Plastic Film Slitting And Rewinding Machine photo-3
High Speed Automatic Plastic Film Slitting And Rewinding Machine photo-4
High Speed Automatic Plastic Film Slitting And Rewinding Machine photo-5
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
No
Contact Supplier Request Quote Chat Now
Ruian Hongyu Packing Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Slitting Rewinder
Computerized No
Place of Origin Zhejiang, China
Brand Name Hongyu
Model Number FQ-E Series
Voltage 380V 50HZ 3Phase
Power(W) 4kw
Dimension(L*W*H) 2600*1700*1100mm
Weight 2100kg
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Machine Description

USAGE

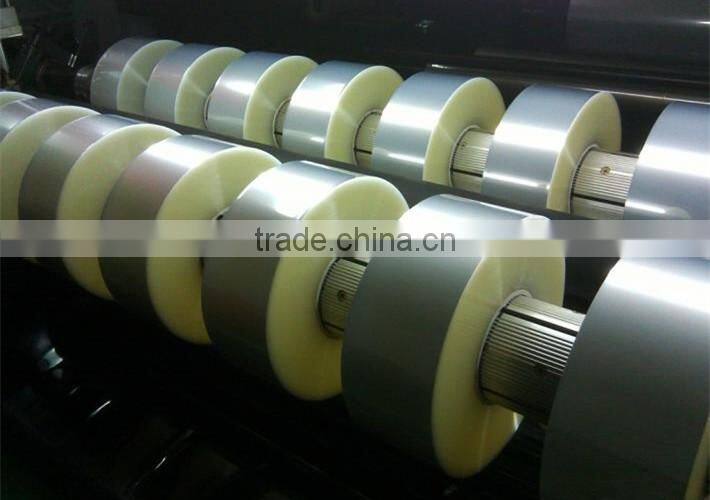

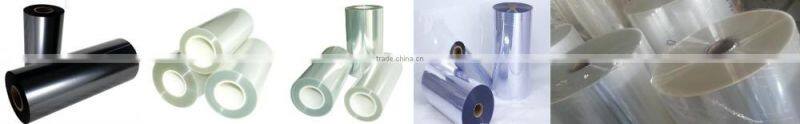

    FQ-E Series slitting machine suit for slitting&rewinding thin film such as PZG、PET、EVA、PE、LDPE、LLDPE、HDPE、BOPP、OPP、CPP、PVC、BOPS、PVDC、Optical Thin Film Etc...

    FQ-E Slitter with good machine structure,low noise,easy to operating & maintain. It equipped with quality performance tension controller,Rewinding meter counter and low noise. Film slit by this machine have very smooth edge.

Feature

1.Machine adopt friction center rewinding technology.
2.Euiqped with waste edge cutting and sending device ,make your final product smooth and perfect surface.
3.Double air expanding shaft to rewinding ,Rewinding surface smoothly.
4.Automatic meter counter , can count the meter when it working.
5.Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.
6.Machine & All the electric appliances has been gained the CE certificate.

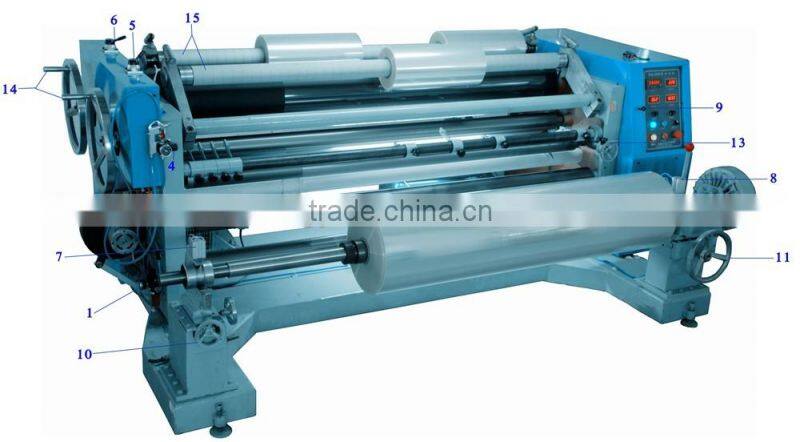

1.Filtration Pressure Regulating Valve                            2.The 1st Rewinder Pressure Regulating Valve

3.The 2nd Rewinder Pressure Regulating Valve           4.Air Expanding Shaft Gas Charging Valve

5.The 1st Rewinder Unload Button                                   6.The 2nd Rewinder Unload Button                                                           7.Unwinder Right Air Cylinder                                             8.Unwinder Left Air Cylinder

9.Button Of (7&8 Right Left)Cylinder                                10.Material Lengthways Adjust Wheel

11.Material Crosswise Adjust Wheel                                12.Magnetic Powder Brake

13.Slitting Blade Worm Wheel                                             14.Rewinding Shaft Wheel          15.Air Expanding Rewinding Shaft

PARAMETER FOR FQ-E SERIES PLASTIC FILM SLITTING REWINDING MACHINE
Model
FQ-E 1500
FQ-E 1900
FQ-E 2100
Max.Material Width
1500(mm)
1900(mm)
2100(mm)
Unwinding Diameter
800(mm)
800(mm)
800(mm)
Rewinding Diameter
420(mm)
420(mm)
420(mm)
Slitting width
50-1500(mm)
50-1900(mm)
50-2100(mm)
Machine Speed
320M/Min
320M/Min
320M/Min
Slitting&Rewinding Speed
300M/min
300M/Min
300M/Min
Deviation correct accuracy
±0.2mm
±0.2mm
±0.2mm
Total Power
4kw
5.5kw
6kw
Net weight of machine
2100kgs
2300kgs
2600kgs
Machine Demension(mm)
2600×1700×1100mm
2900×1700×1100mm
3100×1700×1100mm
Certifications

Certificate From Italy

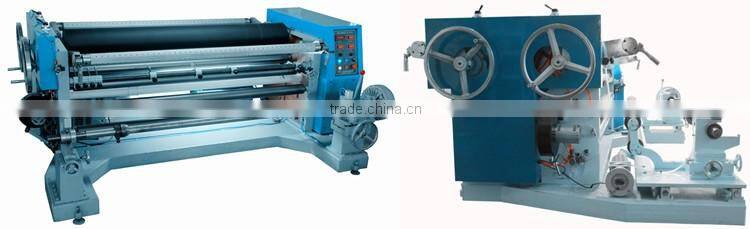

Detailed Images

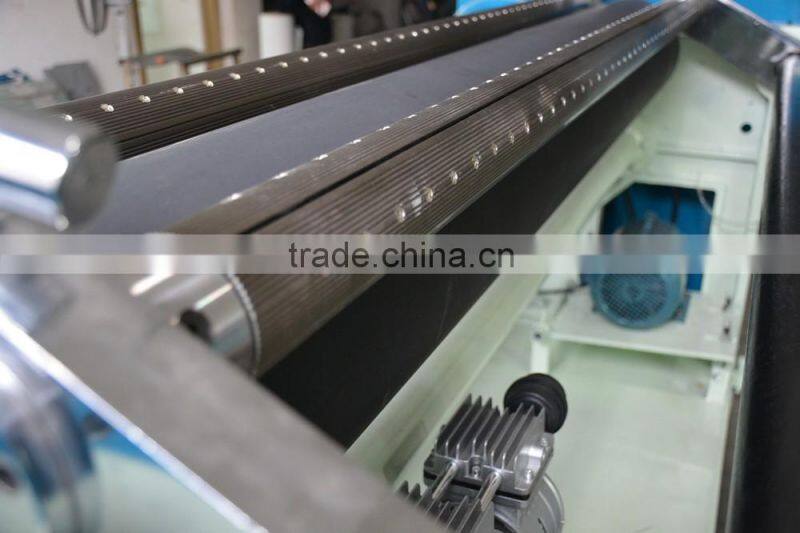

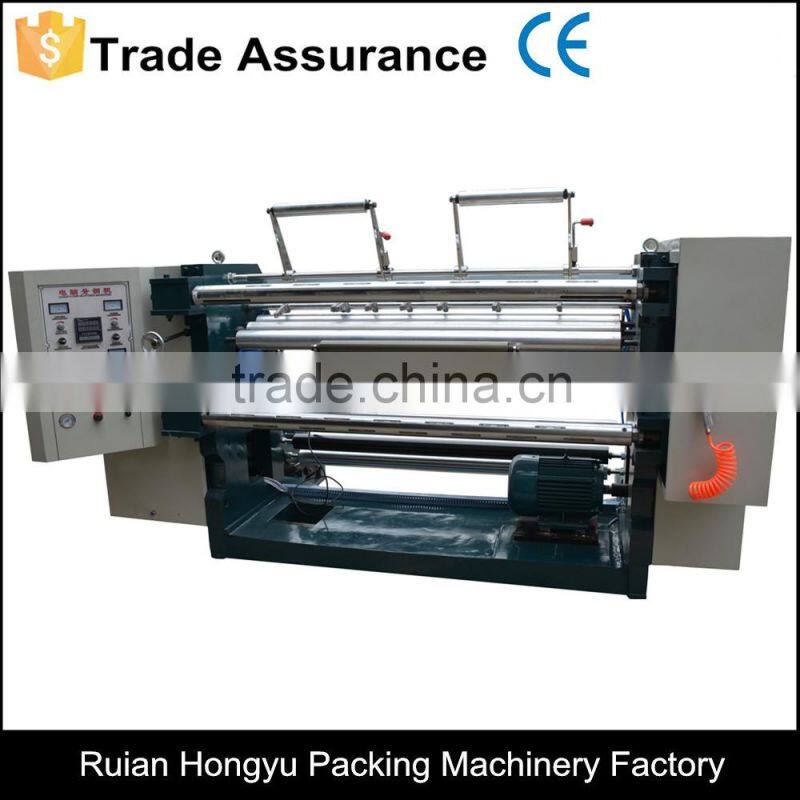

1.This machine is center friction rewinding type .Machine frame made of 4CM thickness steel plate and with good machine structure. Make sure machine won’t shake in high speed running.

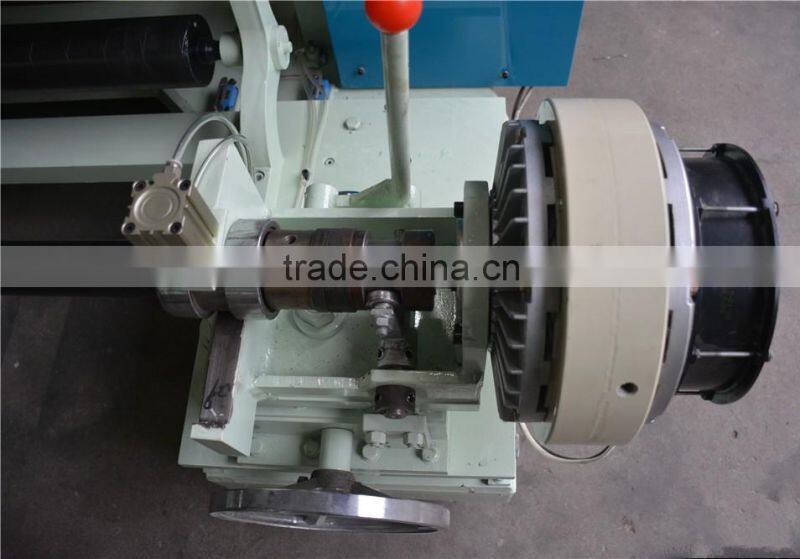

2.Unwinding tension controller adopt 10Kgs magnetic brake ,can make tension between 10-200N.

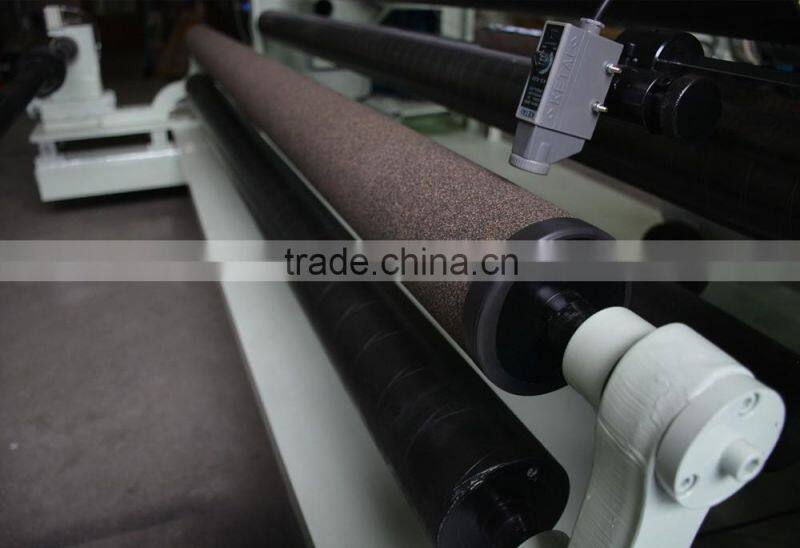

3.Unwinder with photocell eye and deviation correct motor to correct unwinding deviation. Make sure film send smooth & flat.

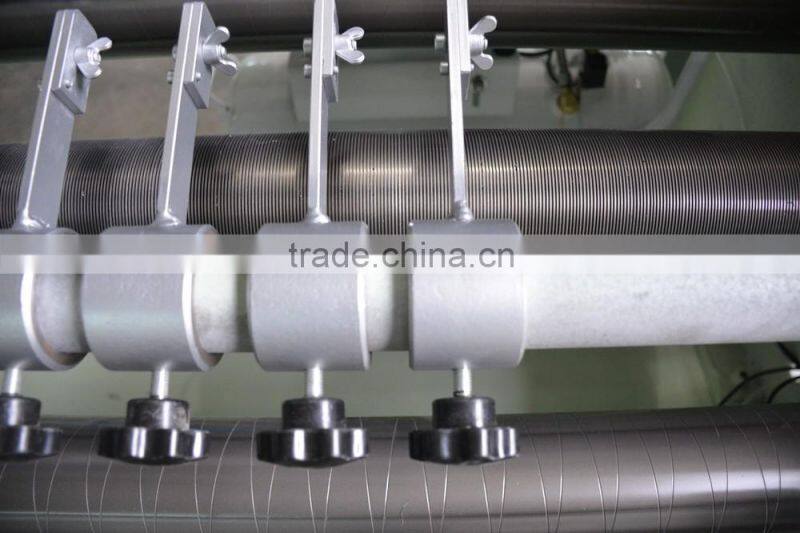

4.Flat Blade To Slitting. And With Blade Shim Roller.

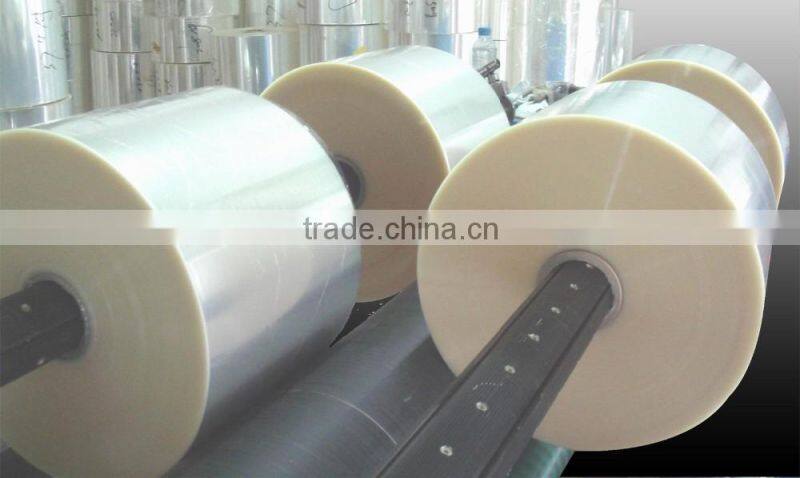

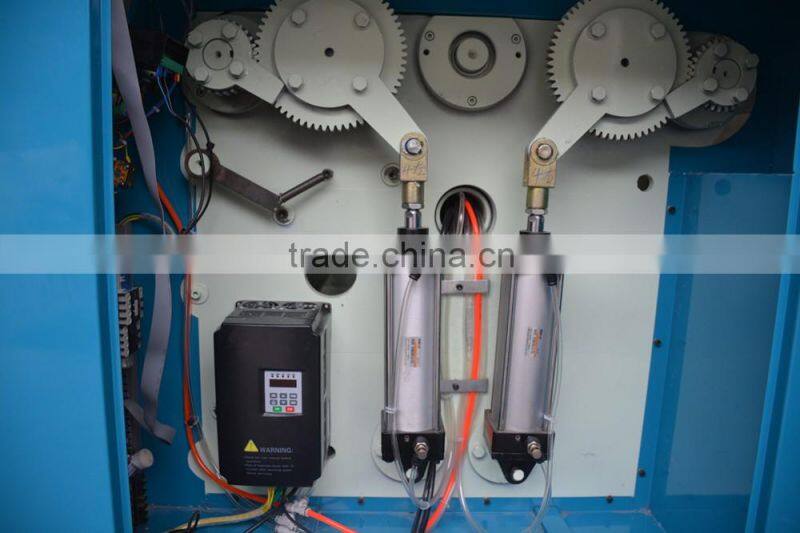

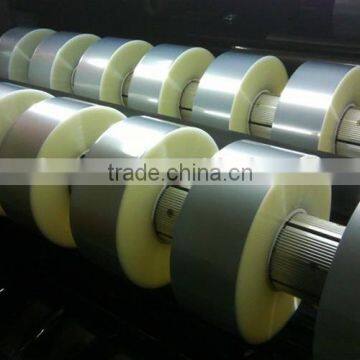

5.Center Friction Rewinder. Make Rewinding effect and material edge smooth. Rewinder also equipped with waste edge sending device.

Our Service

Warranty

* 1 year warranty

* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.

* If beyond warranty,we offer free repair service,Clients need undertake ship cost.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

*In Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

Packing & Delivery
Packaging
Weight&Size
FQ-1500   2.4TONS
(L)2.7M * (W)1.8M *(H)1.35M
Weight&Size
FQ-1900   2.65Tons
(L)3M * (W)1.8M * (H)1.35M
Weight&Size
FQ-2100   3Tons
(L)3.2 * (W)1.8M * (H)1.35M



Packaging Details
*The normal package is fumigated wooden box.
*Machine will cover with PE water proof film to prevent moisture from the ocean.
*Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
