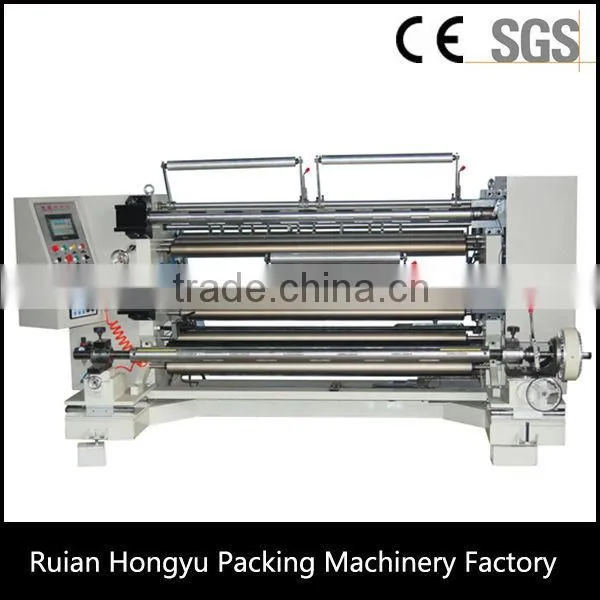

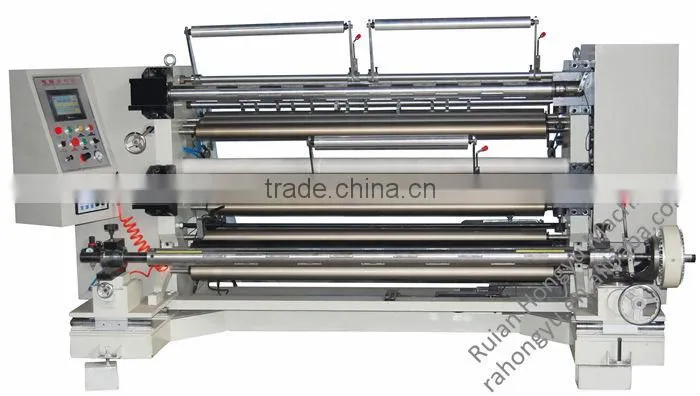

FQ-A High speed Computer splitting machine
Usage:
Use For Slitting BOPP,PET,PE,PVC Film, Paper,Composit Film,Aluminium Foil Film(>10cm),Printing Film ,etc.
Technical Paramater:
| Model | FQ-A1300 |
| Unwinding Dia | 600mm |
| Rewinding Dia | 600mm |
| Rewinding Core Dia | 76mm |
| Slitting Width | 30mm-1250mm |
| Machine Speed | 200m/min |
| Slitting&Rewinding Speed | 10-170m/min (Depending on material) |
| Deviation Correct Accuracy | ±0.2mm |
| Total Power | 4Kw |
| Machine Weight | 1800Kg |
| Overall Dimensions(L*W*H) | 2280X1380X1500mm |
Features:

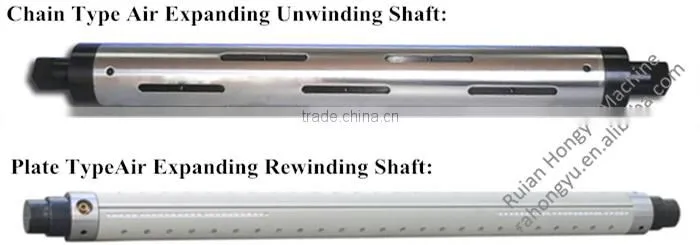

Unwinding&Rewinding Shaft:

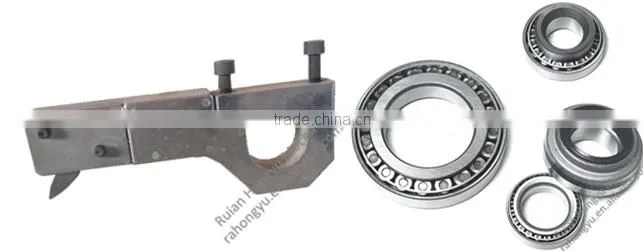

Japan NSK Bearing .Pneumatic Circular Blade.Industrial Flat Blade:It’s Sharp And Long-Lived.

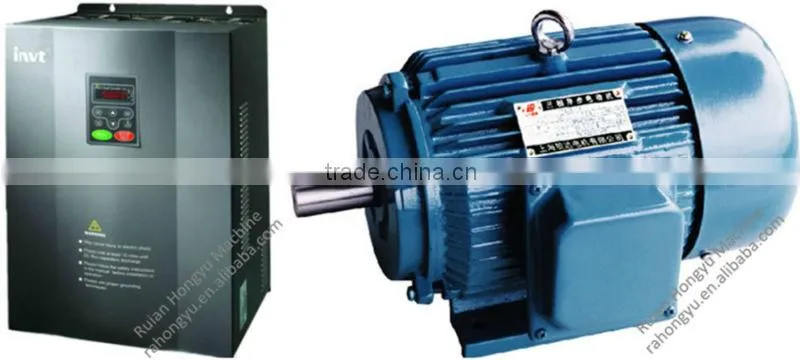

Sino-US Eura Frequency Controller&Shanghai 3 Phase Motor

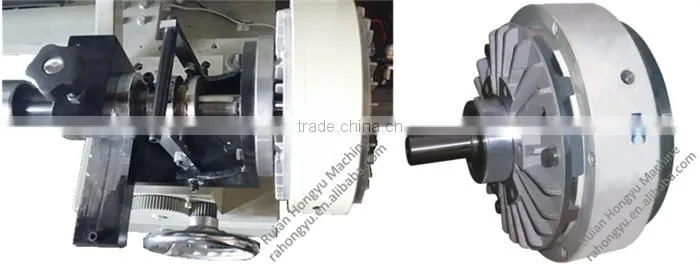

Top Grade Tension Controller (Magnetic Powder Brake)

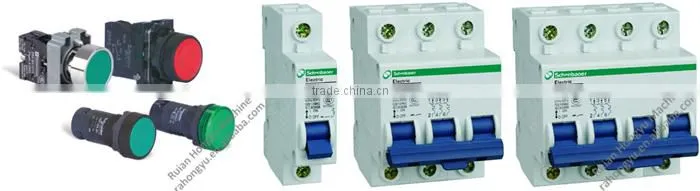

France Schneider&German Siemens Electronic

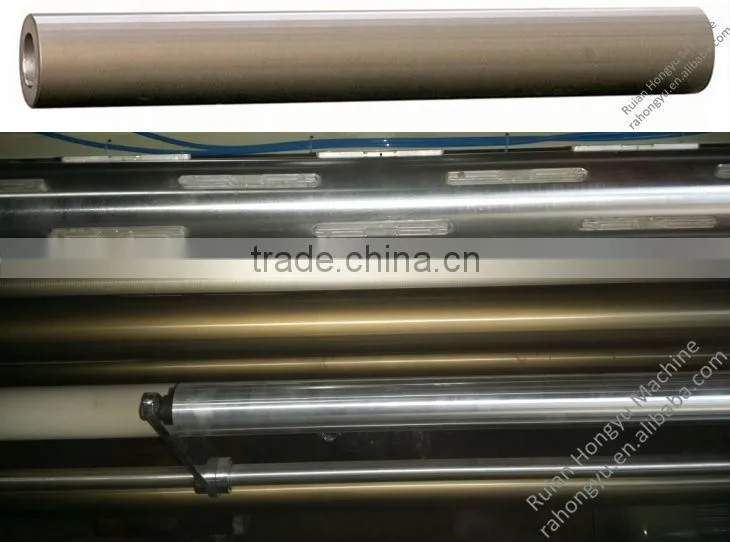

Harden treated guide roller (won’t leave trace on the roller service in long term use)

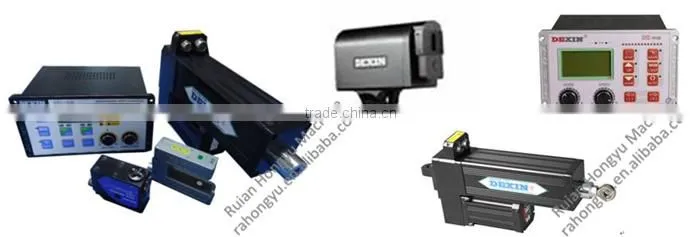

Double photoelectric deviation correction system and photocell eye

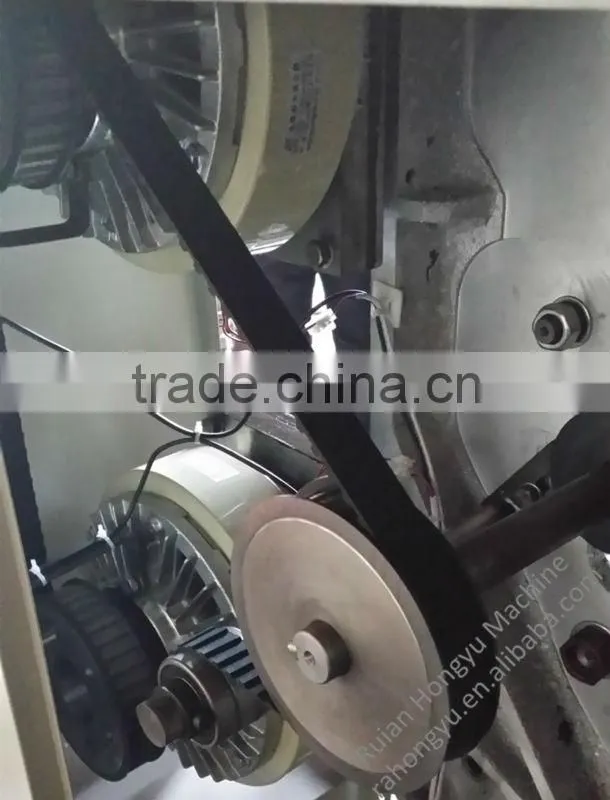

Synchronous Belt:Make motor&synchronous ,machine will be more steady.

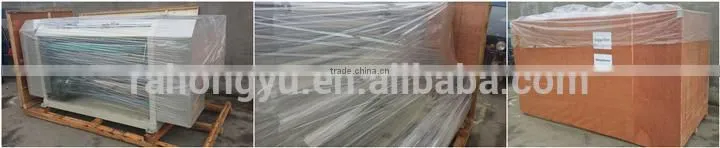

1.Bottom: composite material pallets
2.Machine Outside:waterproof film cover the machine ,then cover a waterproof fabric on the Vertical Computer Slitter Machine.
3.The whole machine will be loaded into a Large wooden cases before load into the container.
1.Special Custom:
As a advanced technology factory ,we accept customize machine .Until now ,we have make the max.slitting width in:2200mm
2.After sales service:
We will do after sales report one month/time ,we need be responsibility to our client ,so show us machine performance will also help us to do service.
In order to help our client save time ,pls tell me some information as below:
1.What material you want to slit?
2.Pls tell me width of material before slitting?
3.The min slitting width you need?
