Home > Instruments & Meters > Test Instrument > Test Machine > Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz

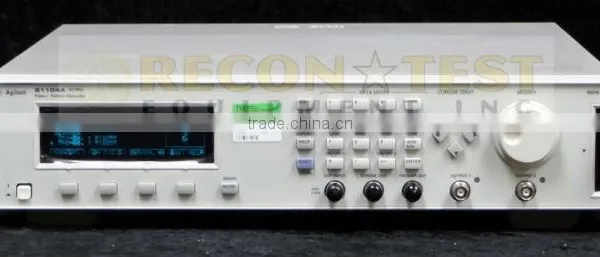

Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz

Name: Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz
Brand: Agilnet
SKU: 117649191
Availability: InStock

Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz thumbnail-1

Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz photo-1

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Florida, United States

Brand Name:

Agilnet

Model Number:

81104A - (2) 81105A

Contact Supplier Request Quote Chat Now

Recon Test Equipment, Inc

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Florida, United States

Brand Name Agilnet

Model Number 81104A - (2) 81105A

Specifications

Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz

Agilent 81104A - (2) 81105A Pulse Pattern Generator, 80 MHz.

The Agilent 81104A 80 MHz single-/dual-channel Pulse Pattern Generator with one or two Agilent 81105A ouput modules: Building on the capabilities of the 81101A, the 81104A extends the frequency and adds RZ/NRZ pattern capability up to 16 kbit per channel. An NRZ strobe channel provides a trigger at any desired point in the pattern, or can be used as an additional pattern source. If two 81105A Output modules are fitted, the outputs can be added. This allows different pulse shapes for simulating glitches, testing clock-recovery circuits or generating 3- or 4- level codes. Channel-add and 1000-ohm source modes each operate up to about 60 MHz. Combined, the maximum speed is about 15 MHz..

Single-/dual-channel pulse pattern generator
80 MHz, 10 V from 50 Ohm into 50 Ohm
Triggerable / PLL operation selectable
Pulse / burst / pattern modes selectable
Variable transition times
BNC outputs, single-ended
Single- or dual-channel: Requires 1 or 2 output modules 81105A

Options:

2 - 81105A - Output modules are available, the outputs can be added. This allows elaborate pulse shapes for simulating glitches, testing clock-recovery circuits or generating 3- or 4-level codes.
