Help CenterMotorized Inconel Butterfly Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
"Cair" offers rubber lined Butterfly Valves for HVAC & utilities. These Valves are truly 'Fit & Forget Valve' which requires mi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Medium Pressure
Power
Solenoid
Material
Other, INCONEL
Temperature of Media
Medium Temperature
Port Size
1 1/2" to 60"
Place of Origin
Gujarat, India
Model Number
AB-BFV
Brand Name
"Cair"
Specifications

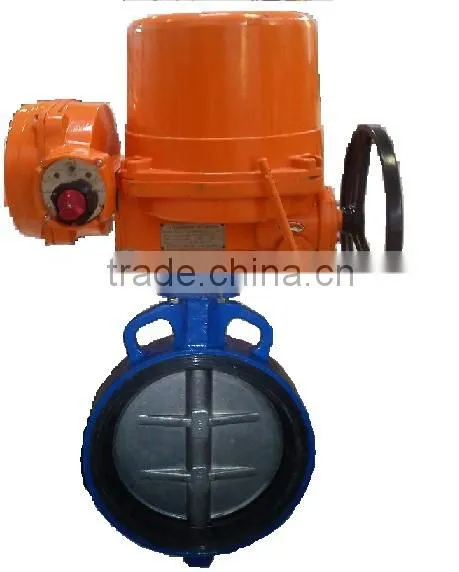

Cair" Offer On - Off Type 220V AC Single Phase Quarter Turn Electrical Actuator Operated Butterfly valvesManufacturer: Cair Euromatic Automation
Brand: Cair
Model: MOD
Characteristic: On - Off Type
Travel: 90 Degree
Indicator: Continuous Position Indicator
Phase: Single Phase
Power Supply: 220V AC
Body Material: Alluminium Alloy
Ambient Temperature: 20°C ~ 80°C
Motor Insulation: Class F
Protection Class: IP 67 Weather Proof
Limit Switch: 1NO 1NC output 220V AC
Position on Power Fail: Stay Put
Manual Override: Provided
Accessories:
- Modulating Type
- Input Signal 4 ~ 20 mA
- Potentiometer Feedback
- Control Valve
- Integral Starter Unit
Butterfly Valve:
Valve Type: Butterfly Valve
Design: Centric Disc Design
Body: ASTM A216 Gr. WCB
Disc: ASTM A494 Gr. Inconel
Shaft: Monel K-500
Seat: NBR ( Nitrile)
Ends: Wafer Type
Leakage: Tight Shut Off
Leakage Class: VI
Working Pressure: Up to 10 Kg/Cm²
Working Temperature: Up to 80°C.
