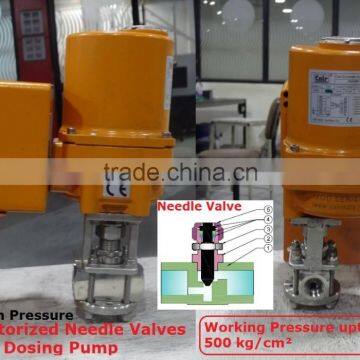

MOTORIZED NEEDLE VALVE

MOTORIZED NEEDLE VALVE FOR PUMP DOSING SYSTEM.

MOTORIZED NEEDLE VALVE

1. 1.        “CAIR”CE APPROVED 220V AC SINGLE PHASE ELECTRICAL ACTUATOR OPERATED NEEDLE VALVE.

ELECTRICAL ACTUATOR DETAILS:

MANUFACTURER                                : CAIR EUROMATIC AUTOMATION PVT LTD

BRAND / MODEL                                : CAIR / MOD

APPROVALS                                       : DESIGN (TUV) / ISO 9001:2008 / CE/ IEC

CHARACTERISTIC                                : ON-OFF / MODULATING TYPE

INDICATOR                                          : CONTINUOUS POSITION INDICATOR

PHASE                                                  : SINGLE PHASE

SUPPLY                                               : 220V AC (±10%), 50Hz (±5%)

BODY MATERIAL                                 : ALUMINUM ALLOY

AMBIENT TEMPERATURE                   : -10°C ~ 55°C

MOTOR INSULATION                          : CLASS F (CAIR}

PROTECTION CLASS                            : IP67 – WEATHER PROOF

POSITION ON POWER FAILURE          : STAY PUT

MANUAL OVERRIDE                           : PROVIDED

NEEDLE VALVE DETAILS:

BODY                           :SS 304/ SS 316 FORGED

TRIMS                          : AISI 304 / 316

ENDS                           : SCREWED TO BSP

SIZE                             : ¼” TO 3” (6MM TO 80MM)

PRESSURE                    : 200 KG/CM² TO 500KG/CM²
