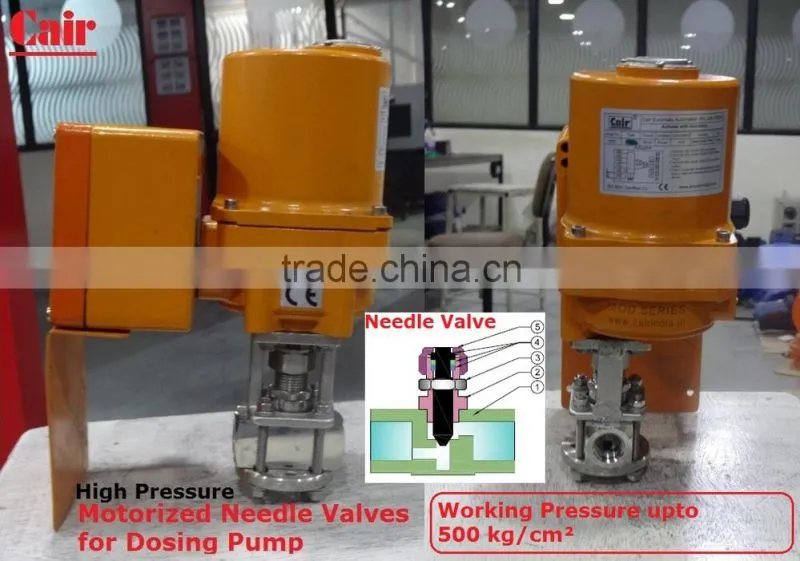

MOTORIZED NEEDLE VALVE FOR PUMP DOSING SYSTEM.
MOTORIZED NEEDLE VALVE
- 1. “CAIR”CE APPROVED 220V AC SINGLE PHASE ELECTRICAL ACTUATOR OPERATED NEEDLE VALVE.
ELECTRICAL ACTUATOR DETAILS:
MANUFACTURER : CAIR EUROMATIC AUTOMATION PVT LTD
BRAND / MODEL : CAIR / MOD
APPROVALS : DESIGN (TUV) / ISO 9001:2008 / CE/ IEC
CHARACTERISTIC : ON-OFF / MODULATING TYPE
INDICATOR : CONTINUOUS POSITION INDICATOR
PHASE : SINGLE PHASE
SUPPLY : 220V AC (±10%), 50Hz (±5%)
BODY MATERIAL : ALUMINUM ALLOY
AMBIENT TEMPERATURE : -10°C ~ 55°C
MOTOR INSULATION : CLASS F (CAIR}
PROTECTION CLASS : IP67 – WEATHER PROOF
POSITION ON POWER FAILURE : STAY PUT
MANUAL OVERRIDE : PROVIDED
NEEDLE VALVE DETAILS:
BODY :SS 304/ SS 316 FORGED
TRIMS : AISI 304 / 316
ENDS : SCREWED TO BSP
SIZE : ¼” TO 3” (6MM TO 80MM)
PRESSURE : 200 KG/CM² TO 500KG/CM²
