Home > Industrial Equipment & Components > Valve > Ball Valve > Motorized Oil Control Valve

Motorized Oil Control Valve

Name: Motorized Oil Control Valve
Brand: Cair
SKU: 117614067
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Control

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Cair Euromatic Automation Pvt. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ahmedabad

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Control

Pressure Medium Pressure

Power Solenoid

Material Casting

Temperature of Media High Temperature

Media Oil

Port Size 1/2" to 12"

Place of Origin Gujarat, India

Model Number Vond

Brand Name Cair

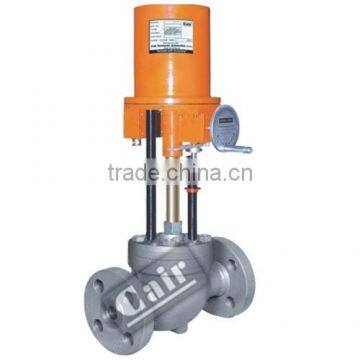

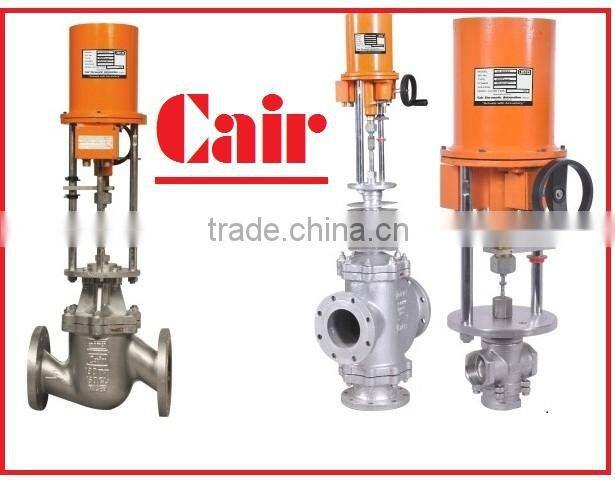

Motorized Thermic Fluid Thermal Oil Control Valves

Cair offers Modulating Type 220V AC Single Phase Electrical Actuator Operated 2 Way Globe Type Control Valve for Hot Air Generator.

Electrical Actuators Details:

Manufacturer: Cair Euromatic Automation Pvt. Ltd.

Brand:Cair

Model: :VOND

Characteristic :Modulating Type

Travel : Linear

Indicator:Continuous Position Indicator

Phase: Single Phase

Input Signal : 4 ~ 20 mA

Output Signal : 4 ~ 20 mA

Power Supply : 220V AC

Body Material : Aluminium Alloy

Ambient Temperature: 20°C ~80°C

Motor Insulation : Class F

Protection Class : IP 65 Weather Proof

Position on Power Fail : Stay Put

Manual Override : Wheel Type

Accessories:

Interface Unit Control Panel

Input Signal: 4 ~ 20 mA

Position Feedback: 4 ~ 20 mA

Size Range: 15 MM To 200 MM

Globe Type Control Valve Details:

Characteristic: Proportionate Type (Equal % Type)

Valve Type: 2 Way Globe Type Flow Pattern

Body: ASTM A216 Gr. WCB IBR & NON IBR

Trims: SS 410

Trim Design: Cage Guided Pressure Balanced

Ends: Flange End to ANSI 16.5 RF (150#)

Bonnet: Standard Gland

Packing: Teflon / Graph oil

Temperature: 250° C

Leakage Class: IV

Working Pressure: 8 Kg/Cm²

Features

Globe Pattern single seated Control Valve.
Precise Regulating with High flow capacity
Large type of trim Top operating design for various duty conditions
In line Repairable Design for easy maintenance
Tight closure even in extreme operating conditions
Multi action type Actuators to meet different application
High flow capacity & range ability
Top operating for easy trim inspection without disturbing the lined.
Designed and tested to deliver 100% performance under specified operating conditions
Wide selection of actuators to meet most requirements
Metal to Metal Seating
Manual Over Ride available
MOC : WCB, CF8, CF8M, CF3M etc.

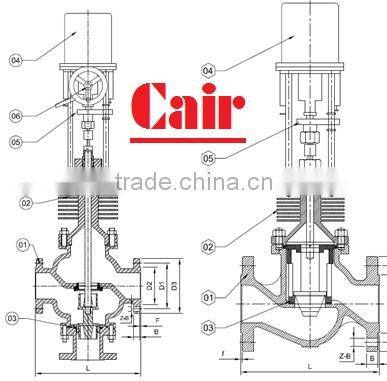

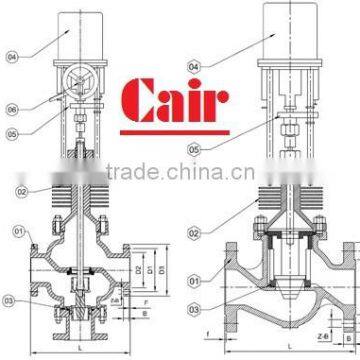

ill of Material

No.	DESCRIPTION	MATERIALS
1	BODY	ASTM A216 / WCB
2	GASKET	S.S.304 SPIRAL WOUND
3	SEAT	S.S 410 / S.S.304
4	VALVE PLUG	S.S 410 / S.S.304
5	CAGE	ASTM A 216 / WCB
6	GASKET	S.S.304 SPIRAL WOUND
7	PIN	S.S.304 / S.S.410
8	STUD + NUT	ASTM A193 / B7-2H
9	BONNET	ASTM A 216 / WCB
10	GLAND PACKING	GRAFOIL / PTFE
11	HEAT TRANSFER FINS	SHEET METAL
12	ACTUATOR	Electric / Pneumatic

Application: Widely used in the fields such as Petroleum, Chemical Industry, Power Plant, Metallurgy, Pharmacy, Paper Industry, Energy, Water Treatment Vessel, Textile, Food Processing, Building Automation Etc..
