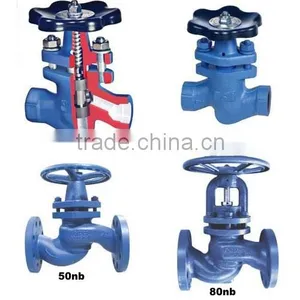

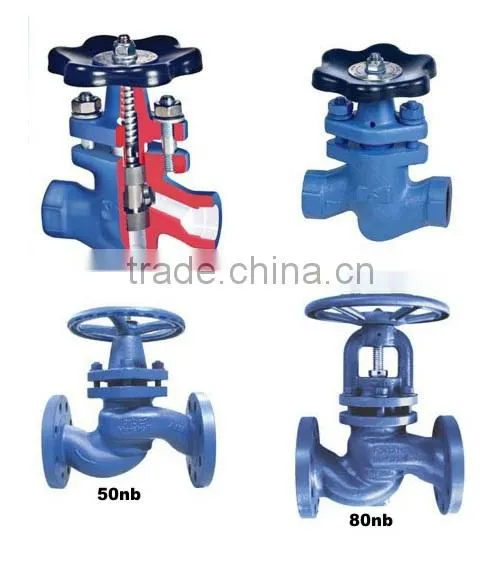

we are manufacturer of all types of Glandless Piston Valve, Piston ValveGlandless Piston Valve
Cair Make Glandless PISTON VALVE is a zero leak isolation Piston Valve, in which the seat & gland are replaced by Lower & Upper Sealing rings along with a Piston. This overcomes the difficulties usually associated with the replacement of conventional seats.
The FM Piston valve is the name for prevention of inline leakage as well as leakage through glands, making for leak-proof isolation in the pipelines.
The FM Piston valve is a seat less & gland less Piston Valve. At the heart of the FM piston valve are Piston & sealing rings. A burnished piston seals against SS reinforced graphite rings to achieve a leak proof shutoff. This unique design ensures a long life even at high temperatures up to 427 deg C
A Burnished piston is connected to the Piston Valve stem & hand wheel. The piston passes through two sealing rings separated by a lantern bush. Each sealing ring is Stainless steel reinforced graphite, which has both features of sustaining compression exerted by Bonnet & providing soft seal against piston. The upper sealing ring acts as a conventional gland packing and prevents leakage towards atmosphere. The lower sealing ring acts as the seat which prevents in line leakage. The lantern bush is required to maintain separation between the upper & lower rings & to allow flow through the Piston Valve.
FEATURES :
Larger effective sealing area :
Leak proof isolation - Class 6 shut off achieved.
Durability - Piston unexposed to media
Absence of Gland & Seat
Maintenance friendly - Uniform sealing rings on both the sides & maintenance can be done without removing the Piston Valve from the pipe line. (On-line Maintenance)
User Friendly - It does not need Piston Valve Key
The Only Scrap Free Piston Valve
Self Lubricating
Self Cleaning
RANGES :
Piston valves provide perfect tightness and durable stability on
different mediums such as steam,superheated steam,heat transfer
fluid,ammonia,L.P.G,acids,alkalies etc.
Size and Pipe Connections :
1. 15 NB / 20 NB / 25 NB /32NB/ 40 NB
Screwed BSPT/NPT ends.
Socket weld ends.
2. 50NB/65NB/80NB/100NB/125NB/150NB/200NB
Flange type :ANSI 150
Flange type :ANSI 300
Limiting Conditions as per IBR norms :
For (15,20,25 & 40NB) socket weld ends.
Maximum operating pressure : 78 bar g
Maximum operating temperature : 425 oC
Maximum hydraulic test pressure: 156 bar g
For 15, 20 & 25NB screwed ends.
Maximum operating pressure : 78 bar g
Maximum operating temperature : 425 oC
Maximum hydraulic test pressure : 156 bar g
For (32-40 NB) screwed ends.
Maximum operating pressure : 41.5bar g
Maximum operating temperature : 425 oC
Maximum hydraulic test pressure: 83 bar g
If you have any inquiry please feel free to contact us.
