Stainles Steel Double Screw Fruit Juice Extracting Machine

Stainles Steel Double Screw Fruit Juice Extracting Machine photo-1
US$ 9,800 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
REPHALE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name REPHALE
Model Number SLZZ10
Processing Types all kinds of ffruit and vegetables
Power(W) 11KW
Voltage 380V-415V
Weight 3000kg
Dimension(L*W*H) 3740*1104*1785mm
Certification CE,ISO
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

stainles steel double screw fruit juice extracting machine
-widely used for different fruits
-low speed press, high yield

 double screw  fruit juice extracting machine

I.Brief introduction

Our  double screw fruit juice extracting machine is composed of main frame,driving system,feeding system,extracting system,hydraulic system,electric controller and outside cover.Pressing screw is rotating,together with the main spindle,material handling spiral collar on the spindle is counter-rotating with the pressing screw.And the pressure can be adjusted easily.

2.Applications

It is used to extract juice from different materials such as grape,

thorn fruit,guava,ginger,spinach,cassava,fresh stalk ,sugar cane, dates,pears,apples,ginger,apricot,

fermented bagasse, fruit fermented peel and other vegetables and fermented vegetables such as celery,

cucumber,sugarbeet,bagasse residue, and other agriculture waste such as manure,cow dung ,etc.

3.Advantages

1.double screw extractor

2.widely used

3.these parts that touch raw material are made of fully stainless steel

4.Double helix low speed press, juice yield is high.
5.Hydraulic control system ensure that humidity can be adjusted.

6.With oving wheels, easy to move and operate

4.Main  parameter



Model

SLZZ10

Capacity

10t/h

Motor

11KW

Weight

3000kg

Discharging Pressure

Hydraulic Adjusting

Driving screw size

Diameter 500

Pressing Screw

Diameter 500

Dimensions

3740×1104×1785mm

 Hydraulic Pressure

1-5Mpa

Oil Pump Motor

0.37KW



More pictures

work plant

stainles steel double screw fruit juice extracting machine

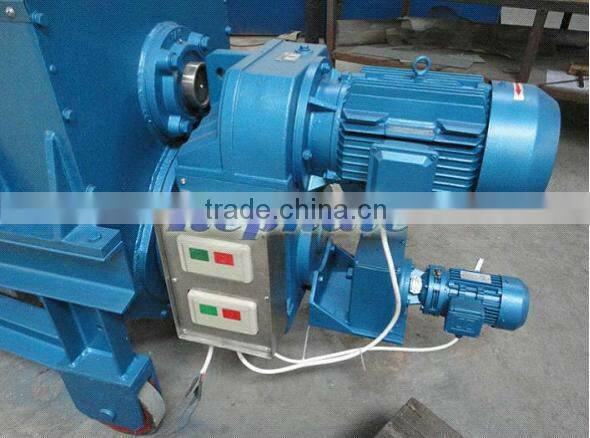

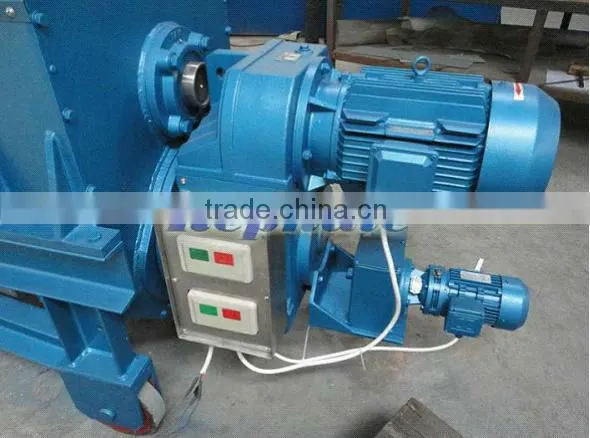

double screw

stainles steel double screw fruit juice extracting machine



stainles steel double screw fruit juice extracting machine



suitable fruit

 stainles steel double screw fruit juice extracting machine

Packing pictures

 double screw extracting fruit juice machine

We can design and quote different models according to customers’ need,please indicate below when you inquire.Thank u:

1.Raw material you want to process

2.You need the capacity or output

3.Electricity in your country,voltage,HZ and phases

4.Port name you want us to send to

Cautions:

1.Please distinguish us with our logo 'REPHALE" for every picture of our machine.Customer can contact us by mail to ask for big and clear pictures to distinguish us from the orther false trading companies.

2.Please confirm that our company mail is with ,  or   as annex.There is some people is using similar mail as ours to cheat customer,please take care.

3.Please be confirmed that customer can pay to REPHALE MACHINERY TECHNOLOGY DEVELOPMENT CO,LTD or ZHENGZHOU REPHALE MACHINERY CO,LTD two US Doallars account.Except these ,other account is not from our company ,please be cautious.

4.All of the machines we are selling and producing are all with one year waranty EXCEPT the wearing parts and electric parts.If customer need special electric parts like Simons or have different voltage,HZ and phases (China is 380V,650HZ,3phases)please indicate before set the order.

5.If machine is small machine ,we will send by air ,the air freight will be calculated through alibaba directly or we will find an agent if customer trust us .The freight will not be negotiated

6.The machine with big electric motor can not be sent by air .We will send by sea,the freight will be quoted through shipping company,the sea freight will not be negotiable.

7.The package for air cargo is by carton.The package for sea cargo will be packed by Non fumigation export worthy wooden case,we will charge for the package accordingly because our package is made by expert packing company .

8.The price here marked is EXW Price. But some of price have a small mistake because some new staff dosen't know the exact price and present discount to customer.The freight modle is just for general references,the real cost will be calculated by the air cargo company .Customer also can look for the forwarder to fetch the machine from us . Therefore, please chat with our service man on line to confirm before set the order.
