Help Center2012 China Bast Selling TH500 Series Bucket Elevator Conveyor Manufacturer With ISO Certificated
Related Products
-
Popular Sell in Russia and Malaysia TH400 Series Bucket Elevator Conveyor Manufacturer With ISO CertificatedUS$ 2,000 - 60,000MOQ: 1 Set -
2013 China Heavy-duty TH315 Series Vertical Bucket Elevator Manufacturer With ISO CertificateUS$ 2,000 - 60,000MOQ: 1 Set
-
Popular Sell in Asia and Africa TH200 Series Bucket Elevator Conveyor SuppliersUS$ 2,000 - 60,000MOQ: 1 Set
-
2012 Hot Sell TH160 Series Elevator Bucket SuppliersUS$ 2,000 - 60,000MOQ: 1 Set
-
TH Series Bucket ElevatorUS$ 2,000 - 60,000MOQ: 1 Set
Specifications
1.ISO9001:20082.long service life
3.stable driving easy operation
4. Suitable to convey powder grain and small lump material

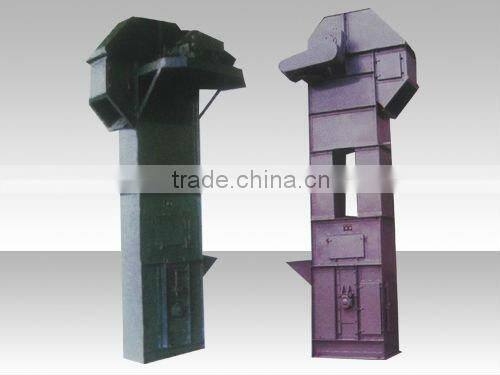

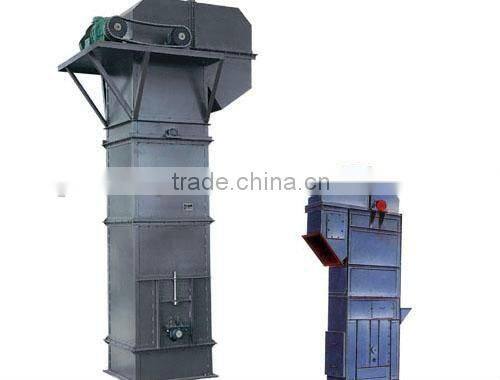

TH Bucket Elevator
TH Bucket Elevator is characterized by large conveying volume, high lifting height, stable driving, easy operation and maintenance and long service life etc. It’s suitable to convey powder, grain and small lump material. The material density is less than 1.5t/m3. The temperature of scattered material is not above 250 centigrade.
Technical parameters:
Model |
TH160 |
TH200 |
TH250 |
TH315 |
TH400 |
TH500 |
TH630 |
||||||||
Bucket mode |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
ZH |
SH |
|
Conveying capacity(100%)m3/h |
15.77 |
24.97 |
17.87 |
28.6 |
31.43 |
48.19 |
35 |
59 |
58 |
94 |
73 |
118 |
114 |
185 |
|
Bucket |
Bucket capacity (for water)lifter |
1.2 |
1.9 |
1.5 |
2.4 |
3.0 |
4.6 |
3.75 |
6.0 |
5.9 |
9.5 |
9.3 |
15.0 |
14.6 |
23.6 |
Bucket pitch(mm) |
500 |
512 |
688 |
||||||||||||
Chain |
Round steel diameter×pitch(mm) |
Φ14×50 |
Φ18×64 |
Φ22×86 |
|||||||||||
Tensile load per unit(kn) |
≥190 |
≥320 |
≥480 |
||||||||||||
Speed of transmission Sprocket(r.p.m) |
69.71 |
63.22 |
44.11 |
42.5 |
37.6 |
35.8 |
31.8 |
||||||||
Max. conveying size(mm) |
20 |
25 |
30 |
35 |
40 |
50 |
66 |
||||||||
