Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Luoyang Mining Machinery Gold Sand Separator Mineral Processing Spiral Classifier New Condition With BV ISO CE Certificate
Luoyang Mining Machinery Gold Sand Separator Mineral Processing Spiral Classifier New Condition With BV ISO CE Certificate
US$ 3,900 - 19,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, spiral classifier
Application:
mining, building, coal and so on
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin qingdao shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mineral Processing Gold Silver Lead Zinc 2FG-20 Double Spiral ClassifierUS$ 3,900 - 190,000MOQ: 1 Set -
High Efficiency 2FG-20 Double Spiral ClassifierUS$ 3,900 - 190,000MOQ: 1 Set
-
2FC-15 Type Mineral Processing Magnetic Separator With Negotiable Price by Luoyang ZhongdeUS$ 3,900 - 190,000MOQ: 1 Set
-
HOT SALE!!! High-efficiency Spiral Classifier With Reasonable Price and Good Quality Manufatured by ZhongdeUS$ 3,900 - 19,000MOQ: 1 Set
-
Spiral Classifier,mining Spiral Classifier,spiral Classifier MachineUS$ 3,900 - 190,000MOQ: 1 Set
Condition
New
Type
Other, spiral classifier
Application
mining, building, coal and so on
Motor Type
AC Motor
Power(W)
40000
Capacity(t/h)
23300(sand-return)
Place of Origin
Henan, China
Brand Name
Zhongde
Model Number
2FG-30
Dimension(L*W*H)
16020*6640*6350mm
Weight
depend on the specific product
Certification
ISO,BV,CE certificate etc.
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Introduction
Spiral classifier,working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. Its external appearance is a rectangular oblique chute, whose bottom is semi-circular.

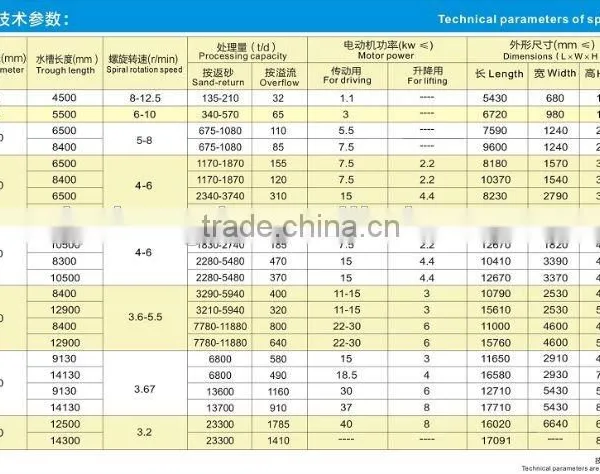

Technical parameters
| Model | Spiral diameter(mm) | Trough length(mm) | Spiral rotation speed(r/min) | Capacity:sand-return(t/d) | Capacity: overflow(t/d) | Motor power for driving(kw≤) | Motor power for lifting(kw≤) | Dimensions( Length*Width*Height)(mm≤) |
| FG-5 | 500 | 4500 | 8-12.5 | 135-210 | 32 | 1.1 | - | 5430*680*1480 |
| FG-7 | 750 | 5500 | 6-10 | 340-570 | 65 | 3 | - | 6720*980*1820 |
| FG-10 | 1000 | 6500 | 5-8 | 675-1080 | 110 | 5.5 | - | 7590*1240*2380 |
| FC-10 | 1000 | 8400 | 5-8 | 675-1080 | 85 | 7.5 | - | 9600*1240*2680 |
| FG-15 | 1500 | 8300 | 4-6 | 1830-2740 | 235 | 7.5 | 2.2 | 10410*1880*4080 |
| FC-15 | 1500 | 10500 | 4-6 | 1830-2470 | 185 | 7.5 | 2.2 | 12670*1820*4890 |
| 2FG-15 | 1500 | 8300 | 4-6 | 2280-5480 | 470 | 15 | 4.4 | 10410*3390*4080 |
| 2FC-15 | 1500 | 10500 | 4-6 | 2280-5480 | 370 | 15 | 4.4 | 12670*3370*4890 |
| 2FC-20 | 2000 | 12900 | 3.6-5.5 | 7780-11880 | 640 | 22-30 | 6 | 15760*4600*5640 |
| FG-24 | 2400 | 9130 | 3.67 | 6800 | 580 | 15 | 3 | 11650*2910*4970 |
| FC-24 | 2400 | 14130 | 3.67 | 6800 | 490 | 18.5 | 4 | 16580*2930*7190 |
| 2FG-24 | 2400 | 9130 | 3.67 | 13600 | 1160 | 30 | 6 | 12170*5430*5690 |
| 2FC-24 | 2400 | 14130 | 3.67 | 13700 | 910 | 37 | 8 | 17710*5430*8000 |
| 2FG-30 | 3000 | 12500 | 3.2 | 23300 | 1785 | 40 | 8 | 16020*6640*6350 |
| 2FC-30 | 3000 | 14300 | 3.2 | 23300 | 1410 | - | - | 17091*-*8680 |

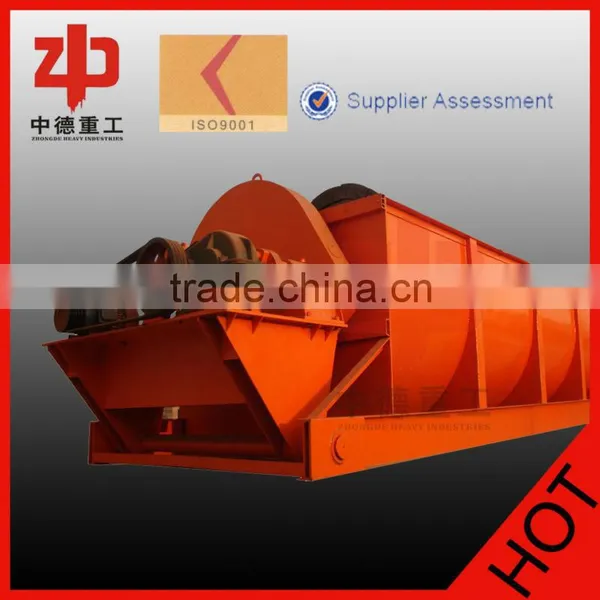

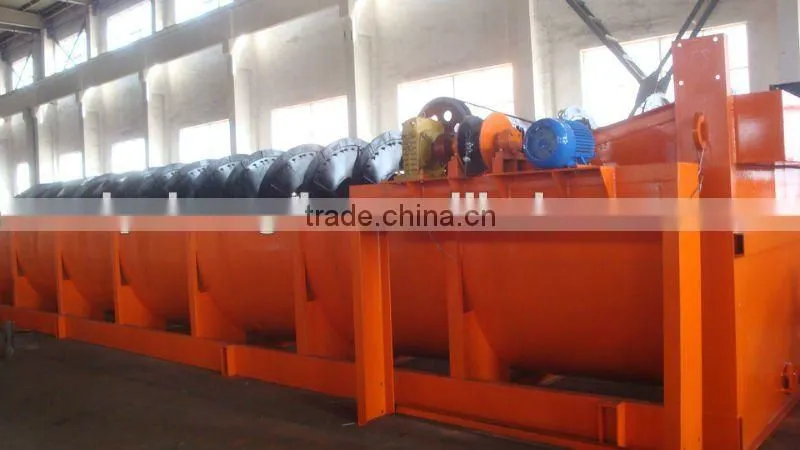

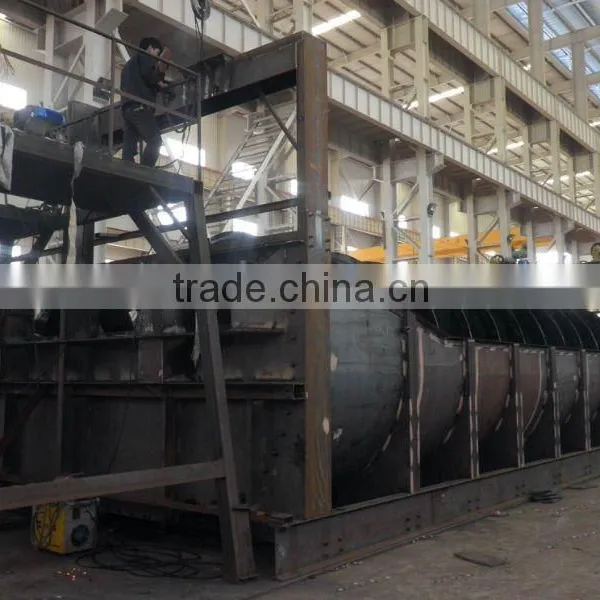

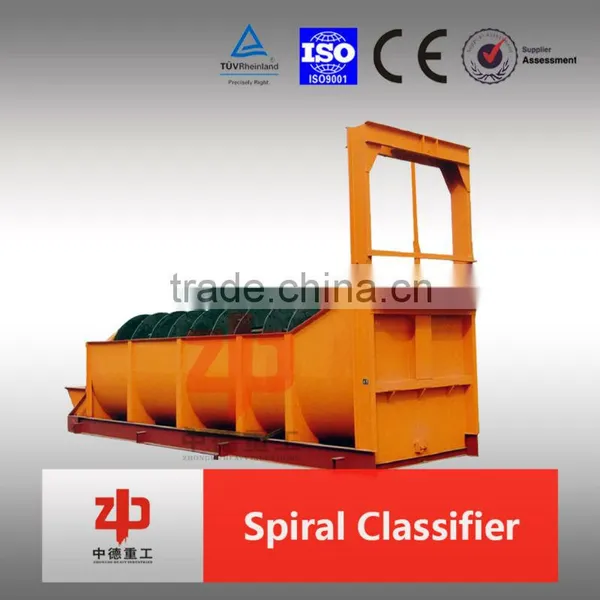

Pictures of Products

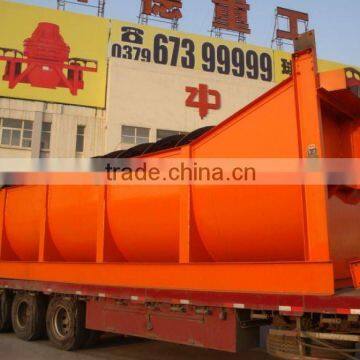

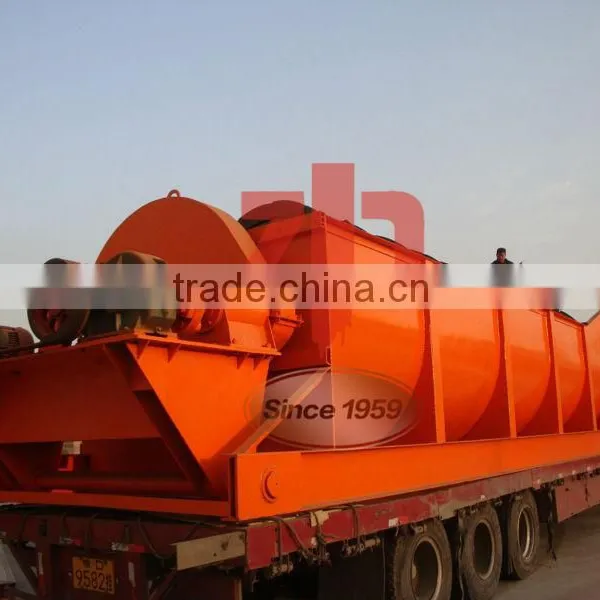

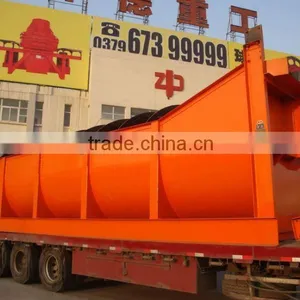

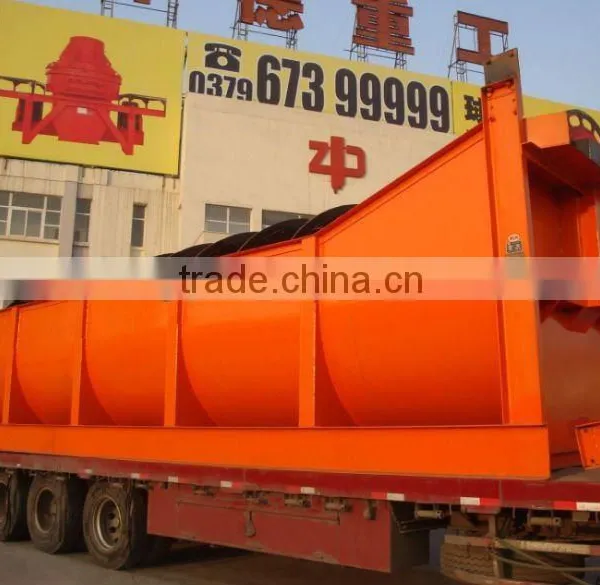

Packaging & Shipping
Our Services
1. Installation and adjustment of the machine:
Technicist will be provided by supplier for buyer to assist the work such as welding connection
of shell body, equipment installation, adjustment, training, etc.
2. Warrantly period is one year except the easy-wearing parts.
3.Technical support of Spiral Classifier is provided from the beginning to the end.
4.Spare parts of Spiral Classifier are serviced for sale in the whole year.
Company Information
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
50,000-100,000 square meters
Total Employees
101 - 200 People
