Rock Washer, Stone Washing Machine, Ore Washing
US$ 3,900 - 190,000
/ Set
1 Set(Min. Order)
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Spiral Classifier For Mineral Processing by Zhongde
-
High Efficiency Mineral Processing Spiral Classifier With Large Capacity
-
China Professional Manufacture Provide Energy Saving High Weir Spiral Classifier
-
Spiral Classifier,Spiral Sand Washer,Screw Sand Washer
-
Spiral Classifier,Classifier Spiral,Spiral Classifier Machine
-
Low Consumption Lowest Price Gold Ore Spiral Classifier With High Efficiency
Product Details
| Condition | New | Type | Sprial Separator | |
| Production Capacity | 15kw | Place of Origin | Henan, China | |
| Brand Name | zhongde | Model Number | FG-2.0*12.9m | |
| Voltage | 380v, 415v | Power(W) | 15kw | |
| Dimension(L*W*H) | 15610*2530*5340mm | Weight | 28.5t | |
| Certification | ISO. BV | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction :
Spiral classifier,working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. Its external appearance is a rectangular oblique chute, whose bottom is semi-circular.There is 1 or 2 vertical axles installed in the chute, spiral blades are installed along the axle one after another.
Types:
According to the height of the surface of the liquid classification, the machines can be divided into high weir type and immersed weir type.
Technical parameters:
| Model | Spiral diameter(mm) | Trough length(mm) | Spiral rotation speed(r/min) | Capacity:sand-return(t/d) | Capacity:overflow(t/d) | Motor power for driving(kw≤) | Motor power for lifting(kw≤) | Dimensions(Length*Width*Height)(mm≤) |
| FG-5 | 500 | 4500 | 8-12.5 | 135-210 | 32 | 1.1 | - | 5430*680*1480 |
| FG-7 | 750 | 5500 | 6-10 | 340-570 | 65 | 3 | - | 6720*980*1820 |
| FG-10 | 1000 | 6500 | 5-8 | 675-1080 | 110 | 5.5 | - | 7590*1240*2380 |
| FC-10 | 1000 | 8400 | 5-8 | 675-1080 | 85 | 7.5 | - | 9600*1240*2680 |
| FG-12 | 1200 | 6500 | 4-6 | 1170-1870 | 155 | 7.5 | 2.2 | 8180*1570*3110 |
| FC-12 | 1200 | 8400 | 4-6 | 1170-1870 | 120 | 7.5 | 2.2 | 10370*1540*3920 |
| 2FG-12 | 1200 | 6500 | 4-6 | 2340-3740 | 310 | 15 | 4.4 | 8230*2790*3110 |
| 2FC-12 | 1200 | 8400 | 4-6 | 2340-3740 | 240 | 15 | 4.4 | 10370*2790*3920 |
| FG-15 | 1500 | 8300 | 4-6 | 1830-2740 | 235 | 7.5 | 2.2 | 10410*1880*4080 |
| FC-15 | 1500 | 10500 | 4-6 | 1830-2470 | 185 | 7.5 | 2.2 | 12670*1820*4890 |
| 2FG-15 | 1500 | 8300 | 4-6 | 2280-5480 | 470 | 15 | 4.4 | 10410*3390*4080 |
| 2FC-15 | 1500 | 10500 | 4-6 | 2280-5480 | 370 | 15 | 4.4 | 12670*3370*4890 |
| FG-20 | 2000 | 8400 | 3.6-5.5 | 3290-5940 | 400 | 11-15 | 3 | 10790*2530*4490 |
| FC-20 | 2000 | 12900 | 3.6-5.5 | 3210-5940 | 320 | 11-15 | 3 | 15610*2530*5340 |
| 2FG-20 | 2000 | 8400 | 3.6-5.5 | 7780-11880 | 800 | 22-30 | 6 | 11000*4600*4490 |
| 2FC-20 | 2000 | 12900 | 3.6-5.5 | 7780-11880 | 640 | 22-30 | 6 | 15760*4600*5640 |
| FG-24 | 2400 | 9130 | 3.67 | 6800 | 580 | 15 | 3 | 11650*2910*4970 |
| FC-24 | 2400 | 14130 | 3.67 | 6800 | 490 | 18.5 | 4 | 16580*2930*7190 |
| 2FG-24 | 2400 | 9130 | 3.67 | 13600 | 1160 | 30 | 6 | 12170*5430*5690 |
| 2FC-24 | 2400 | 14130 | 3.67 | 13700 | 910 | 37 | 8 | 17710*5430*8000 |
| 2FG-30 | 3000 | 12500 | 3.2 | 23300 | 1785 | 40 | 8 | 16020*6640*6350 |
| 2FC-30 | 3000 | 14300 | 3.2 | 23300 | 1410 | - | - | 17091*-*8680 |

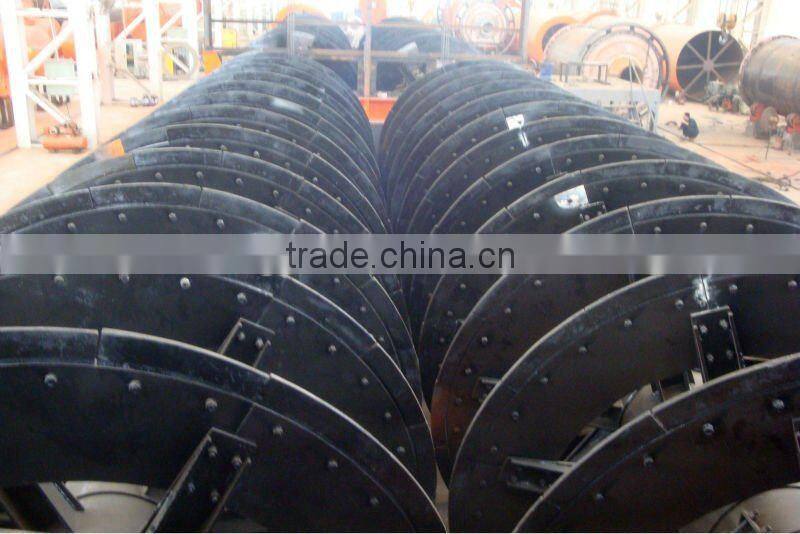

Pictures for reference:
manufacturing process of the spiral classifier:
