Screw Classifier, Sand Classifier for Sale, With Best Quality, Hot in Asia
US$ 3,900 - 190,000
/ Set
1 Set(Min. Order)
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Mining Log Washer, Minral Washing Spiral Classifier Machine
-
Spiral Classifier Hot for Minerals, Log Washer With Best Quality
-
Concentrating Spiral Classifier Used for Mining, Quarry, Mineral Project Hot in Africa, East Asia
-
China Professional Manufacture Provide Energy Saving High Weir Spiral Classifier
-
Gravity Gold Sand Separator Machine With ISO Approved
-
Close Circulation Spiral Classifier in Ore-dressing
Product Details
| Condition | New | Type | Sprial Separator | |
| Production Capacity | 320t/d | Place of Origin | Henan, China | |
| Brand Name | zhongde | Model Number | FC-20 | |
| Voltage | 380v,415v. various | Power(W) | 11-15kw | |
| Dimension(L*W*H) | 15610*2530*5340mm | Weight | 28.5t | |
| Certification | CE ISO | Warranty | 1year, 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Introduction of spiral classifier:
Spiral classifier,working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. Its external appearance is a rectangular oblique chute, whose bottom is semi-circular.There is 1 or 2 vertical axles installed in the chute, spiral blades are installed along the axle one after another.
Types of spiral classifier:
According to the height of the surface of the liquid classification, the machines can be divided into high weir type and immersed weir type.
Technical parameters of spiral classifier:
| Model | Spiral diameter(mm) | Trough length(mm) | Spiral rotation speed(r/min) | Capacity:sand-return(t/d) | Capacity:overflow(t/d) | Motor power for driving(kw≤) | Motor power for lifting(kw≤) | Dimensions(Length*Width*Height)(mm≤) |
| FG-5 | 500 | 4500 | 8-12.5 | 135-210 | 32 | 1.1 | - | 5430*680*1480 |
| FG-7 | 750 | 5500 | 6-10 | 340-570 | 65 | 3 | - | 6720*980*1820 |
| FG-10 | 1000 | 6500 | 5-8 | 675-1080 | 110 | 5.5 | - | 7590*1240*2380 |
| FC-10 | 1000 | 8400 | 5-8 | 675-1080 | 85 | 7.5 | - | 9600*1240*2680 |
| FG-12 | 1200 | 6500 | 4-6 | 1170-1870 | 155 | 7.5 | 2.2 | 8180*1570*3110 |
| FC-12 | 1200 | 8400 | 4-6 | 1170-1870 | 120 | 7.5 | 2.2 | 10370*1540*3920 |
| 2FG-12 | 1200 | 6500 | 4-6 | 2340-3740 | 310 | 15 | 4.4 | 8230*2790*3110 |
| 2FC-12 | 1200 | 8400 | 4-6 | 2340-3740 | 240 | 15 | 4.4 | 10370*2790*3920 |
| FG-15 | 1500 | 8300 | 4-6 | 1830-2740 | 235 | 7.5 | 2.2 | 10410*1880*4080 |
| FC-15 | 1500 | 10500 | 4-6 | 1830-2470 | 185 | 7.5 | 2.2 | 12670*1820*4890 |
| 2FG-15 | 1500 | 8300 | 4-6 | 2280-5480 | 470 | 15 | 4.4 | 10410*3390*4080 |
| 2FC-15 | 1500 | 10500 | 4-6 | 2280-5480 | 370 | 15 | 4.4 | 12670*3370*4890 |
| FG-20 | 2000 | 8400 | 3.6-5.5 | 3290-5940 | 400 | 11-15 | 3 | 10790*2530*4490 |
| FC-20 | 2000 | 12900 | 3.6-5.5 | 3210-5940 | 320 | 11-15 | 3 | 15610*2530*5340 |
| 2FG-20 | 2000 | 8400 | 3.6-5.5 | 7780-11880 | 800 | 22-30 | 6 | 11000*4600*4490 |
| 2FC-20 | 2000 | 12900 | 3.6-5.5 | 7780-11880 | 640 | 22-30 | 6 | 15760*4600*5640 |
| FG-24 | 2400 | 9130 | 3.67 | 6800 | 580 | 15 | 3 | 11650*2910*4970 |
| FC-24 | 2400 | 14130 | 3.67 | 6800 | 490 | 18.5 | 4 | 16580*2930*7190 |
| 2FG-24 | 2400 | 9130 | 3.67 | 13600 | 1160 | 30 | 6 | 12170*5430*5690 |
| 2FC-24 | 2400 | 14130 | 3.67 | 13700 | 910 | 37 | 8 | 17710*5430*8000 |
| 2FG-30 | 3000 | 12500 | 3.2 | 23300 | 1785 | 40 | 8 | 16020*6640*6350 |
| 2FC-30 | 3000 | 14300 | 3.2 | 23300 | 1410 | - | - | 17091*-*8680 |

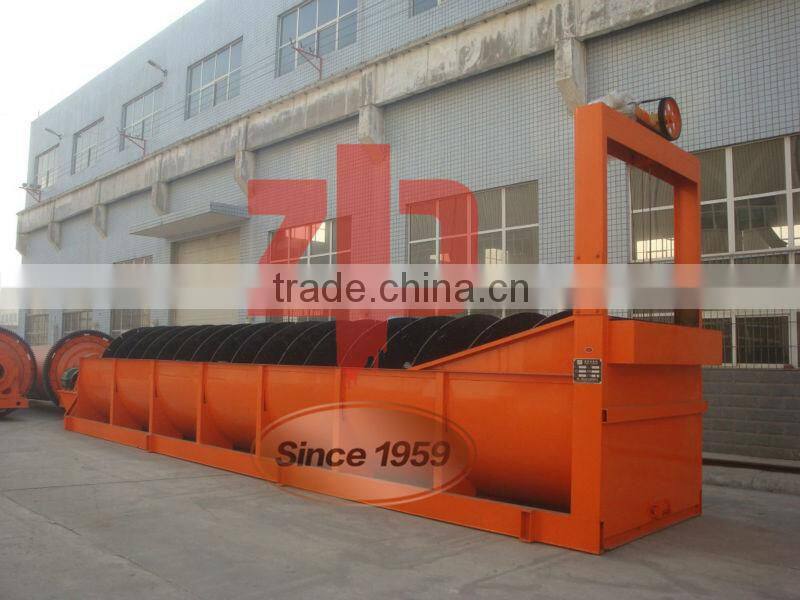

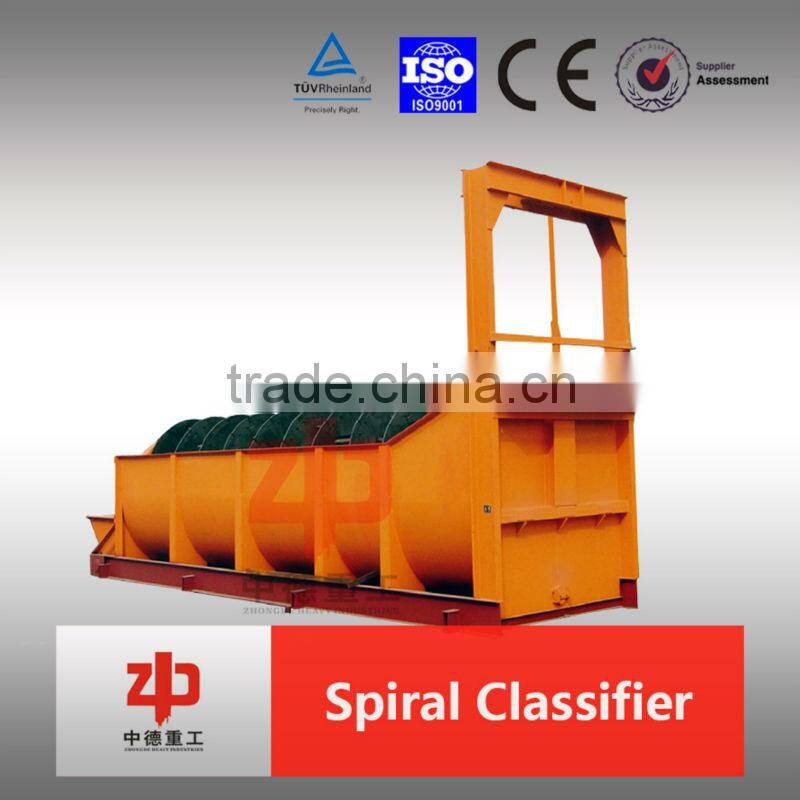

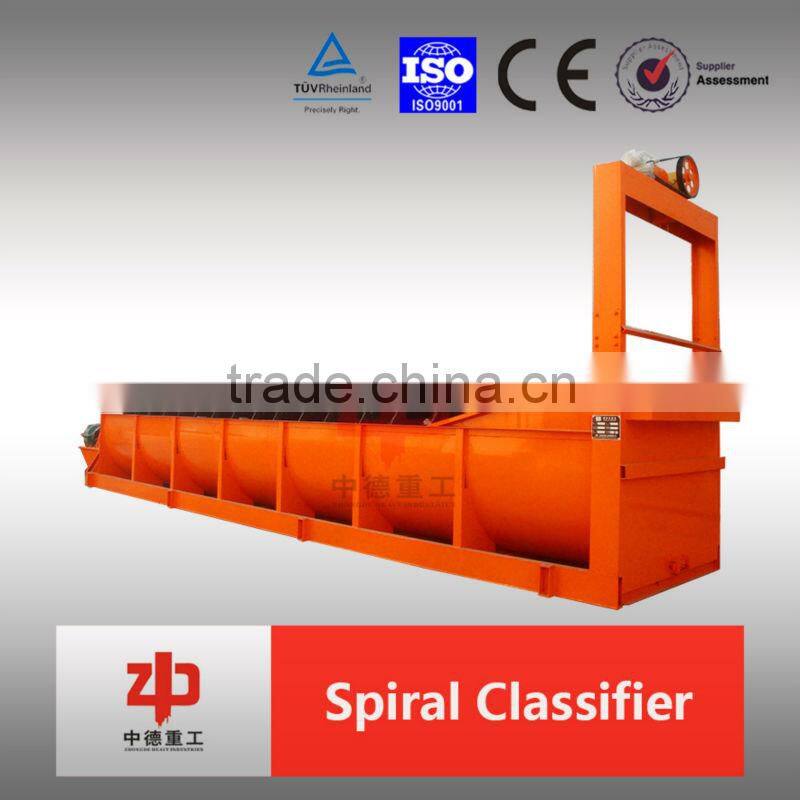

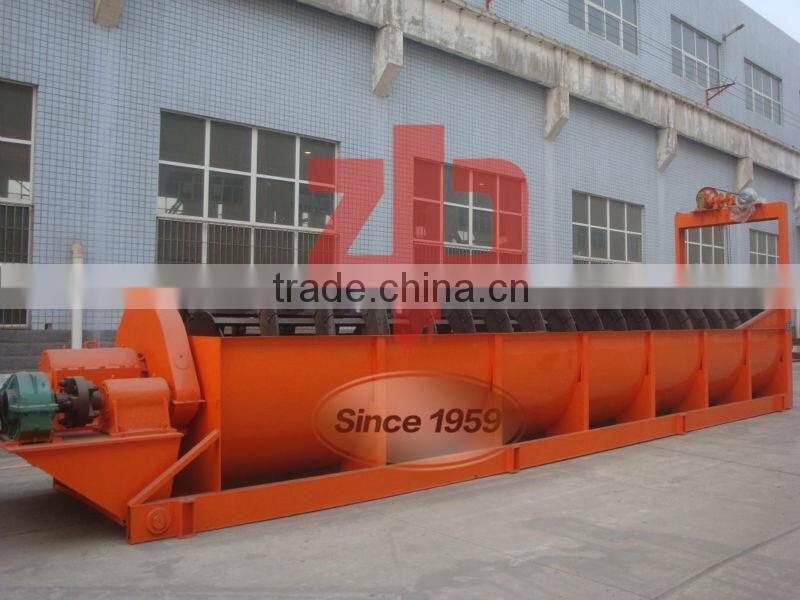

Pictures of spiral classifier:

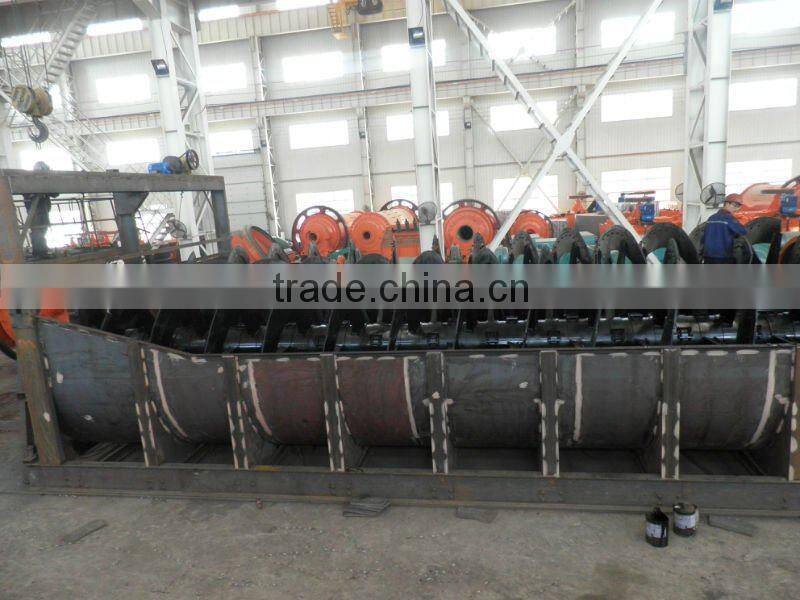

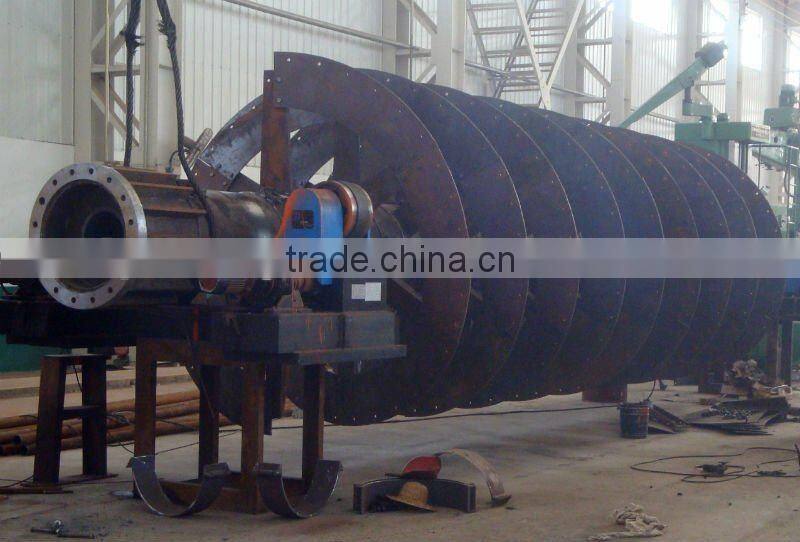

manufacturing process of the spiral classifier:

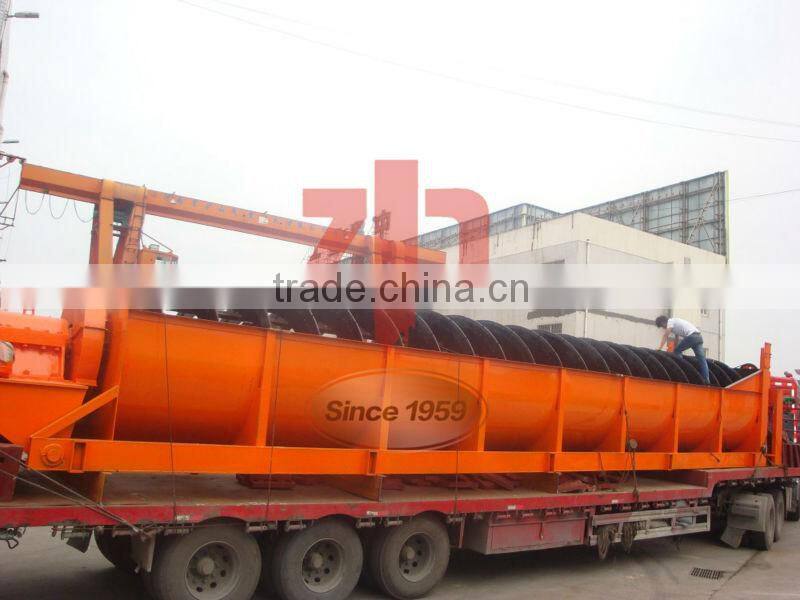

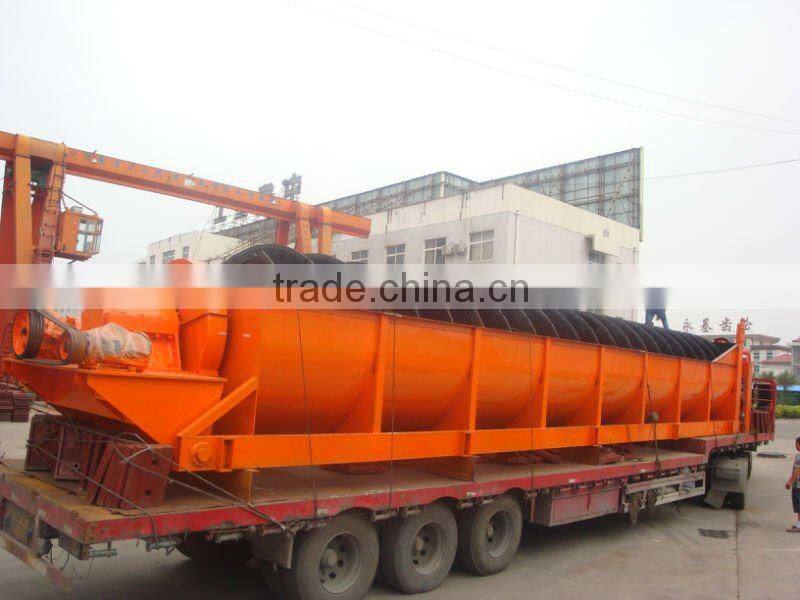

Packaging & Shipping

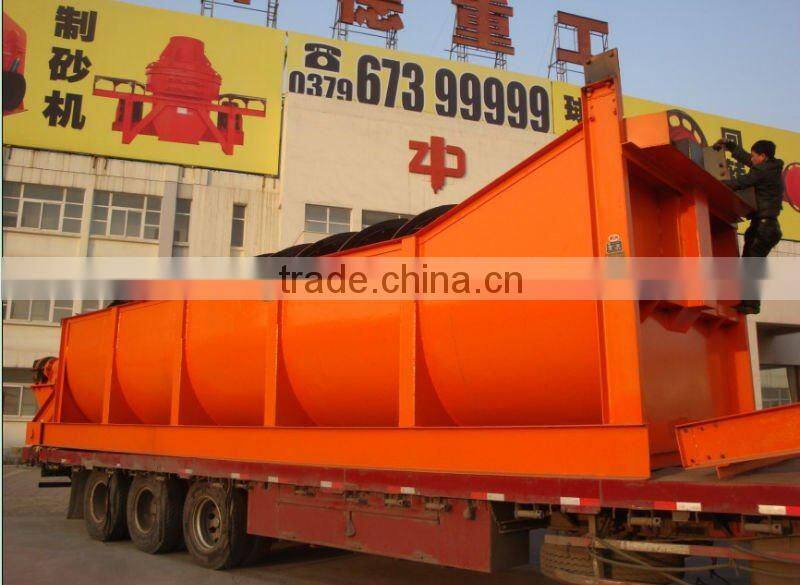

As for delivery of spiral classifier, if the spiral classifier is small enough that can be put into container for delivery. If the size is so big that it can not be put into container, it will be shipped by bulk cargo.

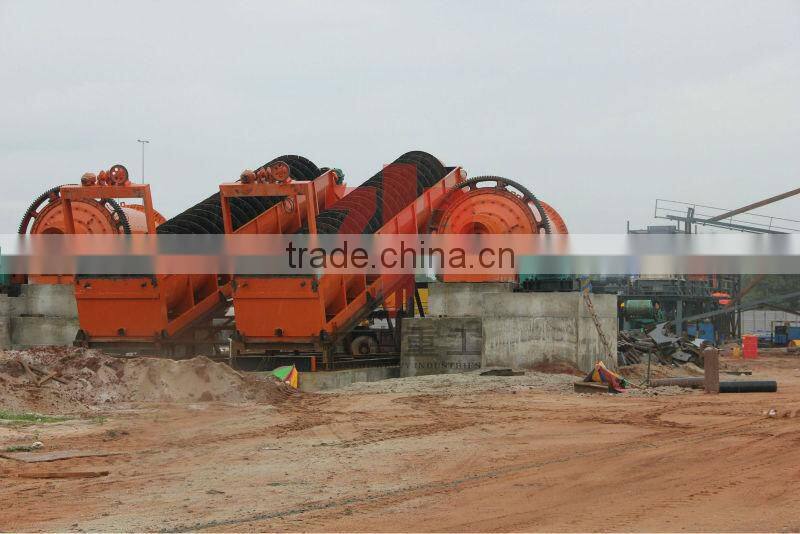

Pictures on site
