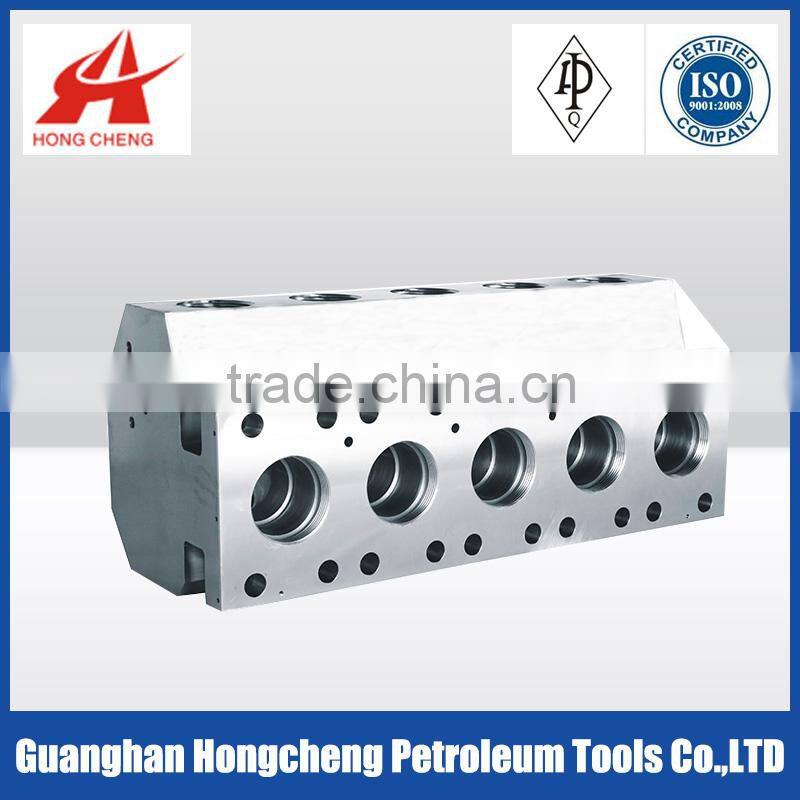

2500hp Quentuplex Plunger Pump Parts

Plunger

Diameter

Output

Per Rev

DISPLACEMENT AT PUMP STROKES PER MINUTE/PINION RPM

111/705

150/953

200/1271

250/1588

330/2100

In

(mm)

Gal/Rev

(Liter/Rev)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

3 1/2in.

(88.9)

1.67

(6.3)

185

(700)

20000

(137.9)

251

(950)

15365

(105.9)

334

(1264)

11546(79.6)

418

(1582)

9226(63.6)

551

(2086)

6999

(48.2)

3 3/4in.

(95.3)

1.91

(7.2)

212

(802)

17420

(120.1)

287

(1086)

13437

(92.6)

382

(1446)

10096(69.2)

478

(1809)

8068(55.6)

630

(2385)

6121

(42.2)

4 in.

(101.6)

2.17

(8.2)

241

(912)

15315

(105.6)

326

(1234)

11830

(81.5)

434

(1643)

8886(61.2)

543

(2055)

7102(48.3)

716

(2710)

5386

(37.1)

4 1/2 in.

(114.3)

2.75

(10.4)

305

(1154)

12100

(83.4)

413

(1563)

9338

(64.4)

550

(2082)

7012(48.3)

688

(2604)

5605(38.6)

908

(3437)

4247

(29.2)

5 in.

(127)

3.4

(12.9)

377

(1427)

9800

(67.5)

510

(1930)

7562

(52.1)

680

(2574)

5671(39.1)

850

(3217)

4537(31.2)

1122

(4247)

3437

(23.7)

5 1/2 in.

(139.7)

4.11

(15.6)

456

(1726)

8100

(55.8)

617

(2335)

6250

(43.1)

822

(3111)

4692(32.2)

1028

(3891)

3751(25.8)

1356

(5132)

2844

(19.6)

5 3/4 in.

(146.1)

4.49

(17)

498

(1885)

7410

(51.1)

674

(2551)

5722

(39.4)

898

(3399)

4295(29.6)

1123

(4251)

3434(23.6)

1482

(5609)

2602

(17.9)

6in.

(152.4)

4.89

(18.5)

543

(2055)

6805

(46.9)

734

(2778)

5254

(36.2)

978

(3702)

3943(27.1)

1223

(4629)

3153(21.7)

1619

(6109)

2382

(16.4)

6 1/2in.

(165.1)

5.74

(21.7)

637

(2411)

5800

(40)

861

(3259)

4479

(30.8)

1148

(4345)

3359(23.1)

1435(5431)

2687(18.5)

1894(7169)

2036

(14)

INPUT POWER: BHP (KW)

2400(1790)

2500(1866)

2500(1866)

2500(1866)

2500(1866)
