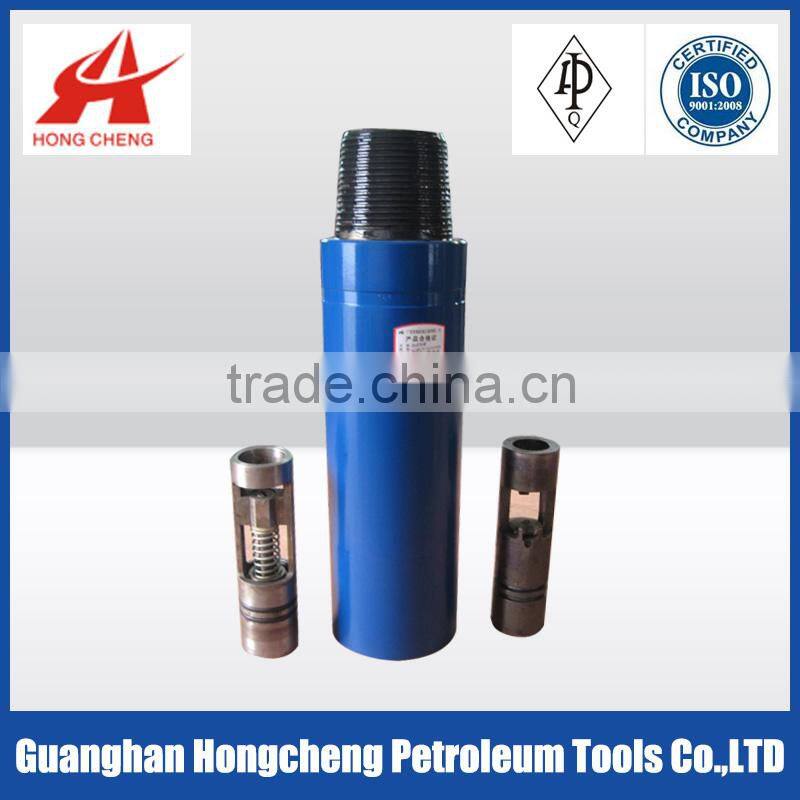

Float Valve Sub and Float Valve for Oil Drilling 203
- Tianjin Port; Shenzhen Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | Hongcheng | |
| Model Number | FZF203/70-6 5/8 in. REC*6 5/8 in. REC | Type | Bop | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Other, 40CrNiMo, 4145H & 4137H | Processing Type | Casting | |
| Use | Well Drilling |
Product Description
1. High Strength
Max working pressure: 15000psi (this type is not in the list below, need reservation)
2. API Standard
This product is designed and manufactured in accordance with the petroleum and natural gas industry standard of People’s Republic of China Drilling Tool Check Valve (SY/T 5215-2005) and API7-1 standard.
3. Excellent Cost Performance
As an original manufacturer, we are sure that we can supply the tool you need in most reasonable price.
Major technical parameters and dimensions:
Model | Bore mm | Joint spec. | Upper thread | Lower thread | Model of float valve core | |
Type A | Type B | |||||
FZF121/70-NC38×NC38 | 38.1 | 121×610 | NC38 | NC38 | 3F | 1F-2R |
FZF121/70-NC38×3 1/2 in. REC | 38.1 | 121×610 | NC38 | 3 1/2 in. REG | ||
FZF165/70-NC46×4 1/2 in. REC | 65 | 165×610 | NC46 | 5 1/2 in. REG | 4R | 3 1/2 in. IF |
FZF165/70-NC50×4 1/2 in. REC | 65 | 165×610 | NC50 | 4 1/2 in. REG | ||
FZF165/70-NC50×NC50 | 71.4 | 165×610 | NC50 | NC50 | ||
FZF178/70-NC50×NC50 | 71.4 | 178×610 | NC50 | NC50 | ||
FZF203/70-6 5/8 in. REC×6 5/8 in. REC | 71.4 | 203×915 | 6 5/8 in. REC | 6 5/8 in. REC | 5F-6R | |
FZF203/70-7 5/8 in. REC×6 5/8 in. REC | 71.4 | 203×915 | 7 5/8 in. REC | 6 5/8 in. REC | ||
