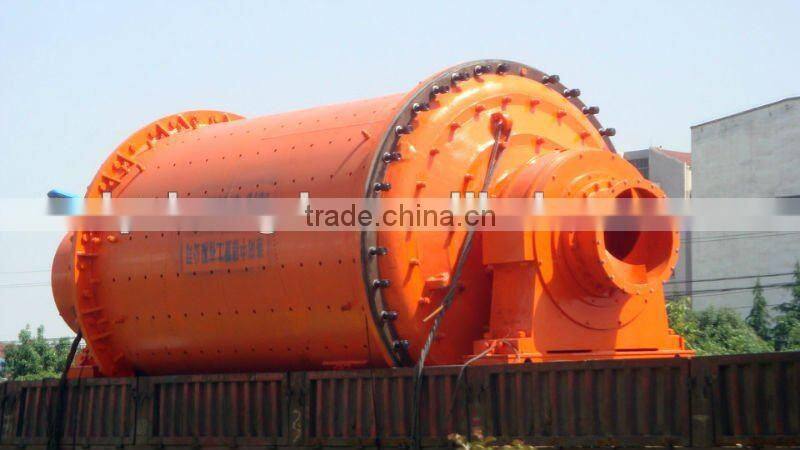

2013 hot sell in Sultan MBS(Y)-2436 milling balls manufacturer from China Luoyang Zhongde

Specifications

1.Customized products
2.ISO9001:2008
3.Effective volume:4.5-54m3
4.Capacity:6-190t/h
5.Discharging size:2.0-0.15mm

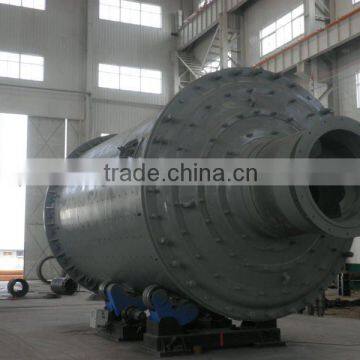

Tube Mill

Application:

Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.

Technical parameter



Model	Diameter of cylinder(mm)	Length of cylinder(mm)	Effective volume(m3)	Max. rod loading(t)	Speed(r/min)	Capacity(t/h)	Discharging size(mm)	Main motor(kw)	Weight(t)
MBS(Y)-1530	1500	3000	4.5	8	27	15-6	2.0-0.15	90	18
MBS(Y)-1830	1830	3000	6.7	14	23.7	20-9	2.0-0.15	155	34.5
MBS(Y)- 1832	1830	3200	7.2	15	23.7	22-10	2.0-0.15	155-180	36
MBS(Y)- 2130	2100	3000	8.8	18	21.4	30-12	2.0-0.15	210	45
MBS(Y)- 2132	2100	3200	9.6	20	21.4	32-12.8	2.0-0.15	210	47
MBS(Y)- 2136	2100	3600	11	23	21.4	35-14	2.0-0.15	245	48.5
MBS(Y)- 2230	2200	3000	10	21	19	34-13	2.0-0.15	245	50
MBS(Y)- 2236	2200	3600	12	25	19	40-16	2.0-0.15	245	52
MBS(Y)- 2430	2400	3000	12	25	19	40-17	2.0-0.15	280	53.5
MBS(Y)- 2436	2400	3600	14	29	19	47-19	2.0-0.15	320	61
MBS(Y)- 2730	2700	3000	15.5	32.5	18.4	55-21	2.0-0.15	355	72
MBS(Y)- 2736	2700	3600	18	38	18.4	65-24	2.0-0.15	400	89
MBS(Y)- 2740	2700	4000	20.6	43	18.4	80-28	2.0-0.15	480	95
MBS(Y)- 3040	3000	4000	25.7	54	17	90-34	2.0-0.15	630	114
MBS(Y)- 3230	3200	3000	21	44	16.4	73-28	2.0-0.15	500	116
MBS(Y)- 3245	3200	4500	32	67	16.4	120-44	2.0-0.15	800	132
MBS(Y)- 3642	3600	4200	38	79.5	15.8	120-50	2.0-0.15	1000	153
MBS(Y)- 3645	3600	4500	40.8	85	15.8	140-56	2.0-0.15	1000-1250	168
MBS(Y)- 3660	3600	6000	54	113	15.8	190-80	2.0-0.15	1400	198

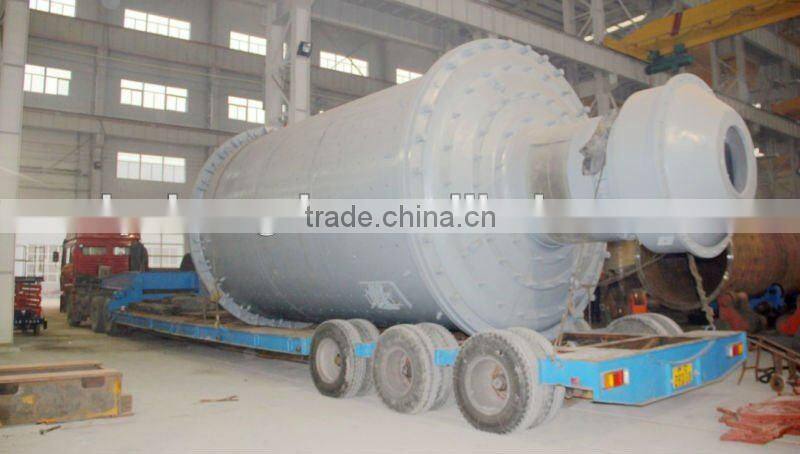

Manufacturing process of Ball Mill:
