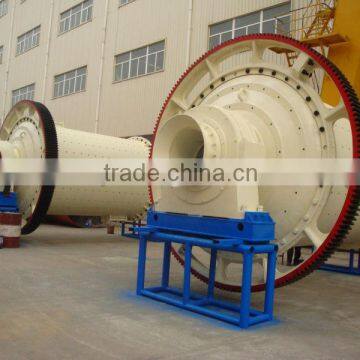

Cement Packing Plant Excellent Public Praises of Customers Ball Mill for Sale
US$ 20,000 - 120,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Function Machines Making Machines Ball Mill for SaleUS$ 20,000 - 120,000MOQ: 1 Set -
Vegetable Grinder Powder Pulverizer Ball Mill for SaleUS$ 20,000 - 120,000MOQ: 1 Set
-
Low Cost Manufacturing Plants After-sales Service Provided Grinding Machine Ball Mill TypeUS$ 20,000 - 120,000MOQ: 1 Set
-
Low Price Energy Saving Power Mill Ball Mill for SaleUS$ 20,000 - 120,000MOQ: 1 Set
-
1500*3000 Ball Mill for Mining /ball Mill for Gold OreUS$ 15,000 - 450,000MOQ: 1 Set
Condition
New
Type
Ball Mill
Motor Type
AC Motor
Power(W)
-
Capacity(t/h)
2.8-800
Place of Origin
Henan, China
Brand Name
Zhongde
Model Number
Variety
Dimension(L*W*H)
-
Weight
-
Certification
ISO CE BV certificate
Warranty
One Year, 1 year
After-sales Service Provided
Engineers available to service machinery overseas
Application:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-
resistance.
Technical parameters:
| Model | Diameter of cylinder(mm) | Length of cylinder(mm) | Effective volume(m3) | Max.ball loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(kw) |
| MQY-1530 | 1500 | 3000 | 4.5 | 8 | 30 | 6.3-2.8 | 0.3-0.074 | 90 |
| MQY-1845 | 1830 | 4500 | 10.5 | 19 | 26.8 | 15.5-6 | 0.3-0.074 | 180 |
| MQY-2130 | 2100 | 3000 | 9.2 | 16 | 23.8 | 18-5.8 | 0.3-0.074 | 210 |
| MQY-2145 | 2100 | 4500 | 13.8 | 25 | 23.8 | 25-8 | 0.3-0.074 | 280 |
| MQY-2245 | 2200 | 4500 | 15.2 | 28 | 21.3 | 26.8-8.5 | 0.3-0.074 | 280 |
| MQY-2436 | 2400 | 3600 | 14 | 26 | 21.3 | 33.5-8.8 | 0.3-0.074 | 280 |
| MQY-2460 | 2400 | 6000 | 24 | 44 | 21.7 | 56-14.5 | 0.3-0.074 | 480 |
| MQY-2736 | 2700 | 3600 | 18 | 33 | 20.7 | 54-11.7 | 0.3-0.074 | 400 |
| MQY-2760 | 2700 | 6000 | 31 | 57 | 20.6 | 90-19.5 | 0.3-0.074 | 630 |
| MQY-3040 | 3000 | 4000 | 25.7 | 47 | 19 | 78-16.5 | 0.3-0.074 | 500 |
| MQY-3254 | 3200 | 5400 | 38 | 73 | 18.2 | 114-25.9 | 0.3-0.074 | 800 |
| MQY-3270 | 3200 | 7000 | 50.6 | 93 | 18.2 | 148-30.2 | 0.3-0.074 | 1250 |
| MQY-3645 | 3600 | 4500 | 40.8 | 75 | 18 | 136-24.3 | 0.3-0.074 | 1000 |
| MQY-3685 | 3600 | 8500 | 79 | 131 | 18 | 256-45.8 | 0.3-0.074 | 1800 |
| MQY-4060 | 4000 | 6000 | 70 | 126 | 16.9 | 226-40.5 | 0.3-0.074 | 1500 |
| MQY-4361 | 4270 | 6100 | 80 | 144 | 15.7 | 258-46 | 0.3-0.074 | 1850 |
| MQY-4564 | 4500 | 6400 | 95 | 172 | 15.6 | 306-54 | 0.3-0.074 | 2000 |
| MQY-5064 | 5000 | 6400 | 120 | 216 | 14.4 | 386-68 | 0.3-0.074 | 2600 |
| MQY-5585 | 5500 | 8500 | 187 | 338 | 13.8 | 615-108 | 0.3-0.074 | 4500 |
Manufacture process of Ball Mill:
