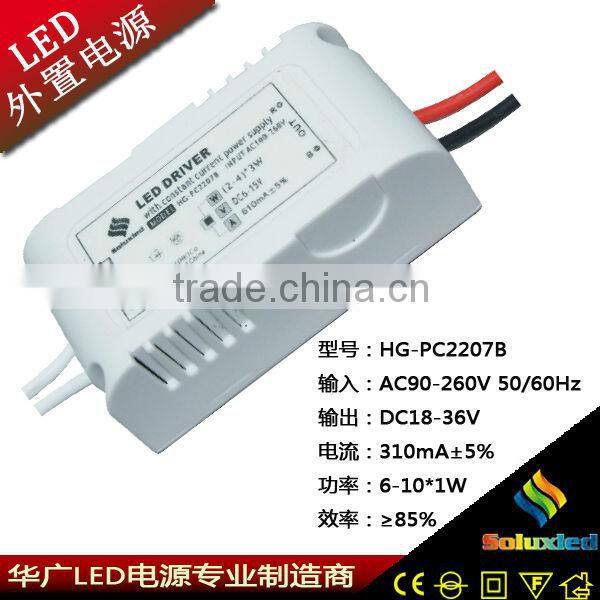

Soluxled PC box led driver 2-4*3W constant current power supply
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
- ACREL ADW300W Wireless Power Monitor Meter Support Modbus Protocol For Power Consumption Monitoring Din Rail Three Phase
- ACREL ADW300W-4GHW Din Rail Three Phase 4G Wireless Power Monitor Meter Support Modbus Protocol For Power Consumption Monitoring
- ADW300W--WF wireless metering instruments optional communication modes external split core CT LCD display power monitoring
- Acrel ADW300-4GHW Din rail Wireless smart energy meter Optional 4G 2G WiFi NB-IoT LoRa RS485 MODBUS-RTU three phase
- Acrel intelligent WF Wireless smart energy meter ADW300-WF three phase din rail with CE certificate for building factory grids
- Acrel ADW300W/C equipped with 3 split core CTS wireless smart energy meter Convenient to collect and manage electricity
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Soluxled | Model Number: | HG-PC2207B |
Input Voltage: | AC90-260V | Output Voltage: | 10-18V | Output Power: | 2-4*3W |
Output Frequency: | 50HZ | Output Current: | 620mA±5% |
Product Description
Specifications
1.Size:58*30*23MM2.Input:AC90-260V
3.Output:10-18v,2-4*3w,620mA
4.BV and CE
5.2 Years Warranty
Soluxled PC box led driver 2-4*3W constant current power supply
Product Information
Output Voltage | 18-36V |
Output Watt | 6-10*1W |
Output Current | 310mA±5% |
Output Voltage | 10-18V |
Output Watt | 2-4*3W |
Output Current | 620mA±5% |
Type | Constant Current |
Input Voltage | AC90-260V |
Output Ripple | 2Vp-p |
Frequency | 47-63Hz |
Efficiency | 85% |
PF | ≤0.65 |
Temperature | -25°C~+65°C |
Modulation | PMW |
Insulation | Yes |
MOQ | 1 pcs |
Warranty | 2 Years |
Size | 58*30*23MM |
Weight | |
Waterproof level: |
Product Picture
Certificate
Quality Guarantee
1.The warranty period is 2 years.
2. If the products have any question during the time, we can fix it or change the same to you.
3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Storage
1. Keep Dry, don’t shock
2. Storage in below 35°C, humidity less than 75% environment
Tips
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3. Please refer to the instruction manual before use.
4. If not sure how to use the product, please contact us before use.
Protection
Short circuit / over current / over voltage/ Over load/ Over temperature
Payment
Packing
Shipping
Production Process
About Us
Feedback
Any other requirements,please do let me know, because there are other kinds of LED Driver in our company. In addition, we can design the product according to your requirement.
Waiting for your kind inquiry!
