Specifications
1. Mounted on a trailer.2. Its max. depth is 600m.
3. It can drill various soft and hard rock.
4. BV & SGS certificate.

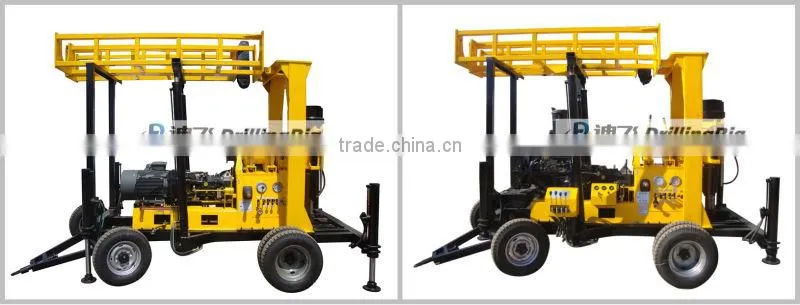

600m core drilling rig for mineral exploration--XY-600F
Brief Introduce
XY-600F is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Attracting features
1. It can move.
Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, crawler.
3. Hydraulic control system
With integrative drilling tower, supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. Operation is extremely convenient, saving time and labor effort, creat max. benefit for the user.
4. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
5. Spare parts
We provide factory cost accessory all year round.
6. Power
Diesel engine. Independent Mud Pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.
Specification
Drilling depth |
600m |
Maximum borehole caliber |
500mm |
Minimum borehole caliber |
75mm |
Diameter of Drill pipe |
42, 50, 60, 73mm |
Drilling angle |
90°~75° |
Weight(Not include power) |
1480kg |
Unity machine dimension |
2500*950*1750mm |
Motor and diesel engine type
Package and Delivery
Company Certificate
Defy tips:
How to choose a suitable machine?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you recommend suitable machine. If you have special demands, please tell us in advance.
