Specifications
XY-200C Mining Blast Hole Drilling Rig for Sale1. diesel engine
2. self propelled
3. integrated drill tower
BV,SGS

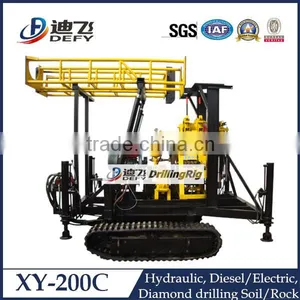

XY-200C Crawler Mounted Mining Blast Hole Drilling Rig for Sale

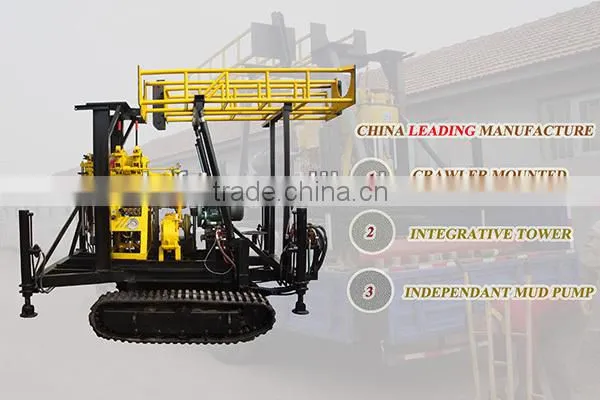

I. General Description of XY-200C blast hole drilling rig
(1) With integrative drilling tower, supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower, operation is extremely convenient, saving time and labor effort,create maximum benefit for the user.
(2) The chassis uses CRAWLER, achieving rapid turnarounds, very convenient.
(3)Chassis have four high strength thread legs (or hydraulic legs) ,quick and convenient to install, while working to support reliable stability.
(4) Uses the electric-start diesel engine, greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.
(5) The machine is equipped with a complete set of independent BW - 160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.
(6) 40 years experience with exquisite manufacturing, professional solutions, excellent teams.
II. Technical Parameters
1. Main parameter | ||
Drilling depth |
200m |
|
Maximum borehole caliber |
400mm |
|
Minimum borehole caliber |
75mm |
|
Weight(Not include power) |
810kg |
|
Unity machine dimension |
2750*950*1600mm |
|
2. Vertical Spindle |
|
|
Spindle rotating speed |
64,128,287,557r/min |
|
Spindle stroke |
450mm |
|
3. Hoist |
|
|
Max. single line lifting capacity |
1600kgf |
|
Reel lifting speed |
17,35,75,151m/s |
|
4. Mud pump |
|
|
Type |
BW-160 |
|
Type |
Horizontal Single Cylinder with 2 purpose |
|
5. Power |
|
|
Diesel engine |
22HP |
|
Electric |
15KW |
|
6. Drilling tower |
|
|
Type |
Integrated on drilling rig |
|
Control system |
Hydraulic |
|
7. Trailer chassis |
|
|
Type |
Rubber crawler |
|
Support legs |
Mechanical or hydraulic type |
|
Sales Terms:
Payment Terms |
T/T. L/C, Western Union |
Shipping Terms |
EXW, FOB, CIF |
Delivery Date |
10 working days |
Certificate of Origin |
For Free |
Warranty |
1 year |
Remarks:
Our engineer will help to create a complete set of drilling rig and drilling tools, specially according to your project. For more details, please kindly send us an inquiry or contact our sales people directly by instant messenger. Thank you! ^_^
If you are searching drilling rig for mining blast hole, please don't hesitate to contact us. Our professional engineers will give you suggest on model choice and drilling tools selection, ensuring you can use machine directly and conveniently!
